8361Si11.05

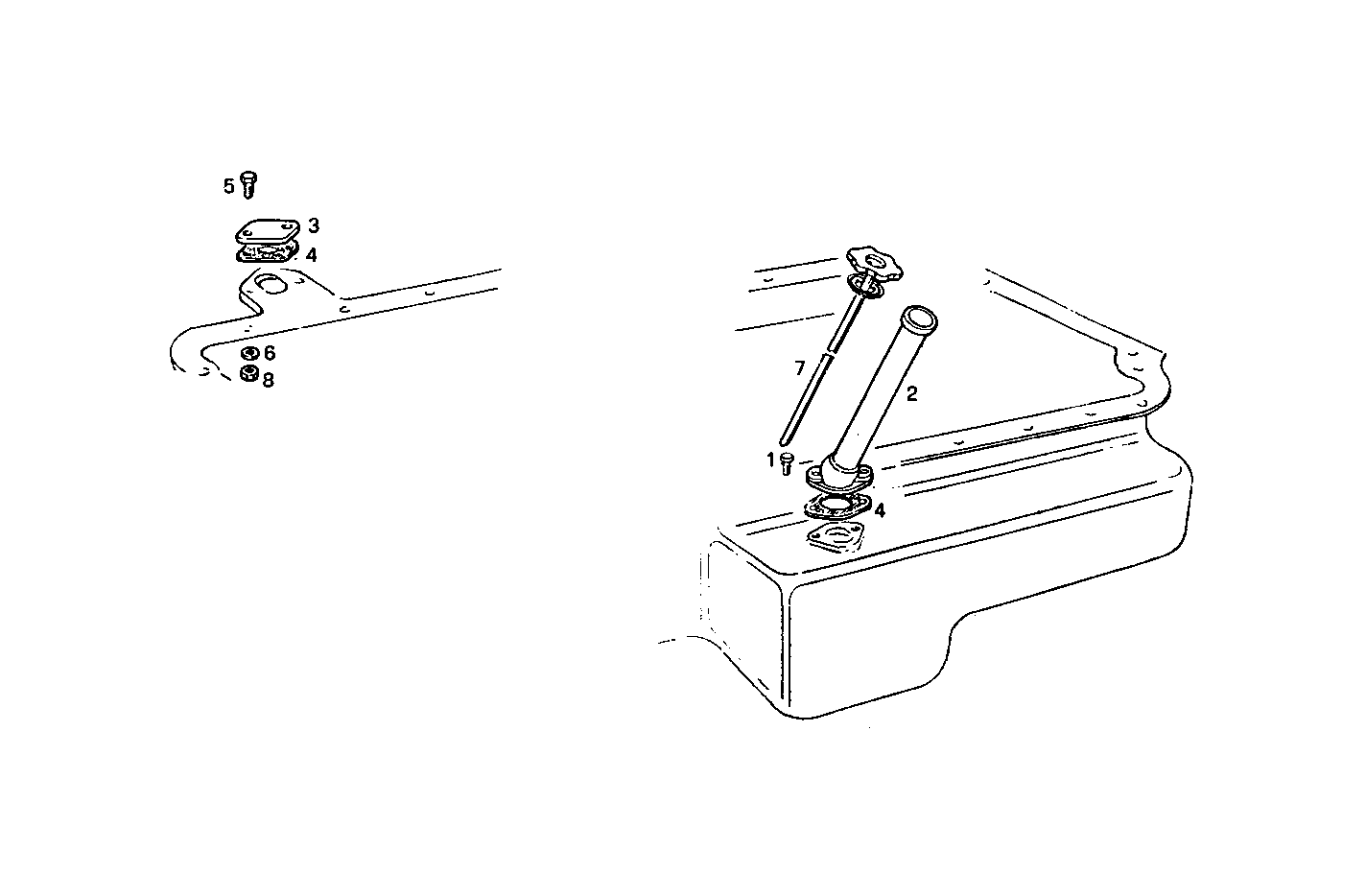

A41000004 SHORT OIL DIPSTICK LEFT SIDE
| Item | Part number | Description |
|---|---|---|
| 1 | 14306321 | SCREW |
| 2 | 8110388 | OIL LINE |
| 3 | 4735248 | COVER |
| 4 | 4723428 | GASKET |
| 5 | 16625734 | HEXAGON BOLT M8X35 |
| 6 | 11193871 | WASHER Ø8X16X1,4 MM |
| 7 | 8110389 | OIL DIPSTICK |
| 8 | 17037931 | HEXAGON NUT M8X1,25 |
