8361SM21.00

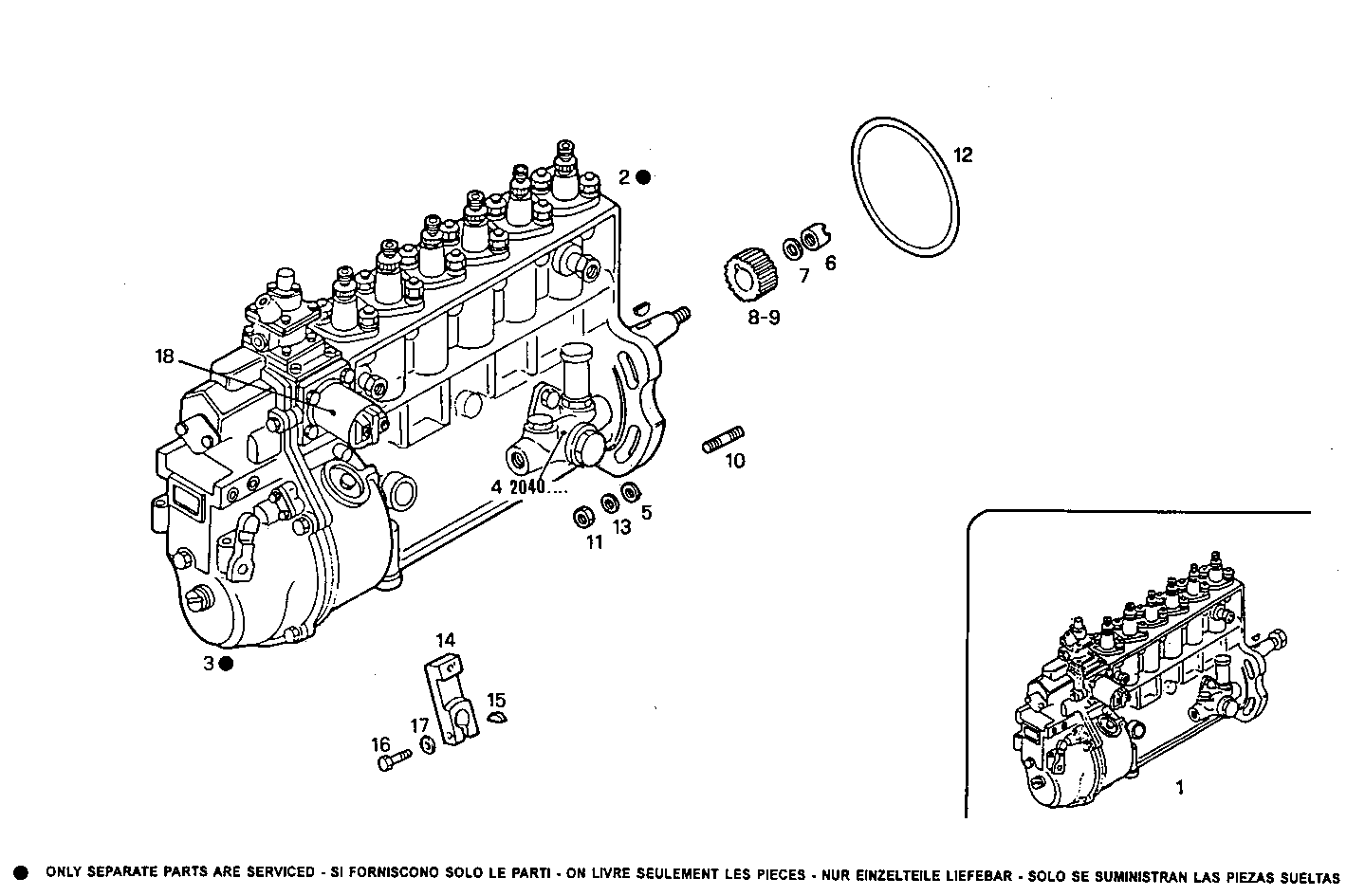

1400.096 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8012936 | INLINE INJECT.PUMP ASSY BOSCH |
| 4 | 8092471 | FUEL PUMP ASSY BOSCH |
| 5 | 759850 | WASHER Ø10X21X2 MM |
| 6 | 4750524 | NUT |
| 7 | 4750525 | WASHER |
| 8 | 4816287 | BUSH 156Ø40' |
| 9 | 8109115 | BUSH 154ø |
| 10 | 13449821 | STUD M10X1,25X15 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 42492884 | O-RING |
| 13 | 17090274 | WASHER Ø10X20 MM |
| 14 | 8108826 | LEVER |
| 15 | 8101048 | KEY 3X5X12,5 |
| 16 | 16602124 | SCREW M5X16 MM |
| 17 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
| 18 | 79033446 | SOLENOID |
