8361SM21.00

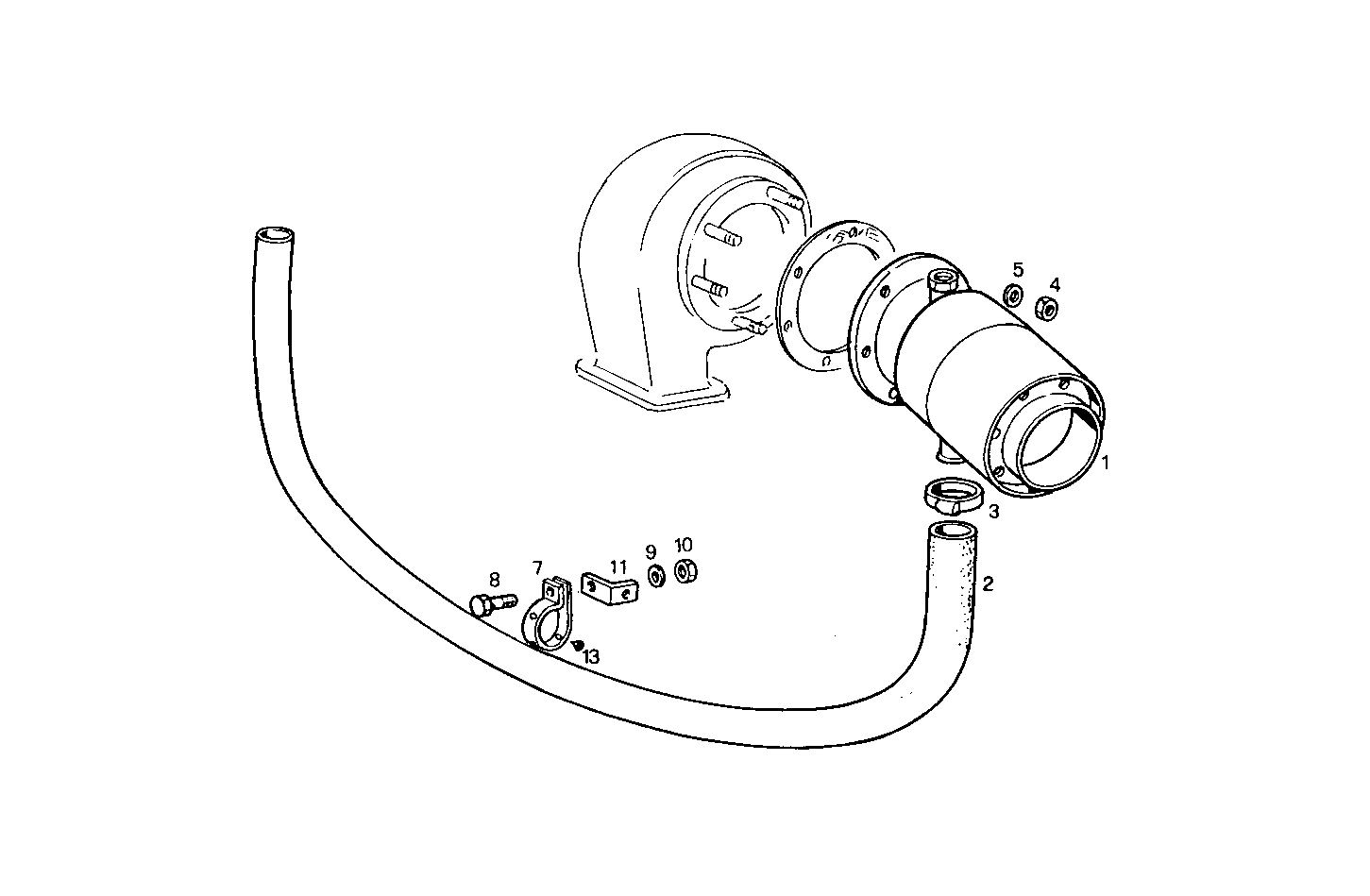

A40050006 GAS-WATER MIXER WITH STERN OUTLET
| Item | Part number | Description |
|---|---|---|
| 1 | 8105594 | EXHAUST COOL. ELBOW |
| 2 | 8102457 | WATER HOSE |
| 3 | 12177090 | CLIP Ø32-52 MM |
| 4 | 17157221 | NUT M10X1,25 |
| 5 | 17095114 | WASHER Ø10X21 MM |
| 7 | 8100668 | CLIP |
| 8 | 16043121 | HEXAGON BOLT M8X14 MM |
| 9 | 11193871 | WASHER Ø8X16X1,4 MM |
| 10 | 16100811 | HEXAGON NUT M8 |
| 11 | 4932164 | RETAINER |
| 13 | 4568427 | RUBBER PAD |
