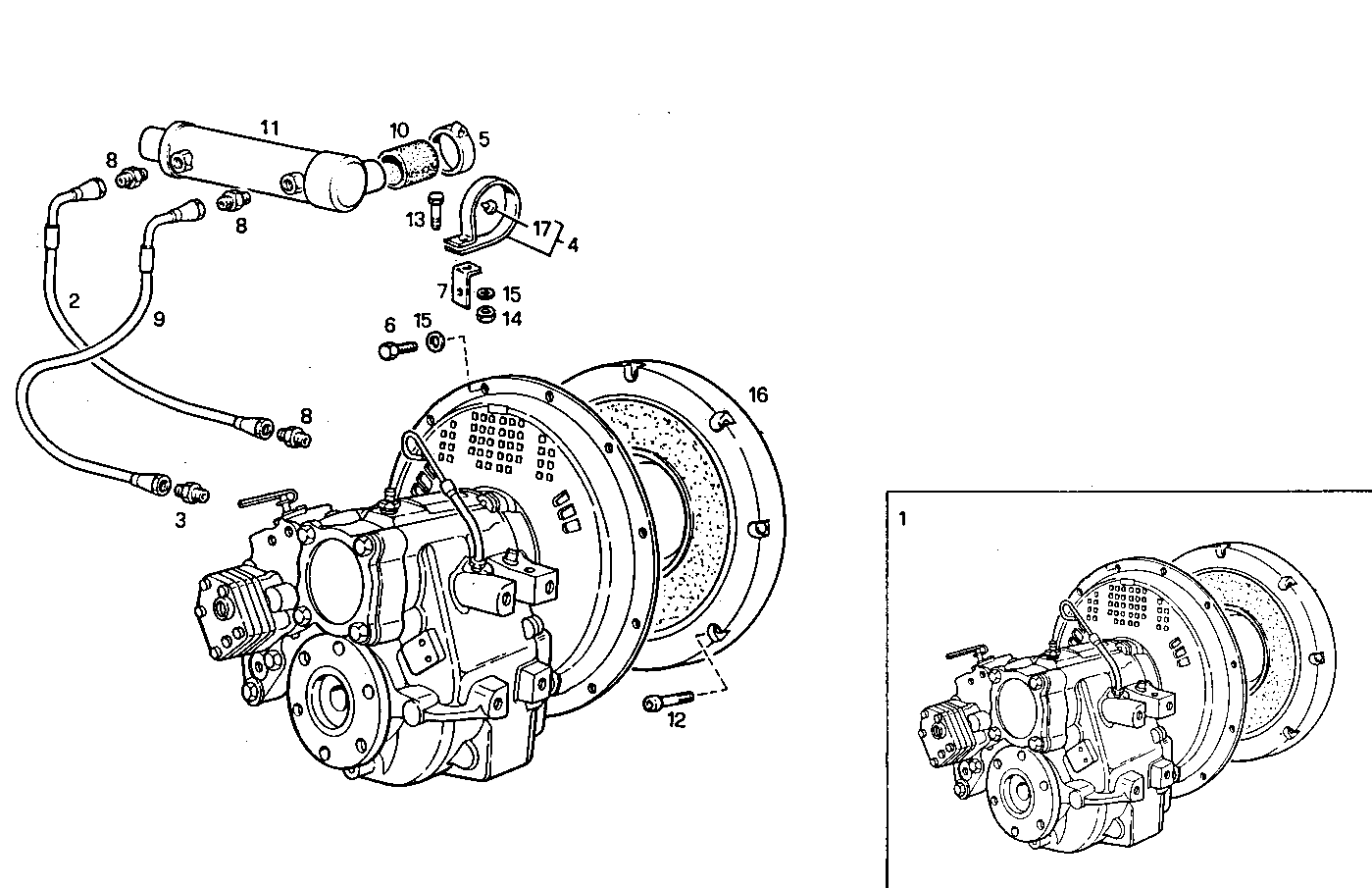

A51610003 MARINE GEAR TWIN DISC MG 5061 - ratio 2.43:1

Iveco/FPT MARINE GEAR TWIN DISC MG 5061

Item Part number Description
1 8010162 MARINE GEAR 2,43:1
2 8105620 HOSE
3 8101161 PIPE SOCKET
4 8013591 CLIP ASSY [up to 06-93]
5 17764993 CLIP Ø50/70 MM
6 11306921 SCREW M10X1,25X30
7 8103023 RETAINER
8 4935465 PIPE SOCKET
9 8105619 HOSE
10 17742687 RUBBER SLEEVE
11 4919188 MARINE GEAR OIL HEAT EXCH ASSY
12 14308021 SCREW M10X1,25X55
13 15004021 HEXAGON BOLT M10X1,25X25 MM
14 17038221 HEXAGON NUT M10
15 17090274 WASHER Ø10X20 MM
16 8007900 FLEXIBLE COUPLING
17 4568427 RUBBER PAD
