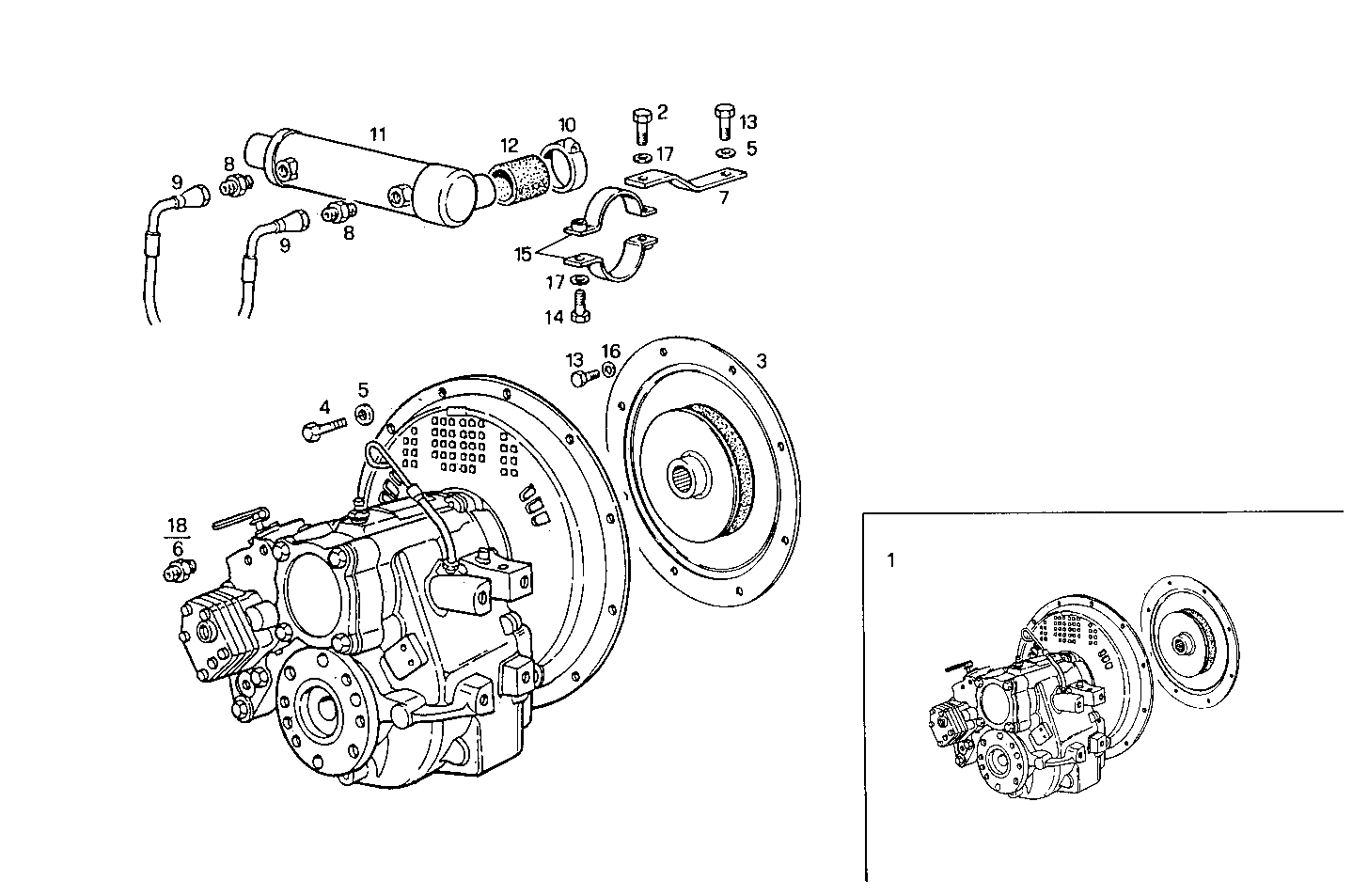

| Item |
Part number |
Description |
|
1 |
8012976 |
MARINE GEAR 2,04:1 |
|
2 |
16605724 |
SCREW M8X1,25X30 |
|
3 |
8014086 |
FLEXIBLE COUPLING |
|
4 |
11306921 |
SCREW M10X1,25X30 |
|
5 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
6 |
8101161 |
PIPE SOCKET |
|
7 |
8100407 |
RETAINER |
|
8 |
8101073 |
PIPE SOCKET |
|
9 |
8105619 |
HOSE |
|
10 |
17764783 |
RUBBER SLEEVE |
|
11 |
8016304 |
OIL/WATER HEAT EXCHANGER ASSY |
|
12 |
8016662 |
RUBBER SLEEVE |
|
13 |
15970721 |
SCREW M10X1,25X25 |
|
14 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
15 |
5116798 |
CLIP ASSY [from 06-93] |
|
16 |
17494934 |
WASHER Ø10X18,1X2,2 MM |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
4935465 |
PIPE SOCKET |
