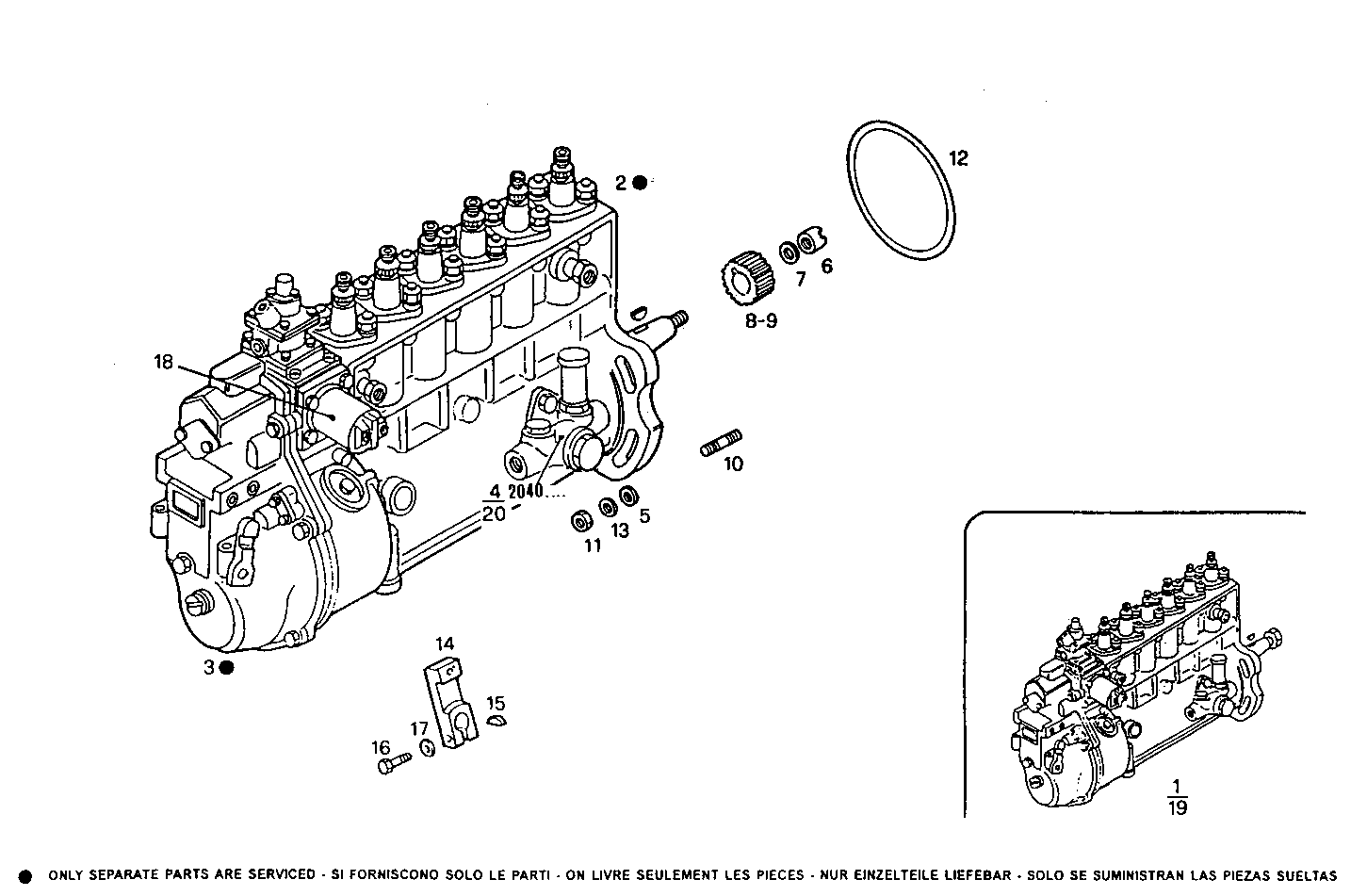

| Item |
Part number |
Description |
|
1 |
8012936 |
INLINE INJECT.PUMP ASSY BOSCH |
|
4 |
8092471 |
FUEL PUMP ASSY BOSCH |
|
5 |
759850 |
WASHER Ø10X21X2 MM |
|
6 |
4750524 |
NUT |
|
7 |
4750525 |
WASHER |
|
8 |
4816287 |
BUSH 156Ø40' |
|
9 |
8109115 |
BUSH 154ø |
|
10 |
13449821 |
STUD M10X1,25X15 MM |
|
11 |
17038221 |
HEXAGON NUT M10 |
|
12 |
42492884 |
O-RING |
|
13 |
17090274 |
WASHER Ø10X20 MM |
|
14 |
8108826 |
LEVER |
|
15 |
8101048 |
KEY 3X5X12,5 |
|
16 |
16602124 |
SCREW M5X16 MM |
|
17 |
17494634 |
SPRING WASHER Ø5,1X9,2 MM |
|
18 |
79033446 |
SOLENOID |
|
19 |
8109517 |
INLINE INJECT.PUMP ASSY W.ALTECNA |
|
20 |
8121438 |
FUEL PUMP ASSY BOSCH |
