8361SM21.01

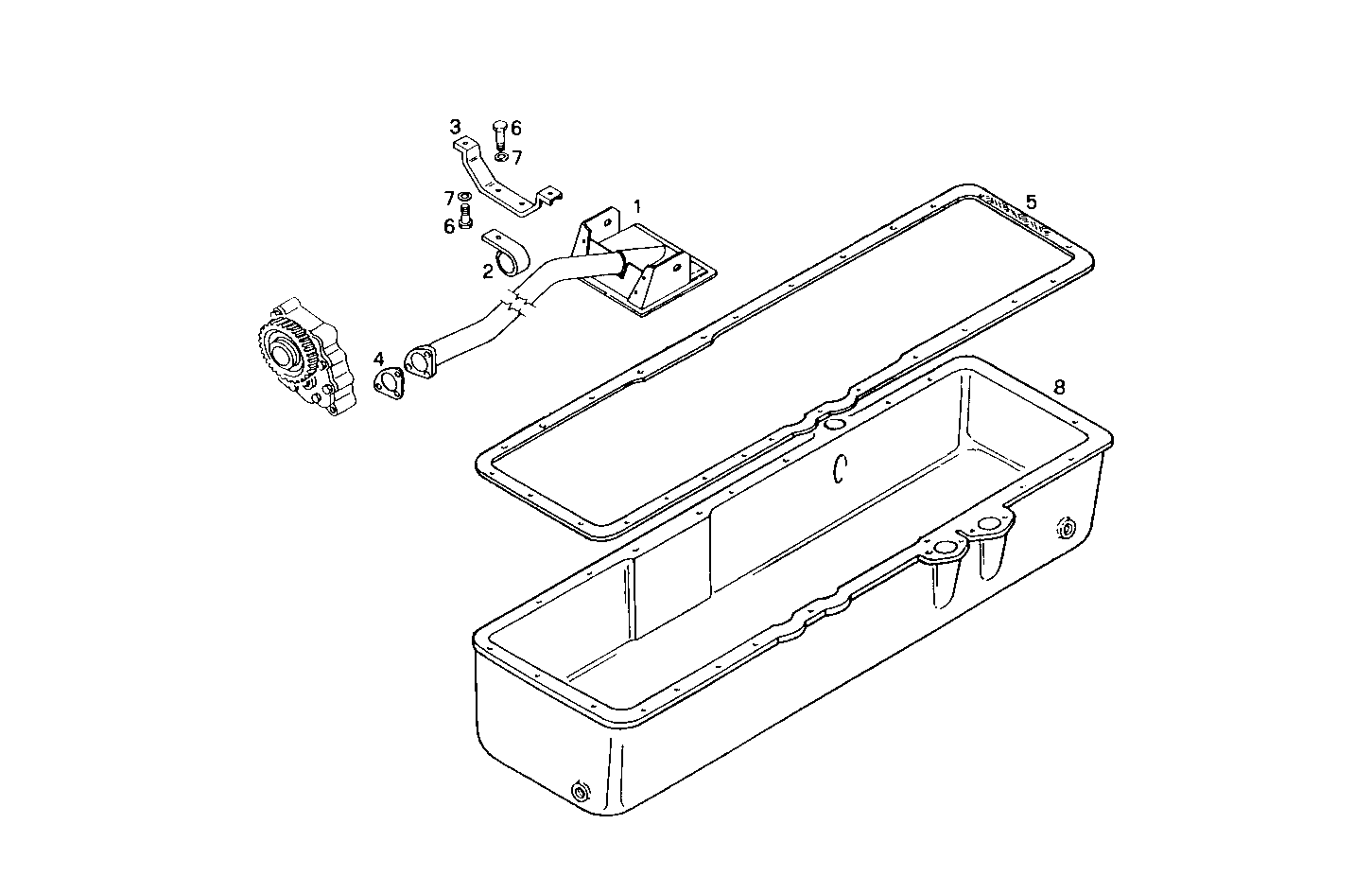

A01010002 OIL SUMP - max longitudinal inclination 18°
| Item | Part number | Description |
|---|---|---|
| 1 | 4741491 | SUCTION STRAINER |
| 2 | 4505903 | CLIP |
| 3 | 4732724 | RETAINER |
| 4 | 500300290 | FLAT ENGINE GASKET |
| 5 | 98424771 | OIL SUMP GASKET |
| 6 | 16605424 | SCREW M8X16 MM (8.8) |
| 7 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 8 | 4732358 | MARINE ENGINE OIL SUMP |
