8361SM21.01

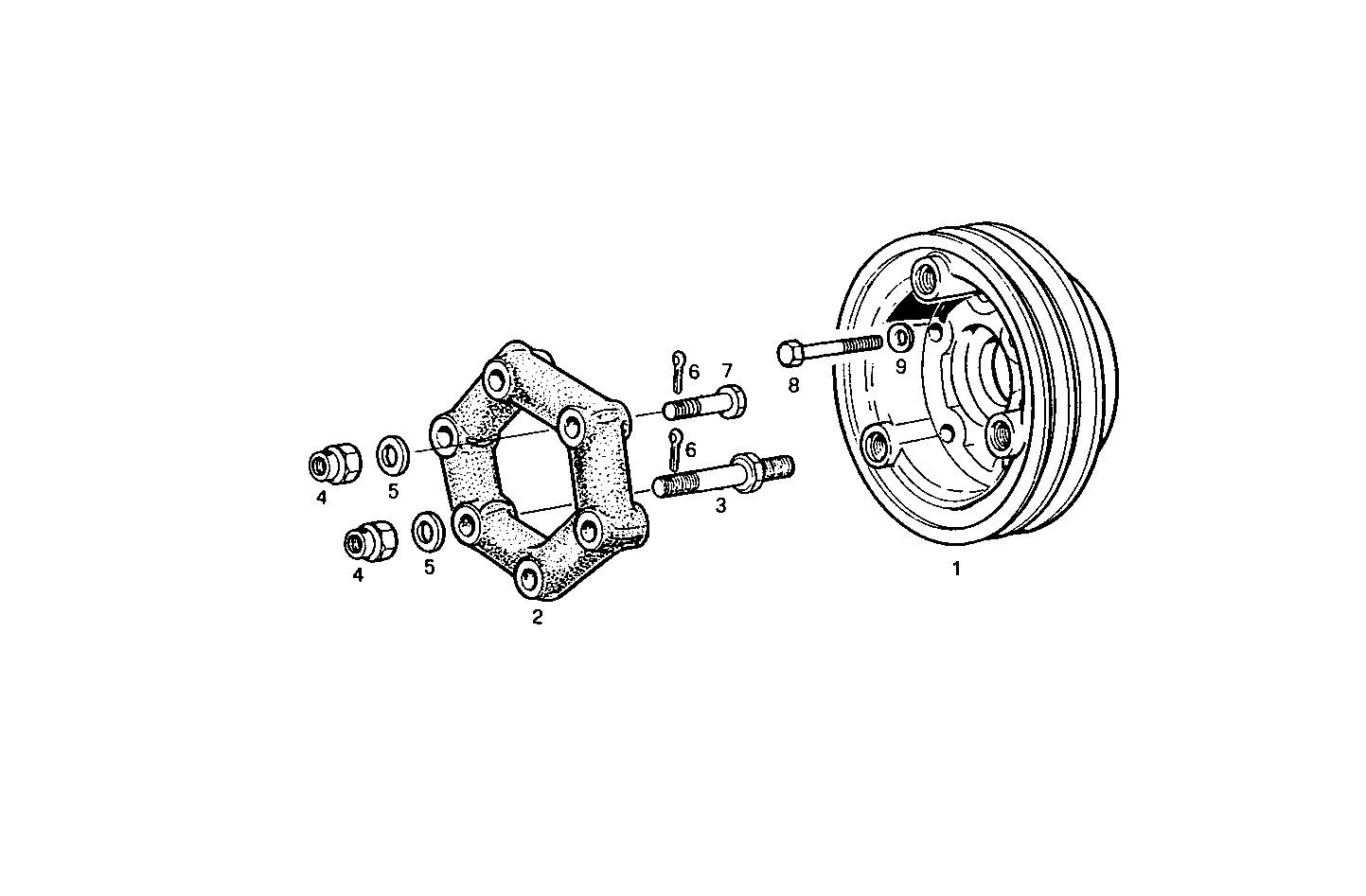

A26060001 PULLEY ON ENGINE AXIS - with additional groves with flexible coupling

Iveco/FPT PULLEY ON ENGINE AXIS

Item Part number Description
1 4936583 PULLEY
2 4927373 FLEXIBLE COUPLING
3 4927437 STUD
4 10792321 CASTLE NUT M14X1,5
5 10520101 WASHER Ø14X24 MM
6 10734601 SPLIT PIN Ø3,2 MM
7 4927438 SCREW
8 15971631 HEXAGON BOLT M10X1,25X90
9 11198371 SPRING WASHER Ø10X20 MM
