8361SM21.01A580

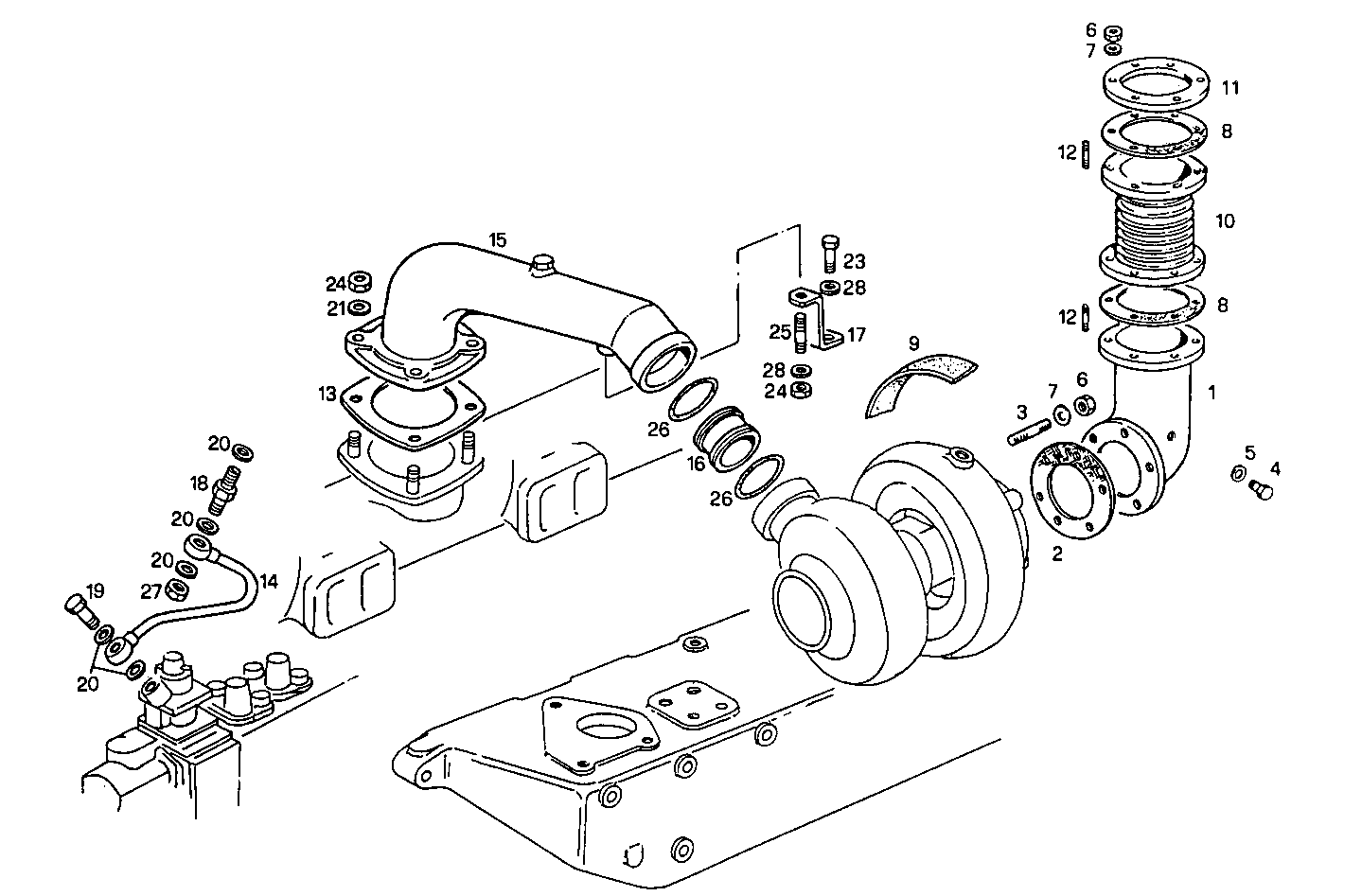

2420.012 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8109452 | EXHAUST ELBOW |
| 2 | 4772331 | SEAL GASKET |
| 3 | 13516821 | STUD M8X12X20 MM |
| 4 | 16992240 | THREADED PLUG M12X1,5 |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 17038221 | HEXAGON NUT M10 |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 8009600 | GASKET |
| 9 | 8101542 | PROTECTION |
| 10 | 8101671 | EXHAUST BELLOWS |
| 11 | 8103591 | FLANGE |
| 12 | 13449524 | STUD M10X1,25X15X25 |
| 13 | 98412100 | GASKET |
| 14 | 98427361 | AIR PIPE/DUCT |
| 15 | 8109359 | AIR MANIFOLD |
| 16 | 8109369 | AIR MANIFOLD |
| 17 | 8109518 | RETAINER |
| 18 | 10180217 | SWIVEL COUPLING |
| 19 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 21 | 11193879 | SPRING WASHER Ø8X16 MM |
| 23 | 16043421 | HEXAGON BOLT M8X20 MM |
| 24 | 16100811 | HEXAGON NUT M8 |
| 25 | 13517221 | STUD M8X12X30 MM |
| 26 | 14471581 | O-RING SP=5,33 MM |
| 27 | 10183217 | LOCK PLUG M12X1,5 |
| 28 | 11193871 | WASHER Ø8X16X1,4 MM |
