8361SRE10.00

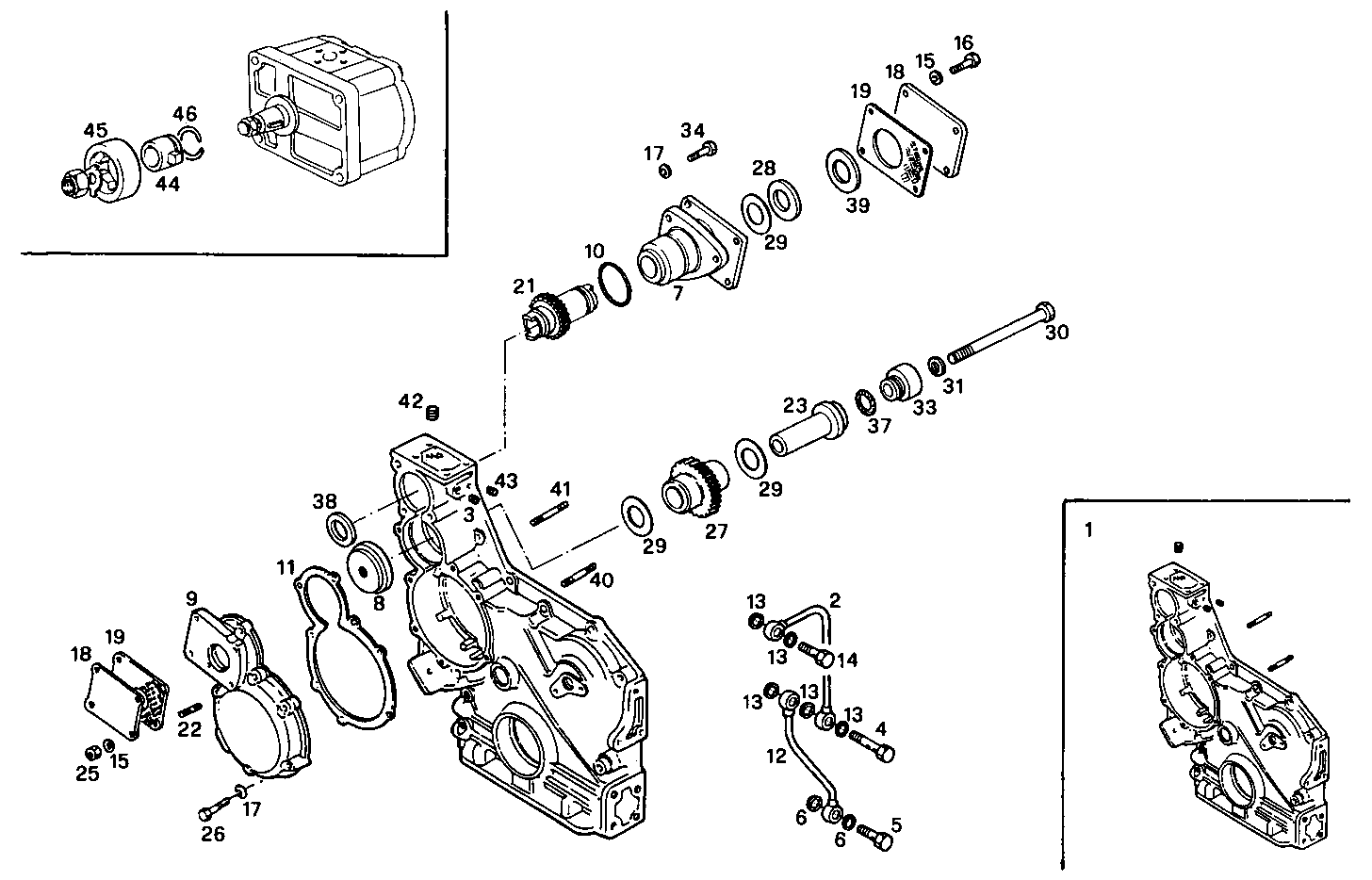

A09090001 ARRANGED FOR 2 HYDRAULIC PUMPS

Iveco/FPT ARRANGED FOR 2  HYDRAULIC PUMPS

Item Part number Description
1 8107926 COVER ASSY
2 4766747 OIL LINE
3 4560434 PLUG
4 4930504 SCREW CONNECTOR
5 4864080 SCREW CONNECTOR M10X1,25
6 4858606 GASKET Ø10X14X1 MM
7 4767038 SUPPORT
8 4766827 SUPPORT
9 4718711 COVER
10 14460181 O-RING SP=2,62 MM
11 4796117 GASKET
12 8012373 OIL LINE
13 4858607 WASHER Ø12X17 MM SP=1,5 MM
14 4864082 BANJO BOLT M12X1,5X25 MM
15 11197779 SPRING WASHER Ø6X12 MM
16 10902221 HEXAGON BOLT M6X16 MM
17 11193879 SPRING WASHER Ø8X16 MM
18 564530 COVER
19 4851385 FLAT ENGINE GASKET
21 4724168 SHAFT
22 4733825 STUD
23 4766736 PIN
25 15896211 HEXAGON NUT M6
26 16044121 HEXAGON BOLT M8X45 MM (8.8)
27 4766826 GEAR
28 4755621 RING
29 4667452 SUPPORT RING
30 11114121 HEXAGON BOLT M12X1,75X95 MM
31 98474306 WASHER Ø12X20 MM SP=1,9 MM
33 4766738 SPACING BAR
34 16043821 HEXAGON BOLT M8X30 MM
35 15971821 SCREW M10X1,25X100
36 15972021 HEXAGON BOLT M10X1,25X110 MM
37 14458281 O-RING Ø2,62X31,42 MM
38 4609538 CENTERING RING
39 4543246 CENTERING RING
40 12430121 STUD M8X20X45
41 12429821 STUD M8X20X30 MM
42 14323911 LOCK PLUG M10X1,25
43 10268350 LOCK PLUG M8X1,25
44 8011614 HUB
45 4621358 RING
46 13398376 CIRCLIP Ø24,2 MM
