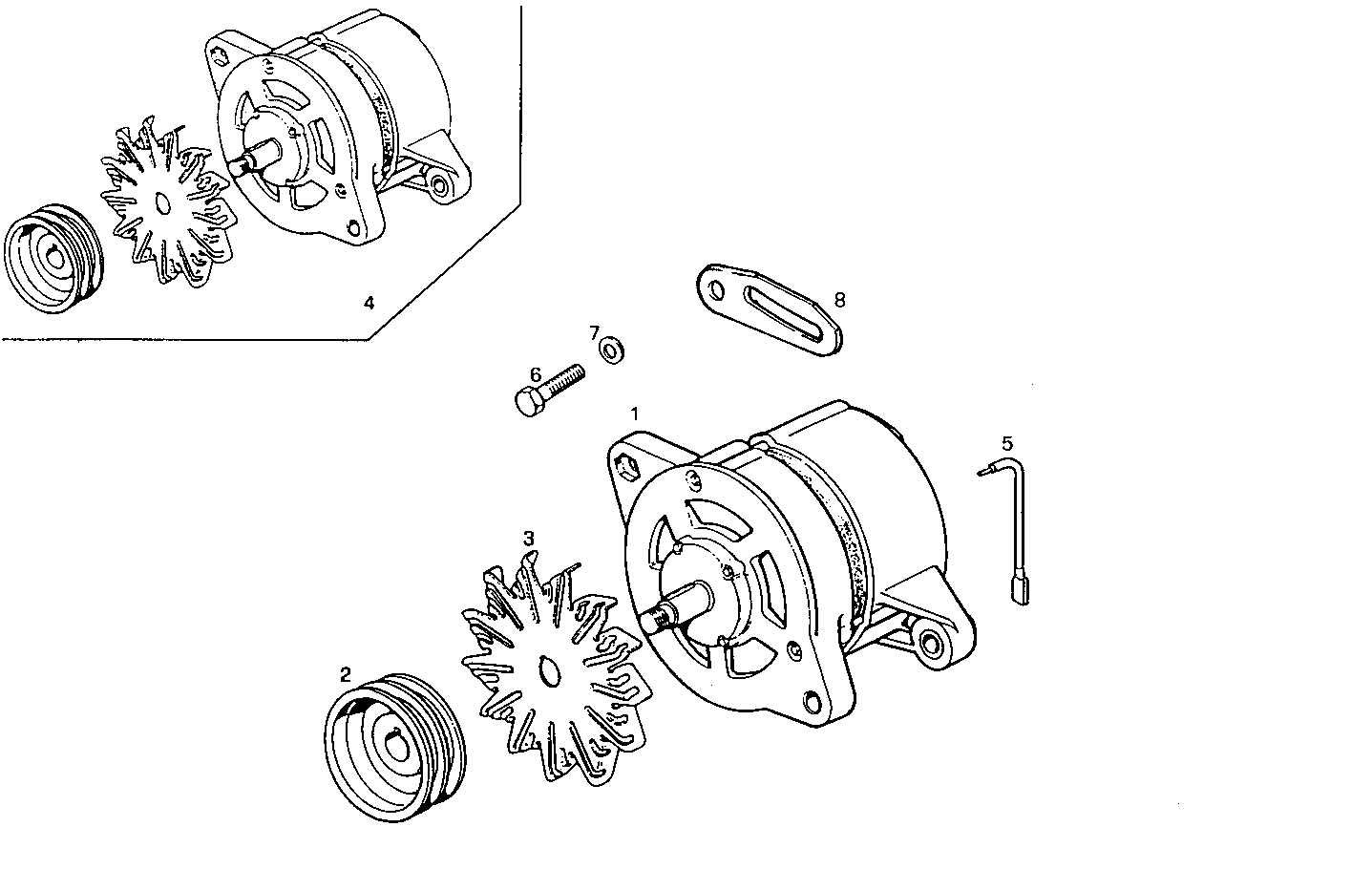

A14030006 SELF-REGULATED ALTERNATOR - 12V 85A (W)
| Item | Part number | Description |
|---|---|---|
| 1 | 99448466 | ALTERNATOR ASSY BOSCH |
| 2 | 8109713 | PULLEY |
| 3 | 4717026 | GENERATOR FAN MARELLI |
| 4 | 8020237 | ALTERNATOR ASSY BOSCH - 12V - 85A |
| 5 | 8105654 | WIRE/CABLE |
| 6 | 16605524 | HEXAGON BOLT M8X20 MM |
| 7 | 17089774 | SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
| 8 | 8100618 | BELT TENSIONER |
