8361SRE10.00

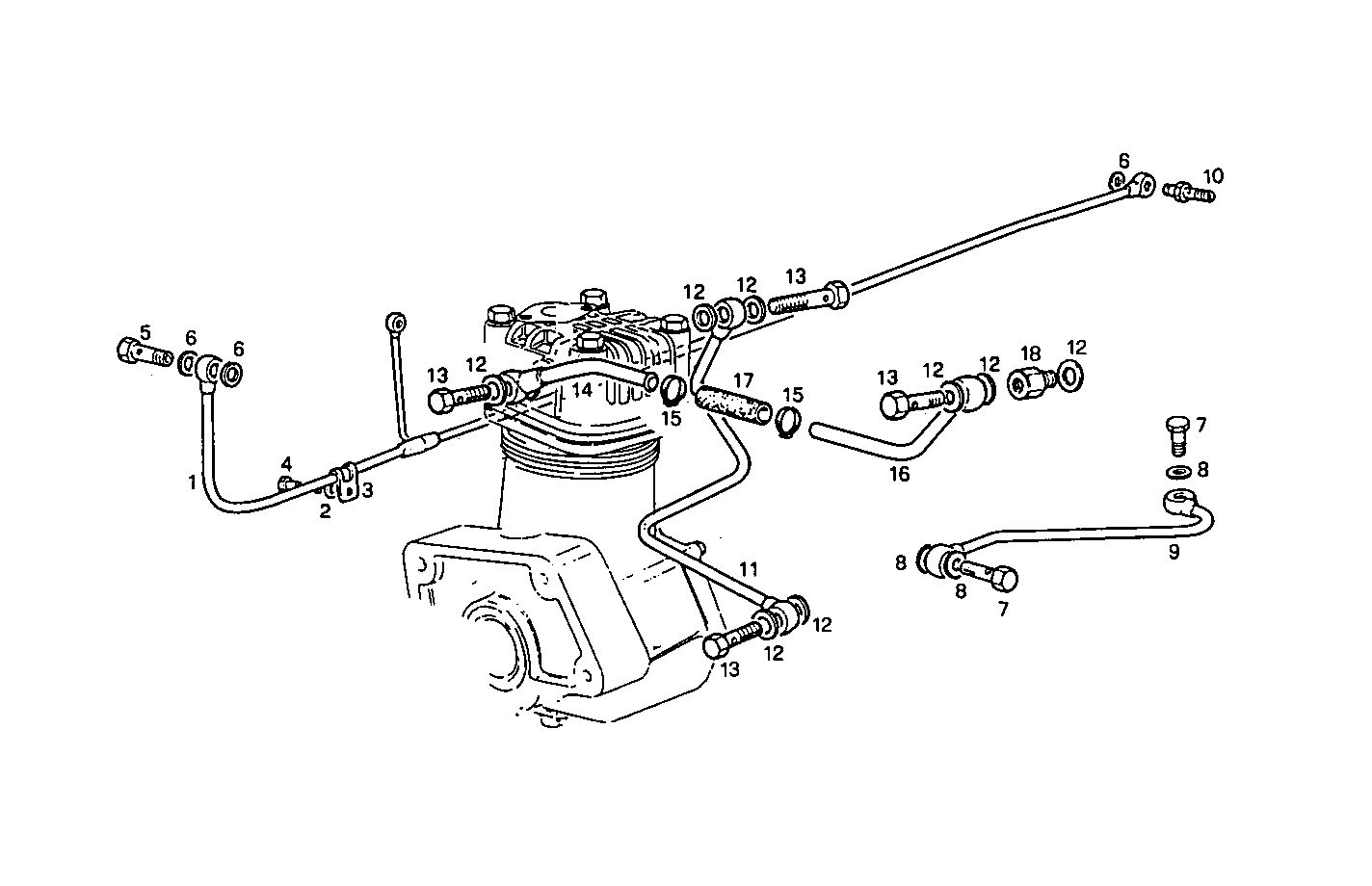

A18030012/01 AIR COMPRESSOR - 170cc MARELLI
| Item | Part number | Description |
|---|---|---|
| 1 | 8012380 | OIL LINE |
| 2 | 11907771 | WASHER |
| 3 | 10450090 | PIPE CLIP Ø8 MM |
| 4 | 10902121 | HEXAGON BOLT M6X14 MM |
| 5 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 6 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 7 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 8 | 4858606 | GASKET Ø10X14X1 MM |
| 9 | 4731129 | OIL LINE |
| 10 | 4930504 | SCREW CONNECTOR |
| 11 | 4715861 | WATER PIPE |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 4864084 | BANJO BOLT M16X1,5 |
| 14 | 8012514 | WATER PIPE |
| 15 | 12179590 | CLIP Ø14-24 MM |
| 16 | 8012515 | WATER PIPE |
| 17 | 12074286 | RUBBER SLEEVE |
| 18 | 8108754 | PIPE SOCKET |
