8361SRE10.00

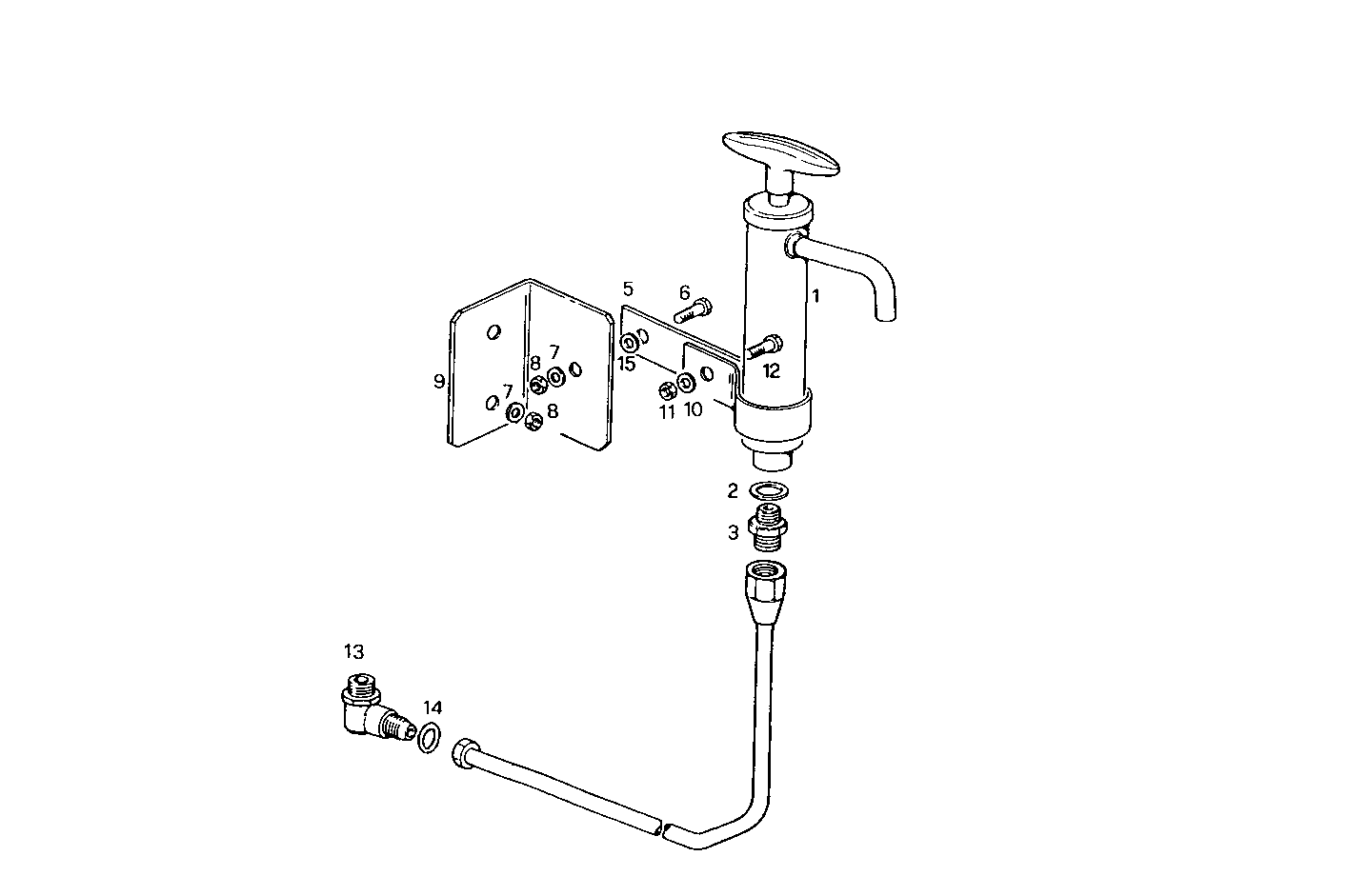

A49010010 OIL DRAIN PUMP - left side
| Item | Part number | Description |
|---|---|---|
| 1 | 8019921 | HAND PUMP |
| 2 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 3 | 16500311 | PIPE SOCKET M16X1,5/M18X1,5 |
| 5 | 4935081 | CLIP |
| 6 | 15970421 | HEXAGON BOLT M10X18 MM |
| 7 | 17090174 | SPRING WASHER Ø10X20 MM |
| 8 | 17038221 | HEXAGON NUT M10 |
| 9 | 4935079 | SUPPORT |
| 10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 16605424 | SCREW M8X16 MM (8.8) |
| 13 | 4928527 | PIPE SOCKET |
| 14 | 8024647 | GASKET Ø8 MM |
