8361SRE10.00A004

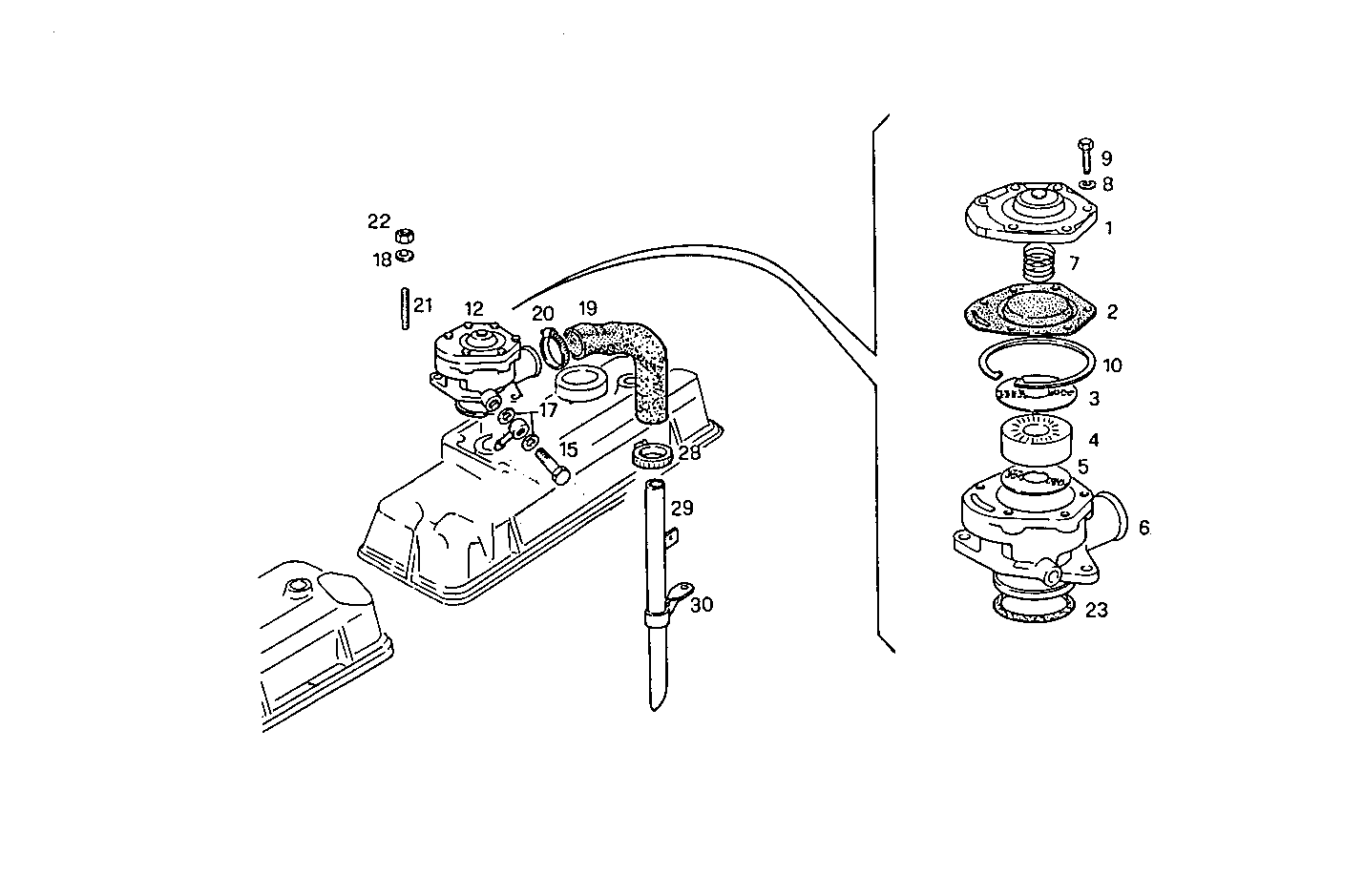

0450.122 ENGINE BREATHERS
| Item | Part number | Description |
|---|---|---|
| 1 | 4771075 | COVER |
| 2 | 4771078 | DIAPHRAGM |
| 3 | 4771080 | DISC |
| 4 | 4771079 | FILTER |
| 5 | 4771081 | DISC |
| 7 | 4812557 | SPRING |
| 8 | 17094714 | WASHER Ø6,4X12 MM |
| 9 | 10902811 | HEXAGON BOLT M6X30 MM |
| 10 | 11062176 | CIRCLIP Ø90,5 MM |
| 11 | 4671701 | SWIVEL COUPLING |
| 12 | 4816603 | BREATHER ASSY |
| 15 | 4864082 | BANJO BOLT M12X1,5X25 MM |
| 17 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 18 | 17090274 | WASHER Ø10X20 MM |
| 19 | 4605529 | RUBBER SLEEVE |
| 20 | 12172890 | CLIP |
| 21 | 13543321 | STUD M8X16X20 MM |
| 22 | 17037931 | HEXAGON NUT M8X1,25 |
| 23 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 28 | 17764792 | HOSE CLIP Ø32-50 MM |
| 29 | 8105979 | BREATHER PIPE |
| 30 | 4735644 | RETAINER |
