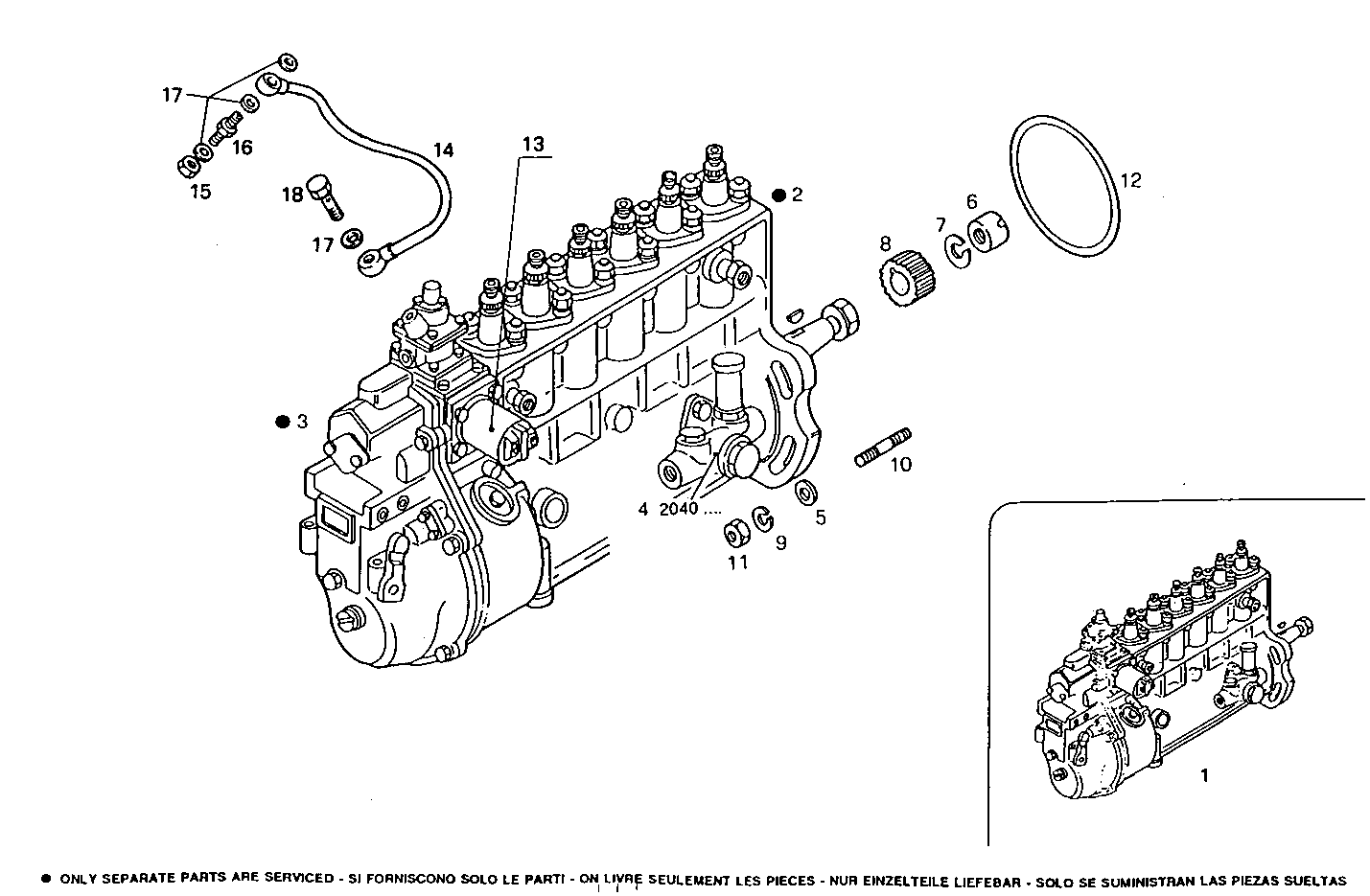

| Item |
Part number |
Description |
|
1 |
8014633 |
INLINE INJECT.PUMP ASSY BOSCH |
|
2 |
775660 |
INLINE INJECT.PUMP |
|
4 |
8092471 |
FUEL PUMP ASSY BOSCH |
|
5 |
759850 |
WASHER Ø10X21X2 MM |
|
6 |
4750524 |
NUT |
|
7 |
4750525 |
WASHER |
|
8 |
4816286 |
BUSH 158ø |
|
9 |
17090274 |
WASHER Ø10X20 MM |
|
10 |
13449824 |
STUD M10X1,25X15 MM |
|
11 |
17038221 |
HEXAGON NUT M10 |
|
12 |
17289281 |
O-RING Ø34,5 MM SP=3,53 MM |
|
13 |
42488293 |
SPRING |
|
14 |
98427361 |
AIR PIPE/DUCT |
|
15 |
10183217 |
LOCK PLUG M12X1,5 |
|
16 |
10180217 |
SWIVEL COUPLING |
|
17 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
18 |
4864081 |
SCREW CONNECTOR |
