8361SRE10.00A004

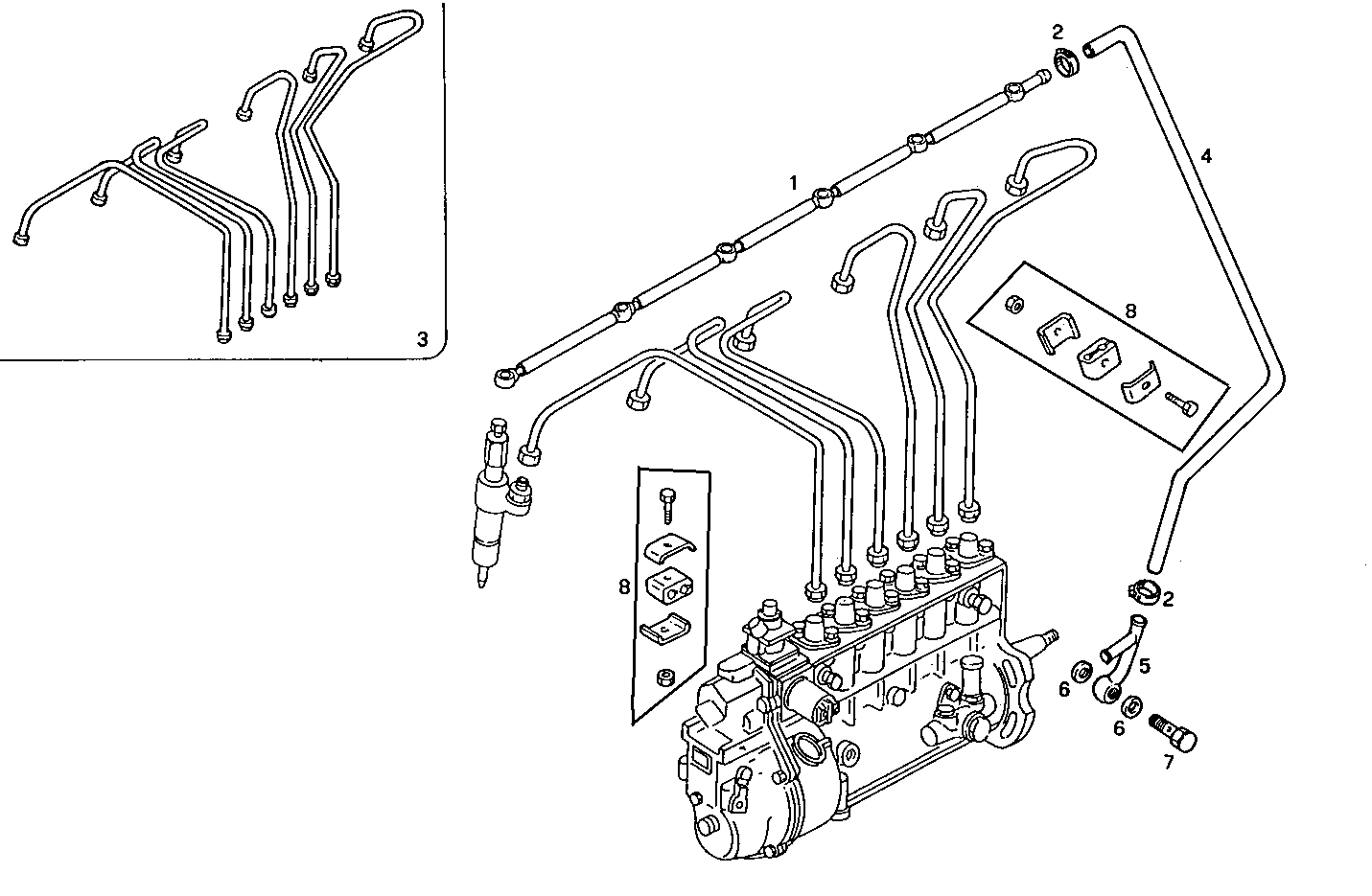

2020.101 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4756418 | FUEL LINE |
| 2 | 17764391 | CLIP Ø12/20 MM |
| 3 | 4806746 | INJECTION LINE SET |
| 4 | 4934253 | RUBBER SLEEVE L=500 MM |
| 5 | 8012659 | FUEL LINE |
| 6 | 98474308 | SEAL GASKET Ø14X22 MM |
| 7 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 8 | 4806611 | FASTENING BRACKET |
