8361SRE11.00

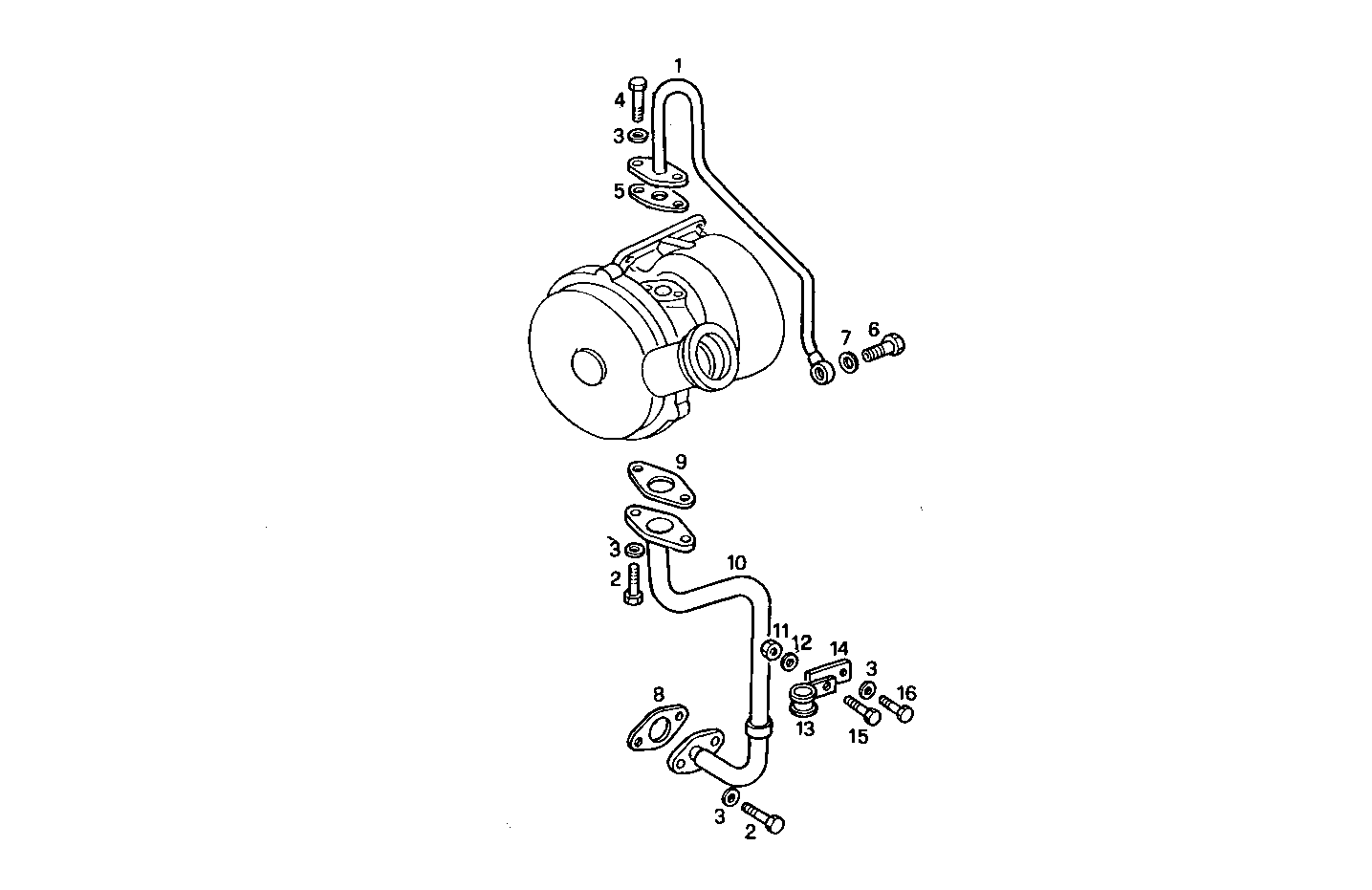

3010.071/02 LUBE OIL LINES

Iveco/FPT LUBE OIL LINES

Item Part number Description
1 8018424 OIL LINE
2 16605624 HEXAGON BOLT M8X25 MM (8.8)
3 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
4 16605824 HEXAGON BOLT M8X35 MM
5 98415922 FLAT ENGINE GASKET
6 4864084 BANJO BOLT M16X1,5
7 98474309 WASHER Ø16X24 MM SP=1,9 MM
8 98412509 FLAT ENGINE GASKET
9 98411814 FLAT ENGINE GASKET
10 98441262 OIL LINE
11 17037821 HEXAGON NUT M6X1
12 17088474 WASHER Ø6X12 MM
13 98495111 RETAINER
14 98495109 FASTENING BRACKET
15 16603624 HEXAGON BOLT M6X16 MM (8.8)
16 16605424 SCREW M8X16 MM (8.8)
