8361SRE11.00

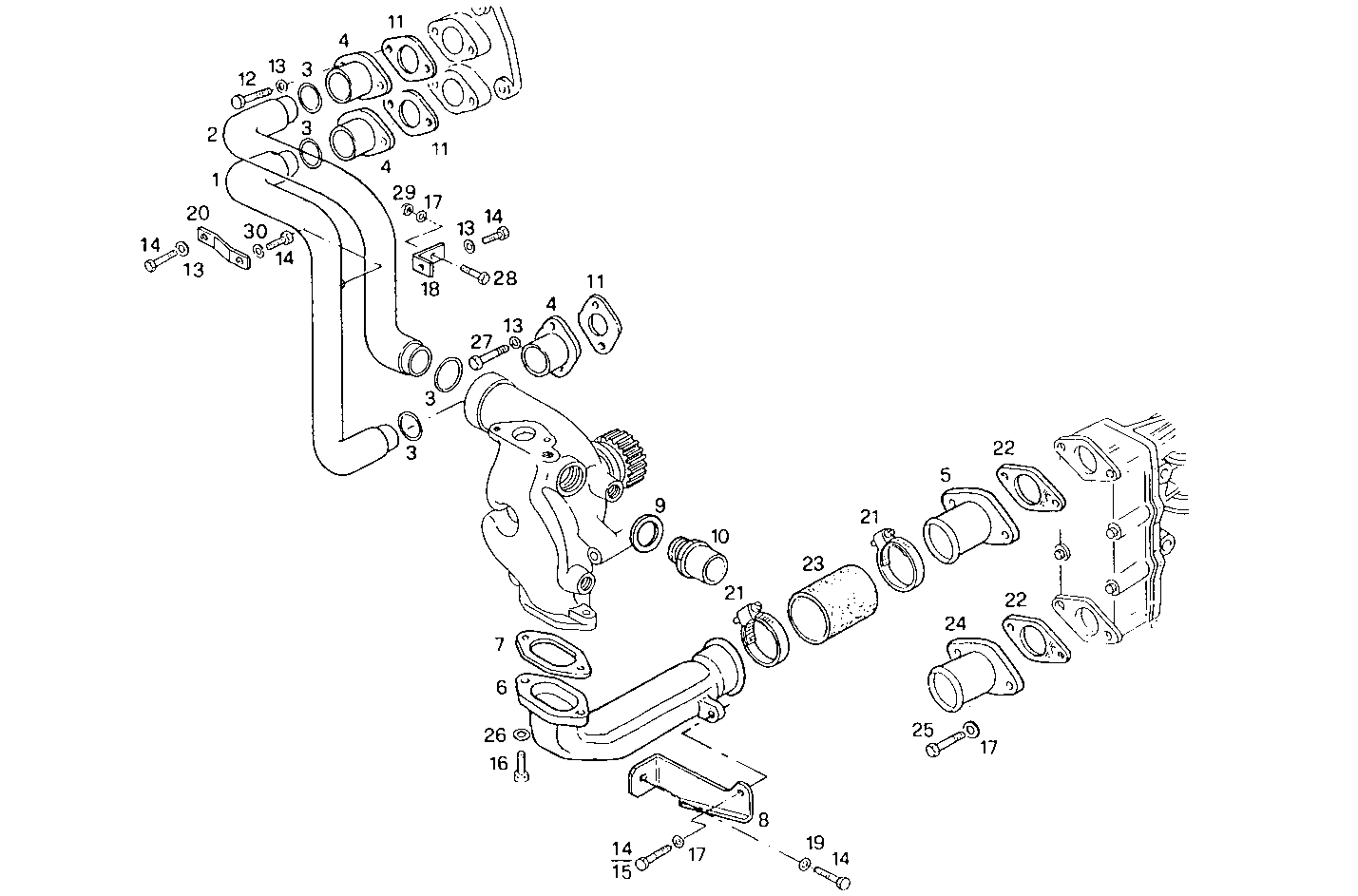

3210.152 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8017656 WATER PIPE
2 8017657 WATER PIPE
3 98465115 O-RING
4 8017666 WATER PIPE
5 4853477 WATER PIPE
6 4853479 WATER PIPE
7 4853480 FLAT ENGINE GASKET
8 4853481 RETAINER
9 10303460 SEAL GASKET Ø30x36x1,5 MM
10 8007540 FILLER NECK
12 14307521 CYLIND-HEAD SCREW M10X1,25X30 MM
13 17090174 SPRING WASHER Ø10X20 MM
14 15004021 HEXAGON BOLT M10X1,25X25 MM
15 16605524 HEXAGON BOLT M8X20 MM
16 16605734 HEXAGON BOLT M8X30 MM
17 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
18 8017670 RETAINER
19 17090274 WASHER Ø10X20 MM
20 8018396 RETAINER
21 98490783 CLIP Ø55-65 MM
22 98412396 GASKET
23 98420260 WATER HOSE
24 4936216 WATER PIPE
25 16606924 SCREW M8X110
26 17094914 WASHER 8x16
29 17037931 HEXAGON NUT M8X1,25
30 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
