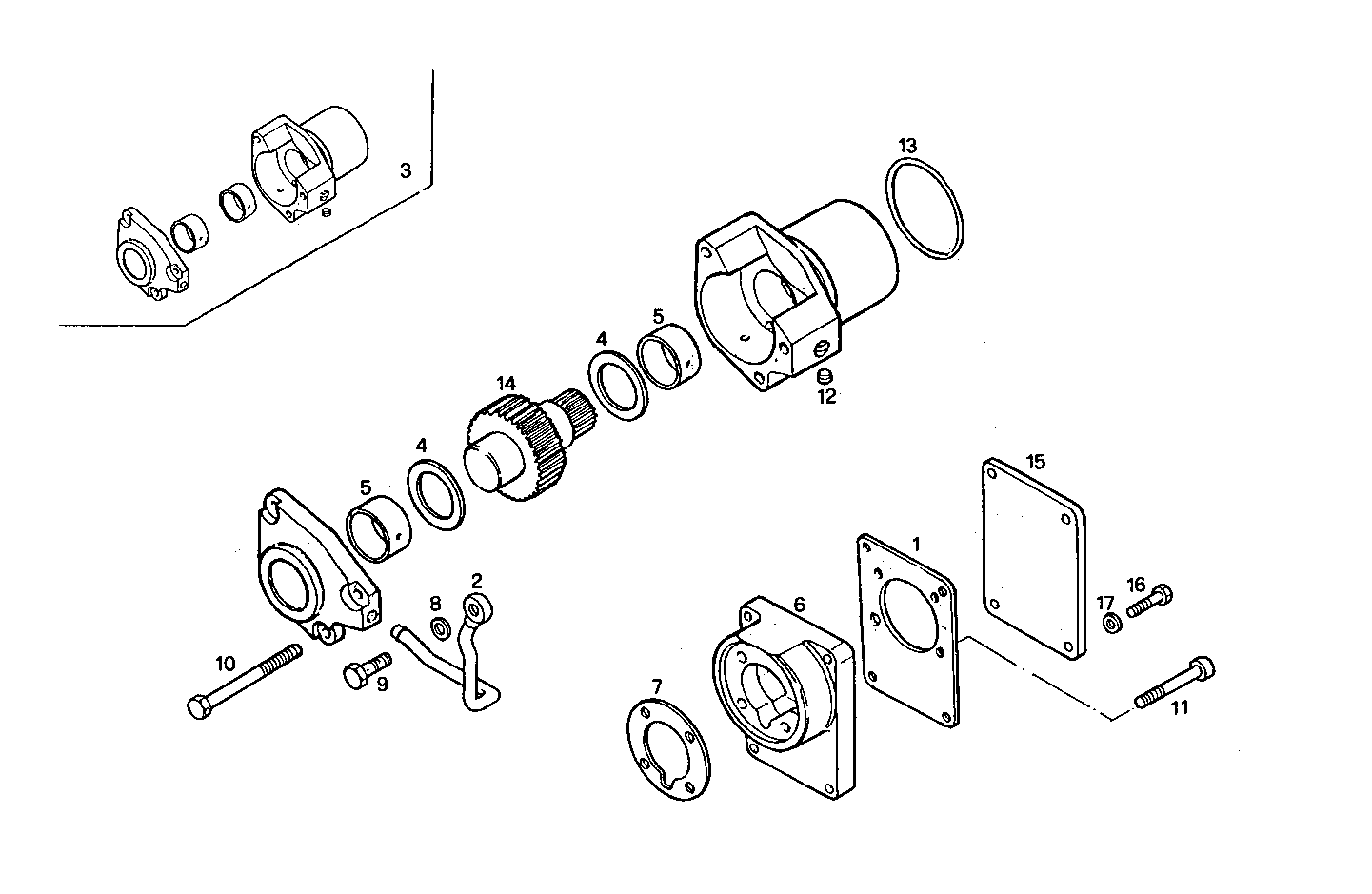

| Item |
Part number |
Description |
|
1 |
4851385 |
FLAT ENGINE GASKET |
|
2 |
4853452 |
HYDRAULIC LINE |
|
3 |
4853897 |
SUPPORT ASSY |
|
4 |
4853901 |
SUPPORT RING |
|
5 |
4853904 |
BUSH |
|
6 |
4853927 |
SUPPORT |
|
7 |
4853928 |
FLAT ENGINE GASKET |
|
8 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
|
9 |
11903814 |
SCREW CONNECTOR M10X1,25X19 MM |
|
10 |
16321824 |
HEXAGON BOLT M8X65 MM |
|
11 |
16690724 |
CYLIND-HEAD SCREW M8X30 MM |
|
12 |
16987501 |
LOCK PLUG Ø7 MM |
|
13 |
17285081 |
O-RING Ø67,94 MM SP=2,62 MM |
|
14 |
98446827 |
SHAFT |
|
15 |
564530 |
COVER |
|
16 |
16603721 |
HEXAGON BOLT M6X20 MM |
|
17 |
17094714 |
WASHER Ø6,4X12 MM |
