8361SRE11.00

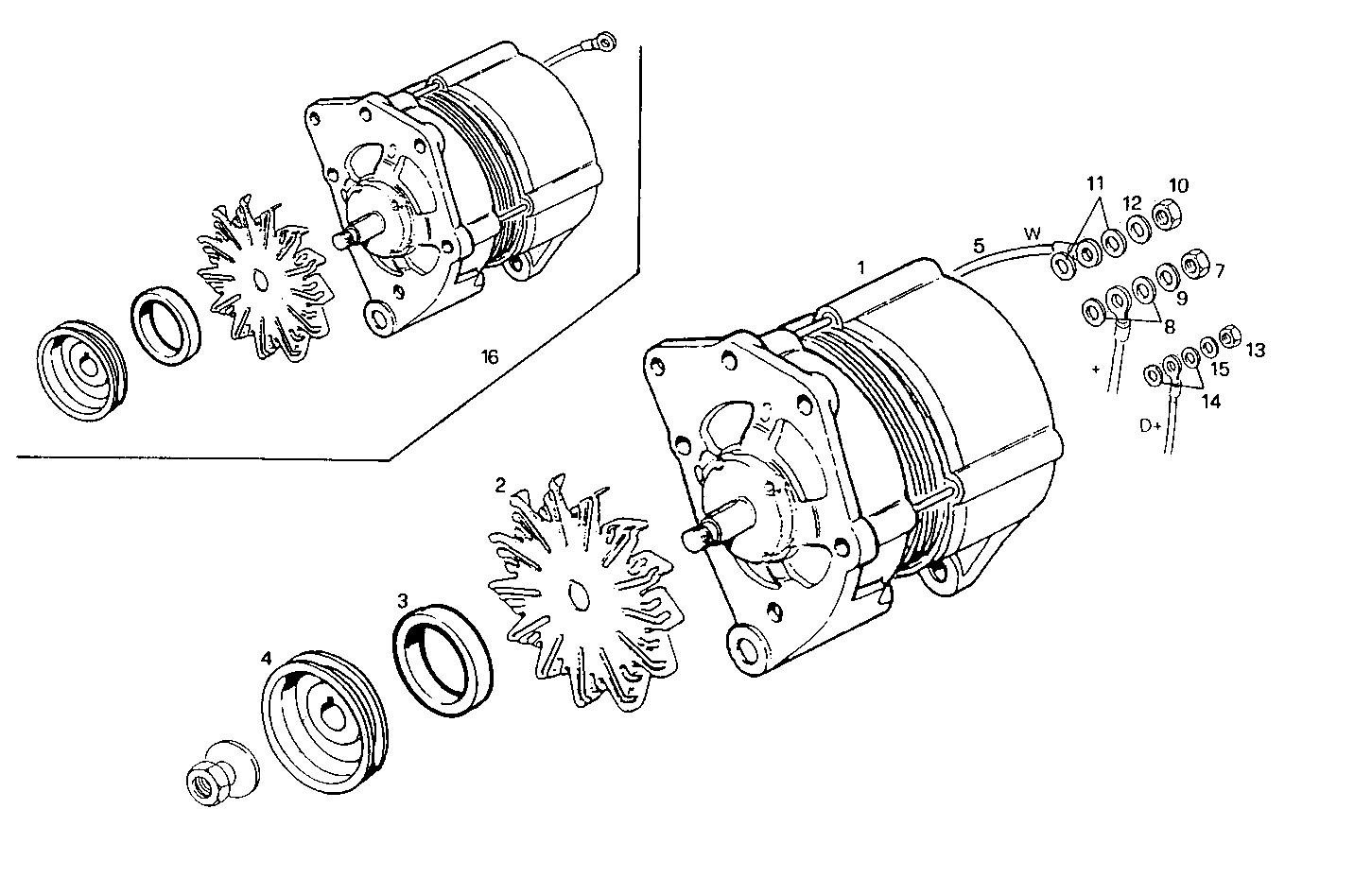

A14120038 SELF-REGULATED ALTERNATOR - 24V 55A (W)
| Item |
Part number |
Description |
|
1 |
98424450 |
ALTERNATOR ASSY BOSCH |
|
2 |
4757196 |
GENERATOR FAN BOSCH |
|
3 |
98454596 |
SPACING BAR BOSCH |
|
4 |
98454695 |
GENERATOR PULLEY |
|
5 |
8019531 |
WIRE/CABLE W |
|
7 |
17037931 |
HEXAGON NUT M8X1,25 |
|
8 |
17094914 |
WASHER 8x16 |
|
9 |
17094834 |
WASHER |
|
10 |
17037721 |
NUT M5X0,8 |
|
11 |
17094504 |
WASHER Ø5,3X10 MM |
|
12 |
10615379 |
TOOTHED WASHER Ø5,3 MM |
|
13 |
17037621 |
HEXAGON NUT M4 |
|
14 |
17094204 |
WASHER Ø4X8X0,8 MM |
|
15 |
10615279 |
WASHER Ø4 MM |
|
16 |
8019554 |
ALTERNATOR ASSY |
