8361SRE11.00

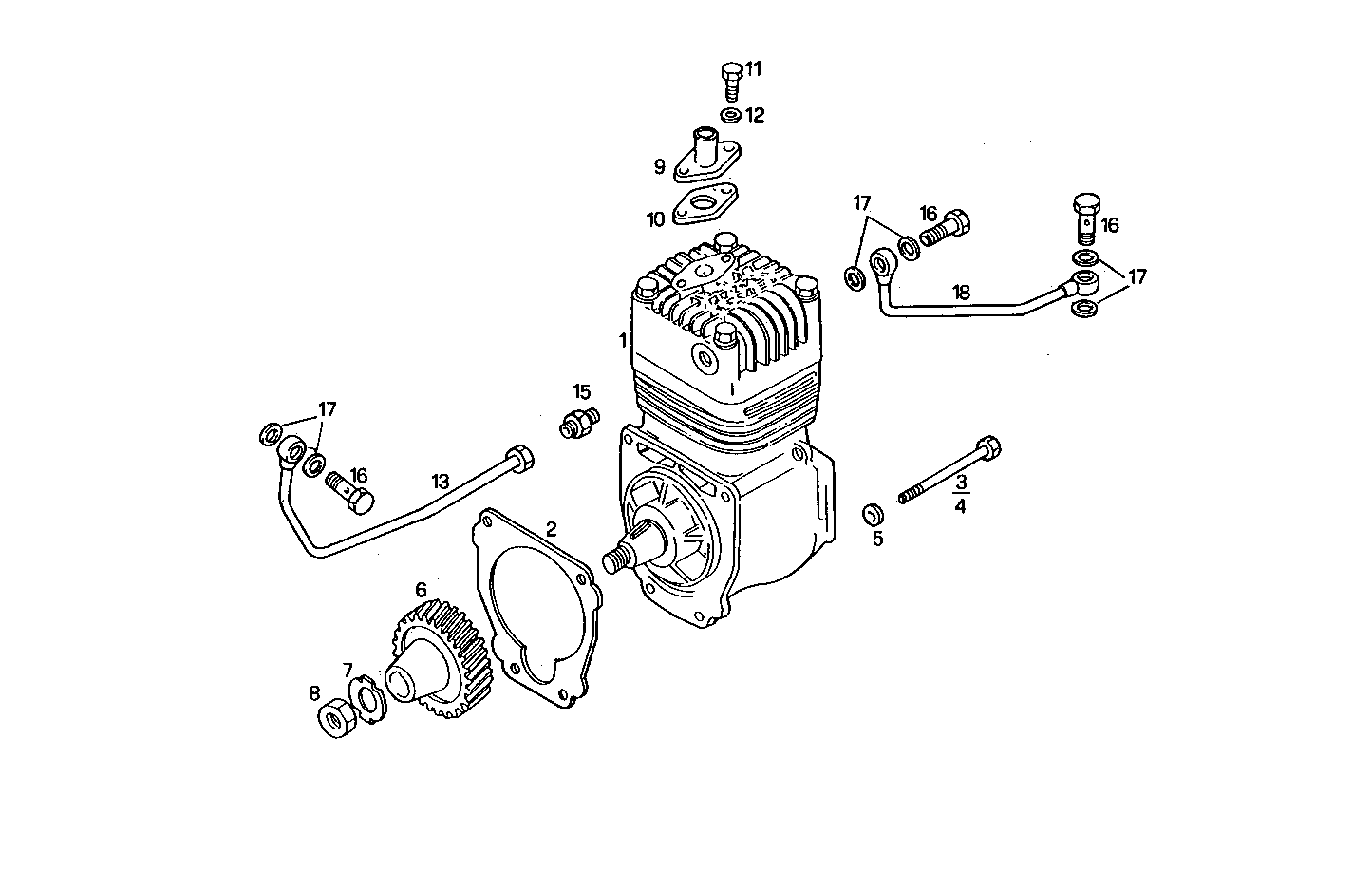

A18080002 AIR COMPRESSOR - 221cc

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 500310905 AIR COMPRESSOR ASSY WABCO
2 4864032 FLAT ENGINE GASKET
3 15970924 HEXAGON BOLT M10X1,25X35 MM
4 15972024 HEXAGON BOLT M10X1,25X110
5 17090174 SPRING WASHER Ø10X20 MM
6 98480830 COMP. DRIVE GEAR
7 17095904 WASHER Ø19X34 MM
8 16980731 HEXAGON NUT
9 4854084 SUCTION LINE
10 4863948 FLAT ENGINE GASKET
11 16605624 HEXAGON BOLT M8X25 MM (8.8)
12 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
13 4853485 WATER PIPE
15 16500311 PIPE SOCKET M16X1,5/M18X1,5
16 4864084 BANJO BOLT M16X1,5
17 4858609 WASHER Ø16X22 MM SP=1,5 MM
18 4853487 WATER PIPE
