8361SRE11.00

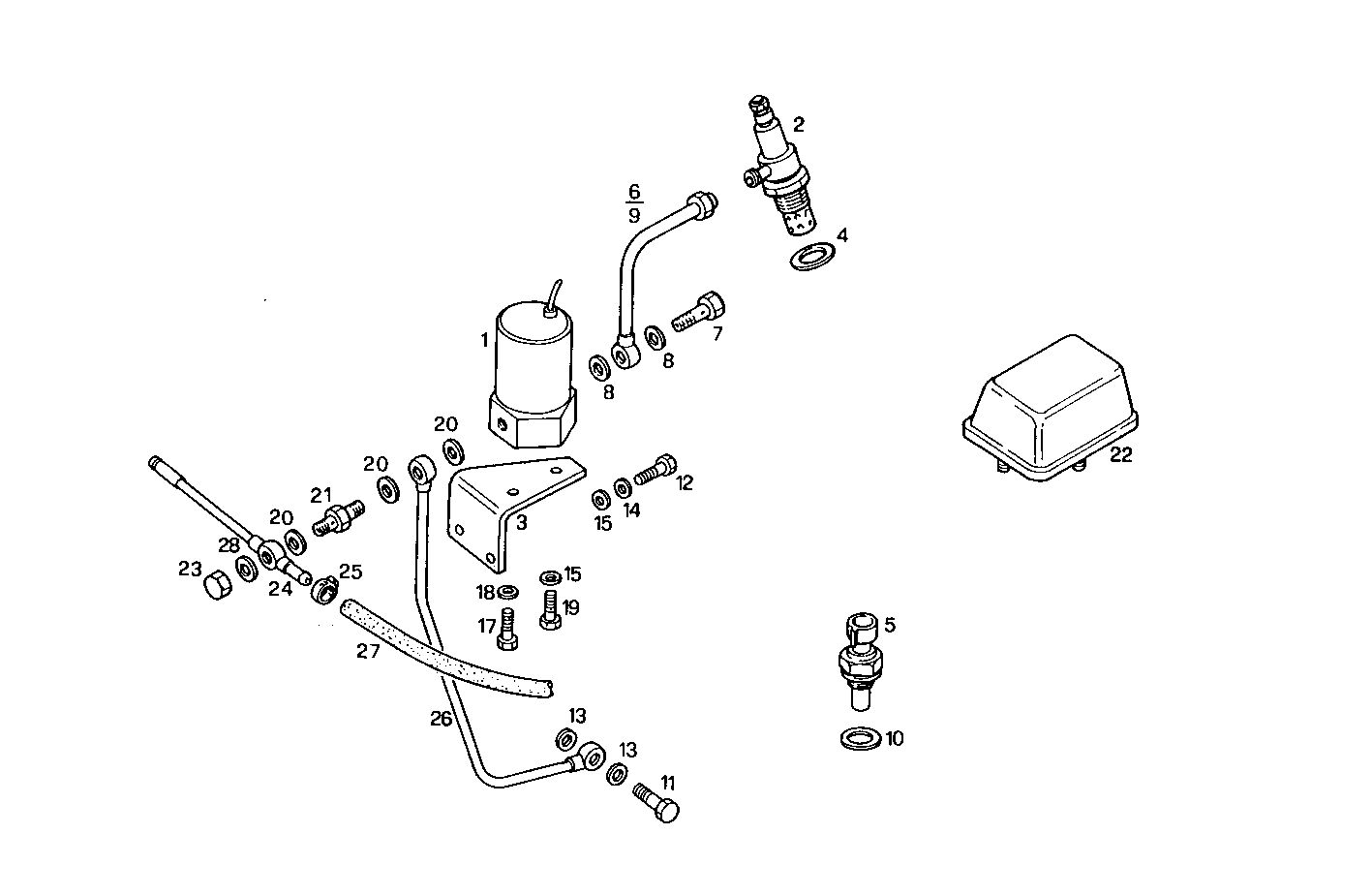

A20110001 THERMOSTARTER - 24V with electronic control unit

Iveco/FPT THERMOSTARTER

Item Part number Description
1 98494898 ELECT.V.VE.PREHEAT
2 99444499 THERMO-STARTER
3 8017494 SUPPORT
4 98429280 SEAL GASKET Ø20X26 MM SP=1,5 MM
5 4857250 TRANSMITTER
6 8017717 FUEL LINE [up to 11-94]
7 16500011 PIPE SOCKET
8 98474305 WASHER Ø10X17 MM SP=2,3
9 8019735 FUEL LINE [from 11-94]
10 4858608 SEAL GASKET dia.14x19,5x1,5
11 4864083 SCREW CONNECTOR M14X1,5X30 MM
12 16603524 SCREW M6X12 MM (8.8)
13 98474308 SEAL GASKET Ø14X22 MM
14 17094714 WASHER Ø6,4X12 MM
15 17088474 WASHER Ø6X12 MM
17 16601924 HEXAGON BOLT M5X10 MM
18 17094504 WASHER Ø5,3X10 MM
19 16603424 SCREW M6X10
20 4858506 GASKET
21 98469450 BYPASS VALVE
22 8017441 ELECTR.CONTR.UNIT ASSY
23 98469675 THREADED PLUG M12X1
24 8017718 FUEL LINE
25 17764391 CLIP Ø12/20 MM
26 8017489 FUEL LINE
27 4687211 RUBBER SLEEVE
28 98474306 WASHER Ø12X20 MM SP=1,9 MM
