8361SRE11.00

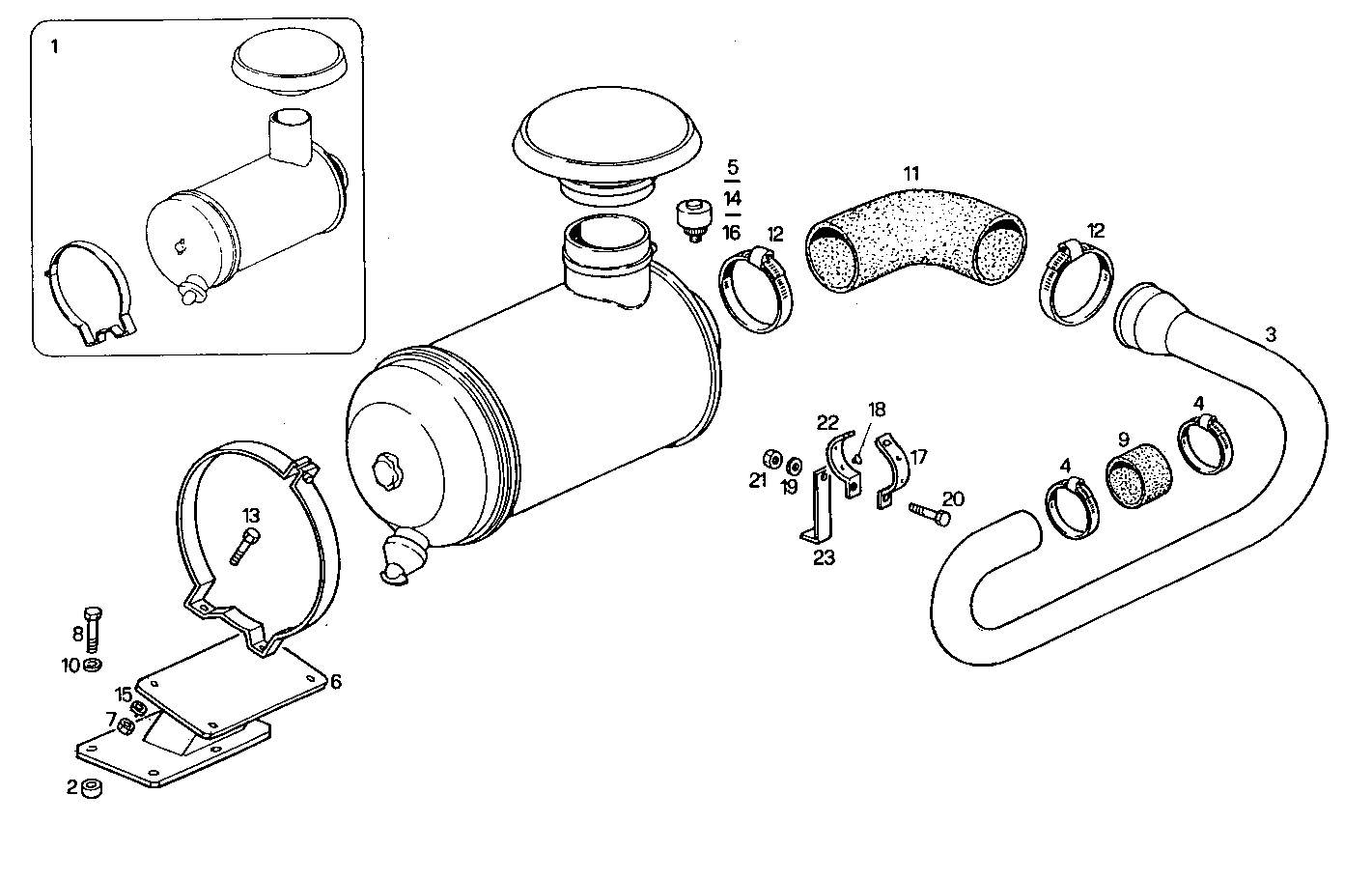

A21210048 DRY AIR CLEANER - with mechanical clogging gauge

Iveco/FPT DRY AIR CLEANER

Item Part number Description
1 8019338 AIR CLEANER ASSY
2 759850 WASHER Ø10X21X2 MM
3 8019332 AIR PIPE/DUCT
4 17765191 CLIP Ø70/90 MM
5 4936137 CHOCKED FILTER INDIC. MECHANICAL
6 8019331 SUPPORT
7 17038421 HEXAGON NUT M12 (8)
8 11306924 HEXAGON BOLT M10X1,25X30 MM
9 4931549 RUBBER SLEEVE
10 17090174 SPRING WASHER Ø10X20 MM
11 8019333 RUBBER SLEEVE
12 17765791 CLIP DIA 130/150 [up to 10-93]
13 16609824 HEXAGON BOLT M12X1,75X25 MM
14 8022540 CHOCKED FILTER INDIC. MECHANICAL
15 17091074 WASHER Ø12X24X2,8 MM
16 8027294 CHOCKED FILTER INDIC. MECHANICAL
17 8013655 CLAMP
18 1366290 RUBBER LUG
19 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
20 16605624 HEXAGON BOLT M8X25 MM (8.8)
21 17037931 HEXAGON NUT M8X1,25
22 8013656 CLAMP
23 8011585 RETAINER
