8361SRE11.00

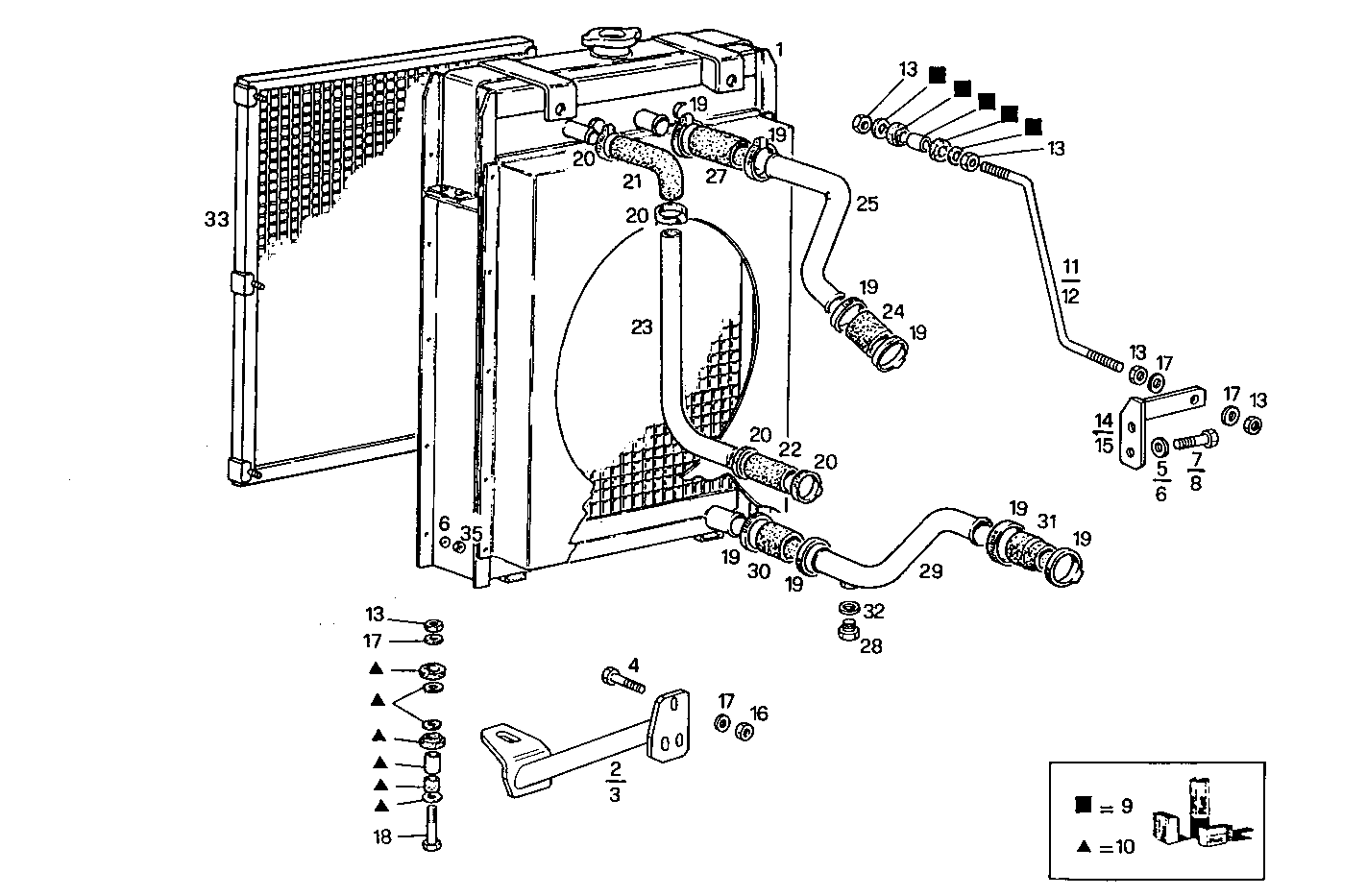

A22410010 RADIATOR FOR SETTING TILL MAX POWER

Iveco/FPT RADIATOR FOR SETTING TILL MAX POWER

Item Part number Description
1 8107679 WATER RADIATOR ASSY
2 8019090 SUPPORT RIGHT
3 8019091 SUPPORT LEFT
4 16610124 HEXAGON BOLT M12X40 MM
5 17090174 SPRING WASHER Ø10X20 MM
6 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
7 15004021 HEXAGON BOLT M10X1,25X25 MM
8 16605524 HEXAGON BOLT M8X20 MM
9 8090413 KIT-RADIATOR A.S. COMPLETE
10 8090977 KIT-RADIATOR A.S. COMPLETE
11 8019763 TIE ROD LEFT
12 8019661 TIE ROD RIGHT
13 17038421 HEXAGON NUT M12 (8)
14 8019741 RETAINER RIGHT
15 8019764 RETAINER LEFT
17 17091074 WASHER Ø12X24X2,8 MM
18 16610724 SCREW M12X1,75X70 MM
19 98490783 CLIP Ø55-65 MM
20 17764592 CLIP Ø20/32 MM
21 17738187 WATER HOSE
22 98421371 AIR HOSE
23 8019111 WATER PIPE
24 8010366 WATER HOSE
25 8019103 WATER PIPE
27 17744887 RUBBER SLEEVE
28 4595833 THREADED PLUG M20X1,5
29 8019102 WATER PIPE
31 4951318 RUBBER SLEEVE Ø45/50 MM
32 98474312 GASKET
33 8108066 PROTECTION
35 17037931 HEXAGON NUT M8X1,25
