8361SRE11.00A001

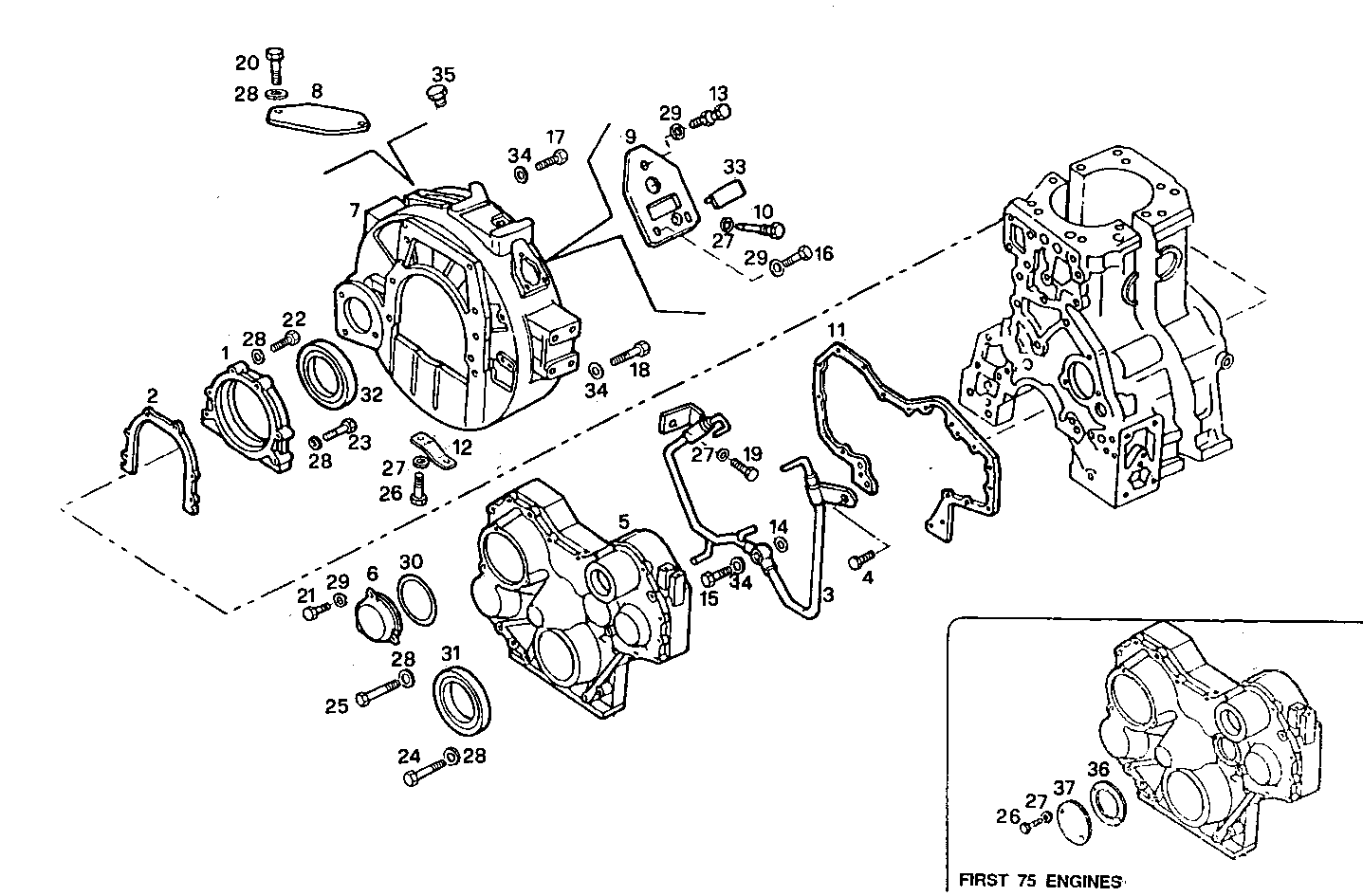

0430.059 INSERTED BOX ASSEM.

Iveco/FPT INSERTED BOX ASSEM.

Item Part number Description
1 4841297 COVER
2 4851387 FLAT ENGINE GASKET
3 4851832 OIL LINE
4 4851834 HEXAGON BOLT
5 99449421 SUPPORT
6 4851837 COVER
7 98427158 SUPPORT
8 4851842 COVER
9 4851846 SUPPORT
10 4851847 SCREW
11 4852756 FLAT ENGINE GASKET
12 8017693 COVER
13 61315661 HEXAGON BOLT M8X30
14 10298360 SEAL GASKET Ø10X16 MM SP=1 MM
15 11903814 SCREW CONNECTOR M10X1,25X19 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 14274730 SCREW
18 15540834 SCREW
19 16603424 SCREW M6X10
20 16605424 SCREW M8X16 MM (8.8)
21 16605524 HEXAGON BOLT M8X20 MM
22 16605824 HEXAGON BOLT M8X35 MM
23 16606024 SCREW M8X45 MM
24 16606324 HEXAGON BOLT M8X60 MM
25 16606624 HEXAGON BOLT M8X80 MM
26 16603624 HEXAGON BOLT M6X16 MM (8.8)
27 17088474 WASHER Ø6X12 MM
28 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
29 17094914 WASHER 8x16
30 17285981 O-RING Ø107,62 MM SP=2,62
31 98499173 SHAFT SEAL
32 98499174 SHAFT SEAL
33 61317686 PLASTIC PLUG
34 17091074 WASHER Ø12X24X2,8 MM
35 8007695 PLUG M10X1
36 61319051 FLAT ENGINE GASKET
37 61317176 COVER
