8361SRE11.00A001

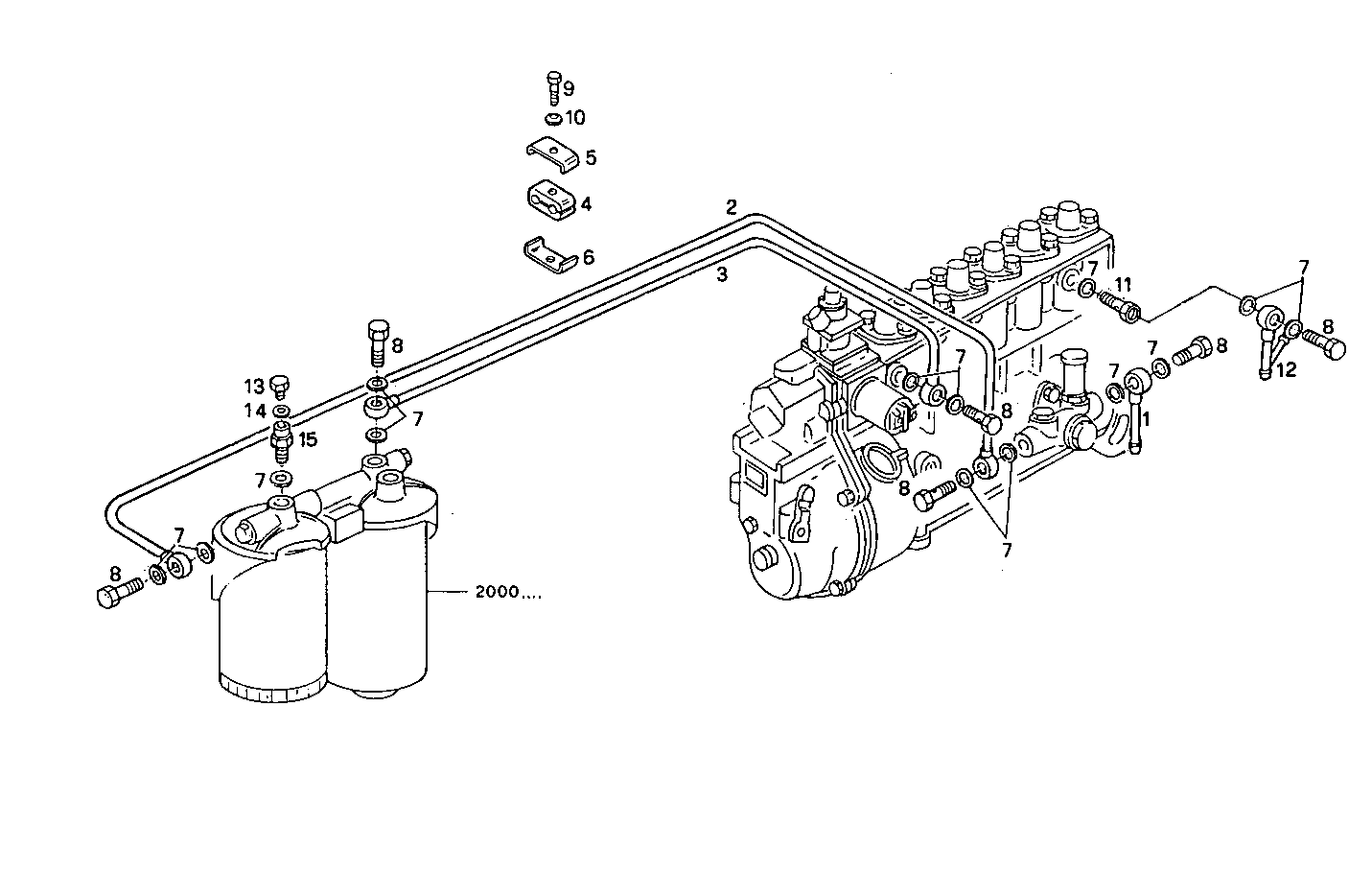

2030.132 FUEL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98404882 | PIPE SOCKET Ø8 MM |
| 2 | 8017791 | FUEL LINE |
| 3 | 8017792 | FUEL LINE |
| 4 | 4871771 | RUBBER LUG |
| 5 | 4871773 | RETAINER ASSY |
| 6 | 4871774 | RETAINER ASSY |
| 7 | 98474308 | SEAL GASKET Ø14X22 MM |
| 8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
| 9 | 16603824 | SCREW M6X25 |
| 10 | 17088474 | WASHER Ø6X12 MM |
| 11 | 8102465 | VALVE |
| 12 | 8012569 | PIPE SOCKET |
| 13 | 4753563 | PLUG M10X1,5 |
| 14 | 4858606 | GASKET Ø10X14X1 MM |
| 15 | 4724015 | SCREW CONNECTOR |
