8361SRE11.00A001

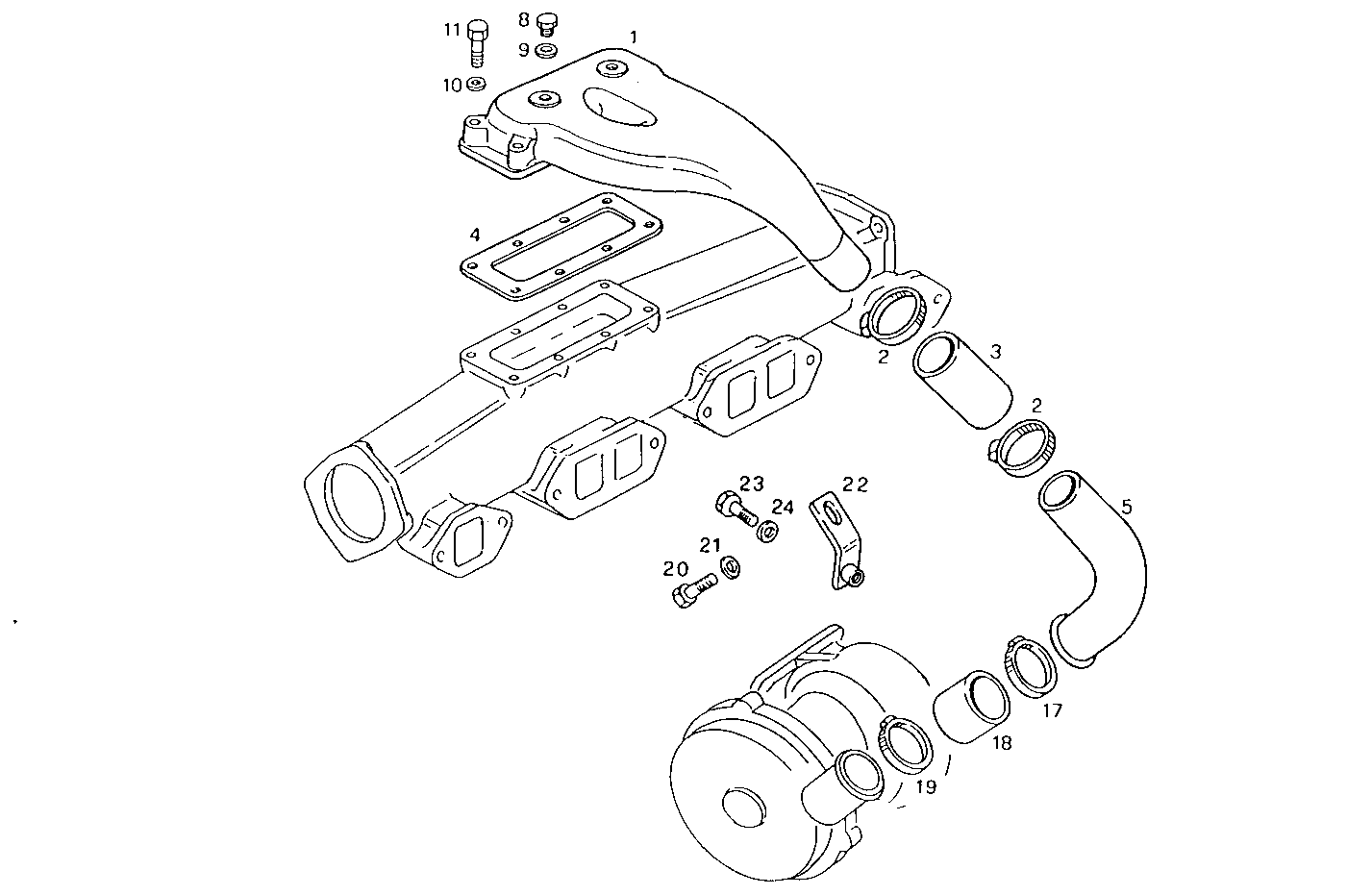

2420.137 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8017705 | INTAKE ELBOW |
| 2 | 17764992 | CLIP Ø50-70 MM |
| 3 | 98437496 | RUBBER SLEEVE |
| 4 | 8019078 | GASKET |
| 5 | 8017685 | EXHAUST ELBOW |
| 8 | 10304911 | THREADED PLUG M20X1,5 |
| 9 | 98429280 | SEAL GASKET Ø20X26 MM SP=1,5 MM |
| 10 | 17793804 | WASHER Ø8X21X1,5 MM |
| 11 | 8023383 | SCREW M10X45 |
| 17 | 4830091 | CLIP |
| 18 | 8017813 | RUBBER SLEEVE |
| 19 | 17768591 | CLIP |
| 20 | 16605424 | SCREW M8X16 MM (8.8) |
| 21 | 17009474 | WASHER |
| 22 | 8018445 | RETAINER |
| 23 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 24 | 17090174 | SPRING WASHER Ø10X20 MM |
