8361SRE11.00A001

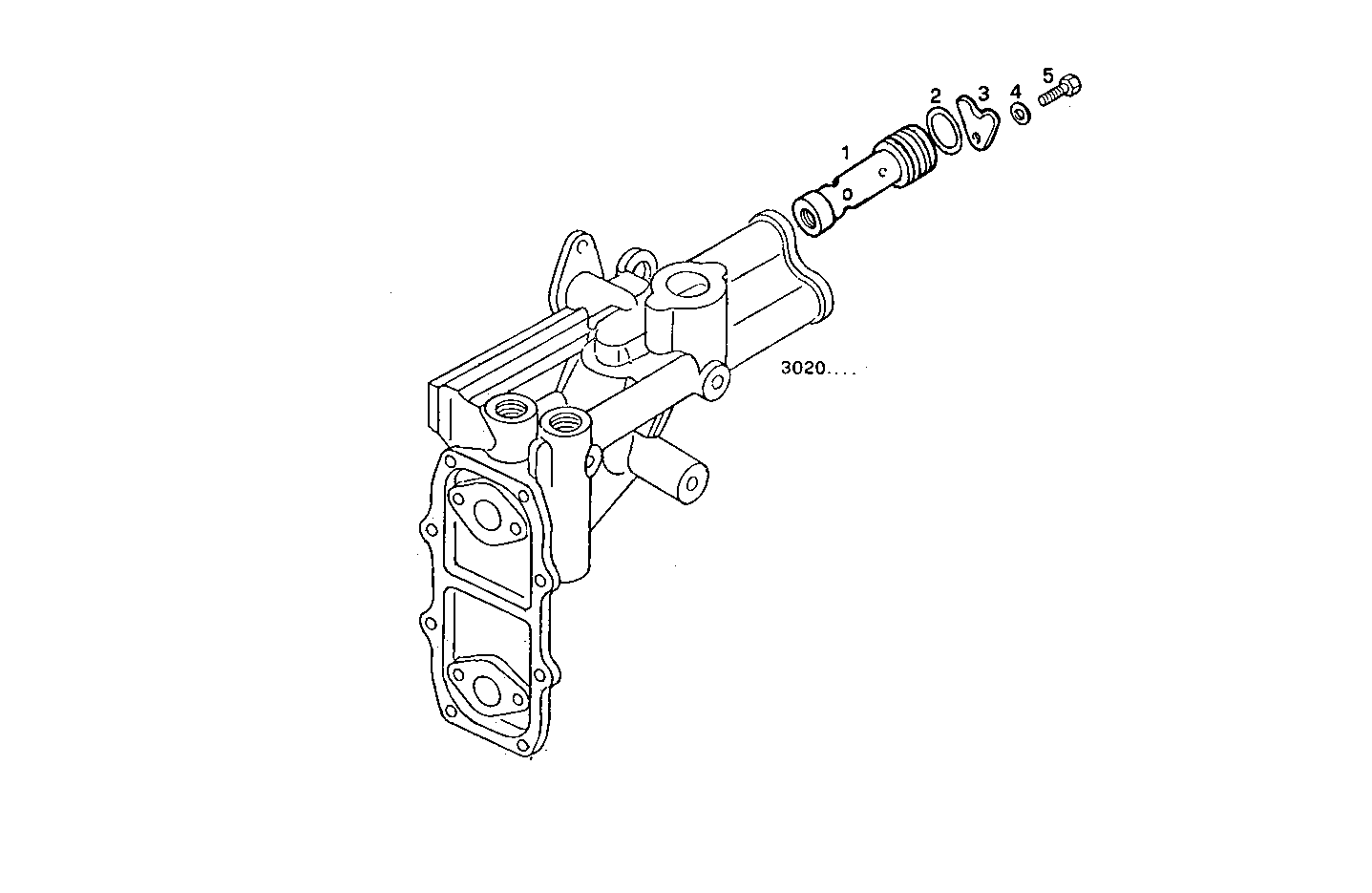

3030.021 OIL PRESSURE VALVE
| Item | Part number | Description |
|---|---|---|
| 1 | 98435128 | VALVE |
| 2 | 17288881 | O-RING Ø28,1 MM SP=3,5 MM |
| 3 | 4846397 | CONNECTING PLATE |
| 4 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 5 | 16690524 | SCREW M8X20 MM (8.8) |
