8361SRE11.00A001

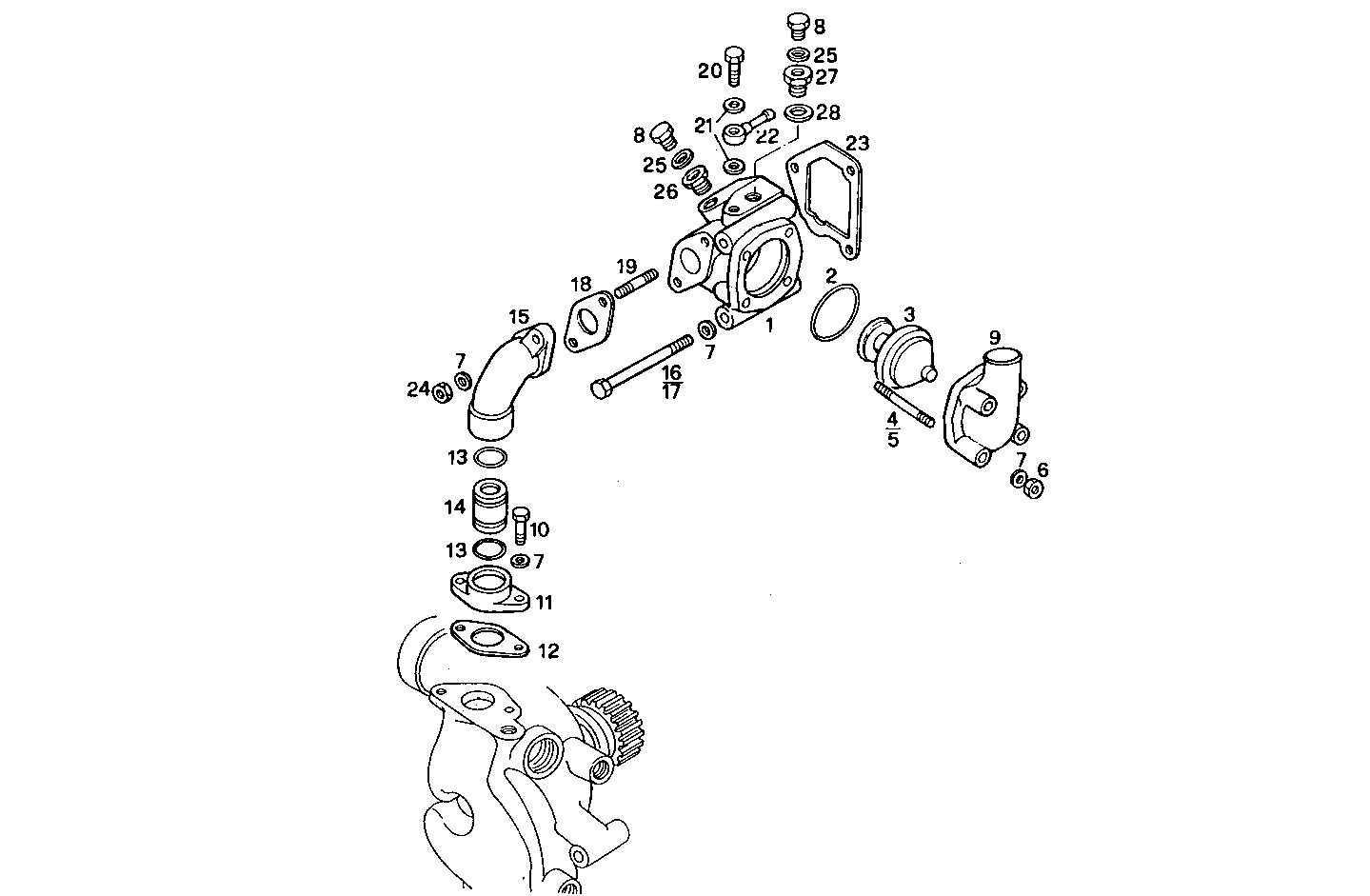

3220.037 THERMOSTAT

Iveco/FPT THERMOSTAT

Item Part number Description
1 98429272 THERMOSTAT BODY
2 98465113 O-RING Ø60 MM
3 98439348 THERMOSTAT
4 16729824 STUD M8X45 MM
5 16730124 STUD M8X60 MM
6 17037931 HEXAGON NUT M8X1,25
7 17094914 WASHER 8x16
8 16992311 LOCK PLUG M14X1,5
9 4853513 THERM.BODY COVER
10 16605524 HEXAGON BOLT M8X20 MM
11 4853510 PIPE SOCKET
12 4853511 FLAT ENGINE GASKET
13 98465117 O-RING
14 98415265 PIPE
15 4853502 WATER PIPE
16 16606924 SCREW M8X110
17 16605734 HEXAGON BOLT M8X30 MM
18 4853509 FLAT ENGINE GASKET
19 16729424 STUD M8X1,25X25
20 4864080 SCREW CONNECTOR M10X1,25
21 4858606 GASKET Ø10X14X1 MM
22 4671701 SWIVEL COUPLING
23 4853501 FLAT ENGINE GASKET
24 17152821 NUT M8 [up to 555939]
25 4858608 SEAL GASKET dia.14x19,5x1,5
26 4931480 PIPE SOCKET
27 4928330 PIPE SOCKET M16X1,5/M14X1,5
28 4858609 WASHER Ø16X22 MM SP=1,5 MM
