8361SRE11.00A001

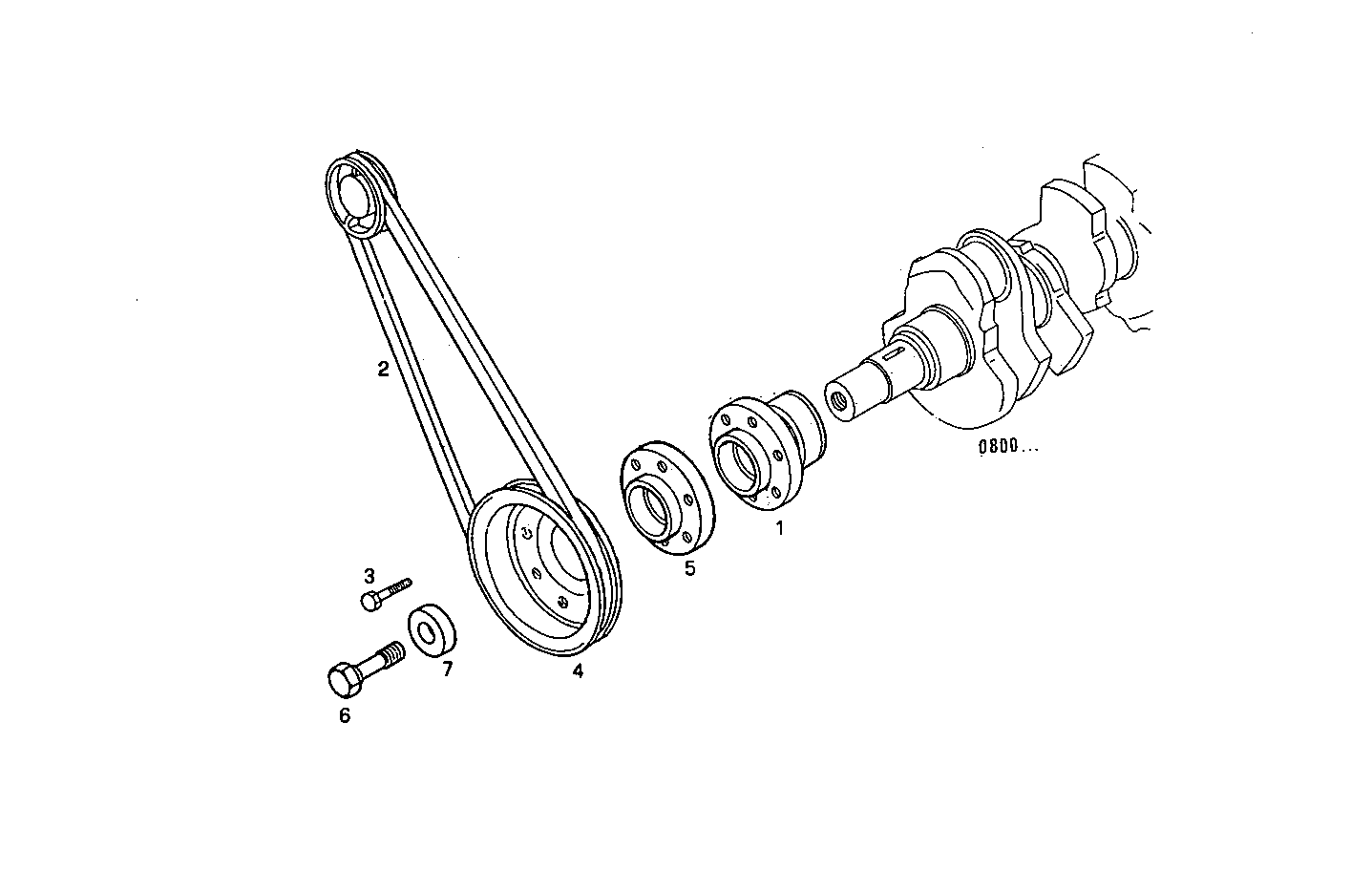

3240.090 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4852786 | HUB |
| 2 | 98429196 | ALTERNATOR BELT |
| 3 | 16324134 | HEXAGON BOLT M10X60 MM |
| 4 | 4852686 | PULLEY |
| 5 | 98424646 | SPACING BAR |
| 6 | 16678434 | HEXAGON BOLT M12X60 MM |
| 7 | 98427590 | WASHER |
