8361SRi11.05

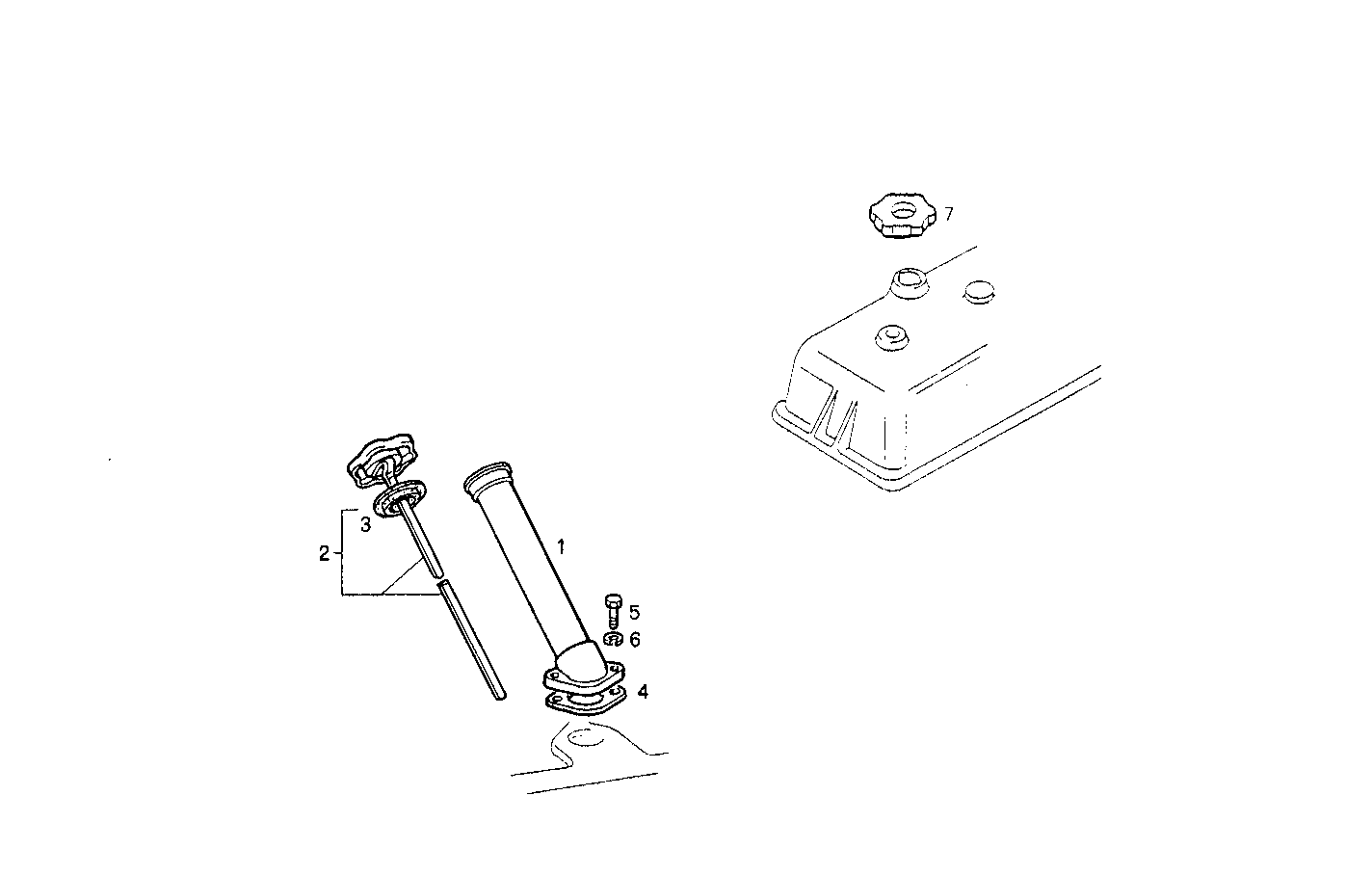

2710.021 OIL DIPSTICK

Iveco/FPT OIL DIPSTICK

Item Part number Description
1 4727409 OIL LEVEL TUBE
2 4727407 OIL DIPSTICK ASSY
3 98418978 GASKET
4 98412099 GASKET
5 16043621 HEXAGON BOLT M8X25 MM
6 17090274 WASHER Ø10X20 MM
7 98418980 OIL FILLER PLUG ASSY
