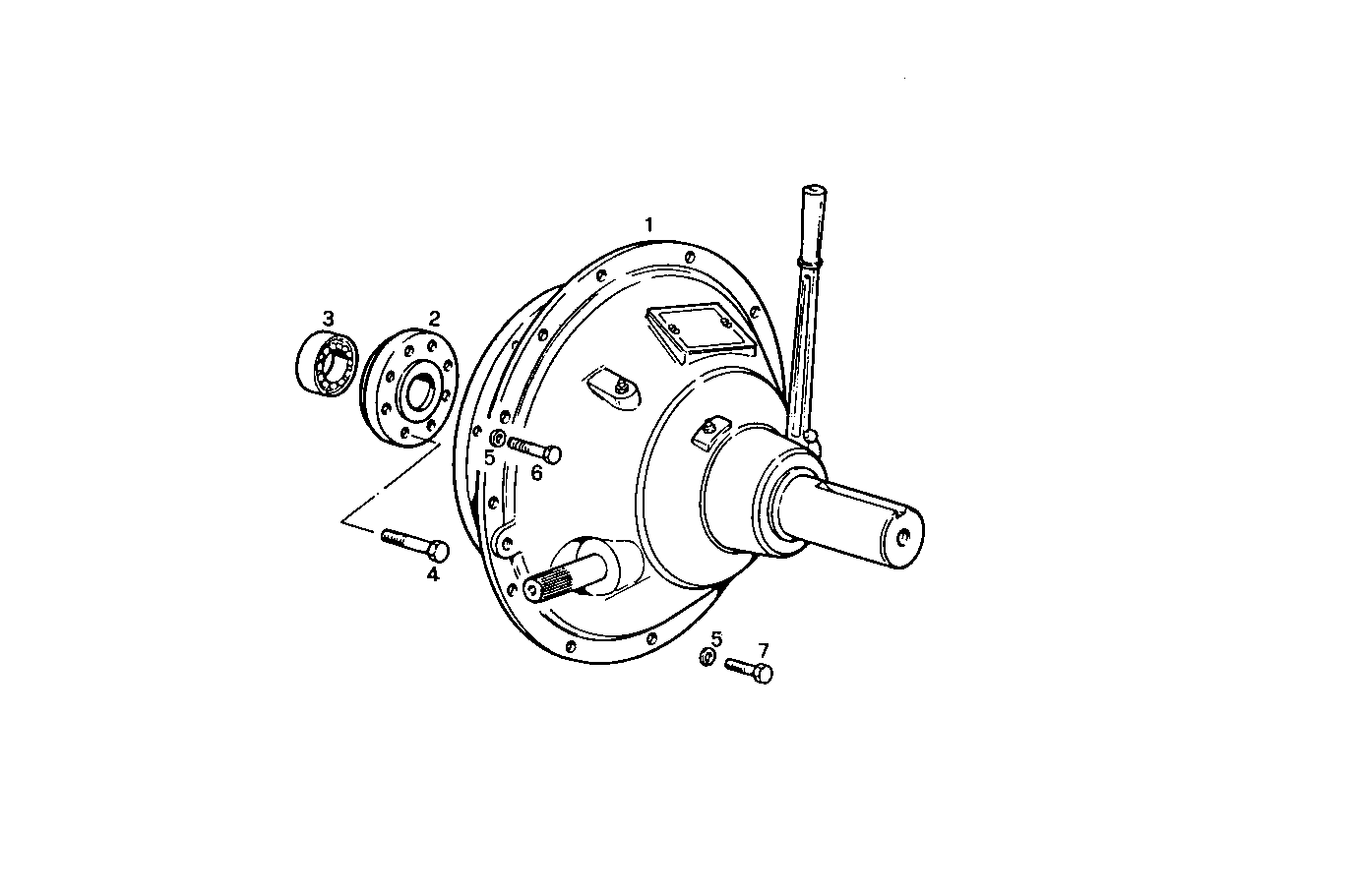

A27230001 TRIDISC INDUSTRIAL CLUTCH - TECHNODRIVE 11'' 1/2

Iveco/FPT TRIDISC INDUSTRIAL CLUTCH

Item Part number Description
1 8109225 CLUTCH ASSY
2 4935070 HUB
3 28044150 DRIVE BEARING
4 4935071 SCREW
5 11198371 SPRING WASHER Ø10X20 MM
6 15971721 SCREW M10X1,25X95
7 15888721 HEXAGON BOLT M10X1,25X55 MM
