8361SRi12.00

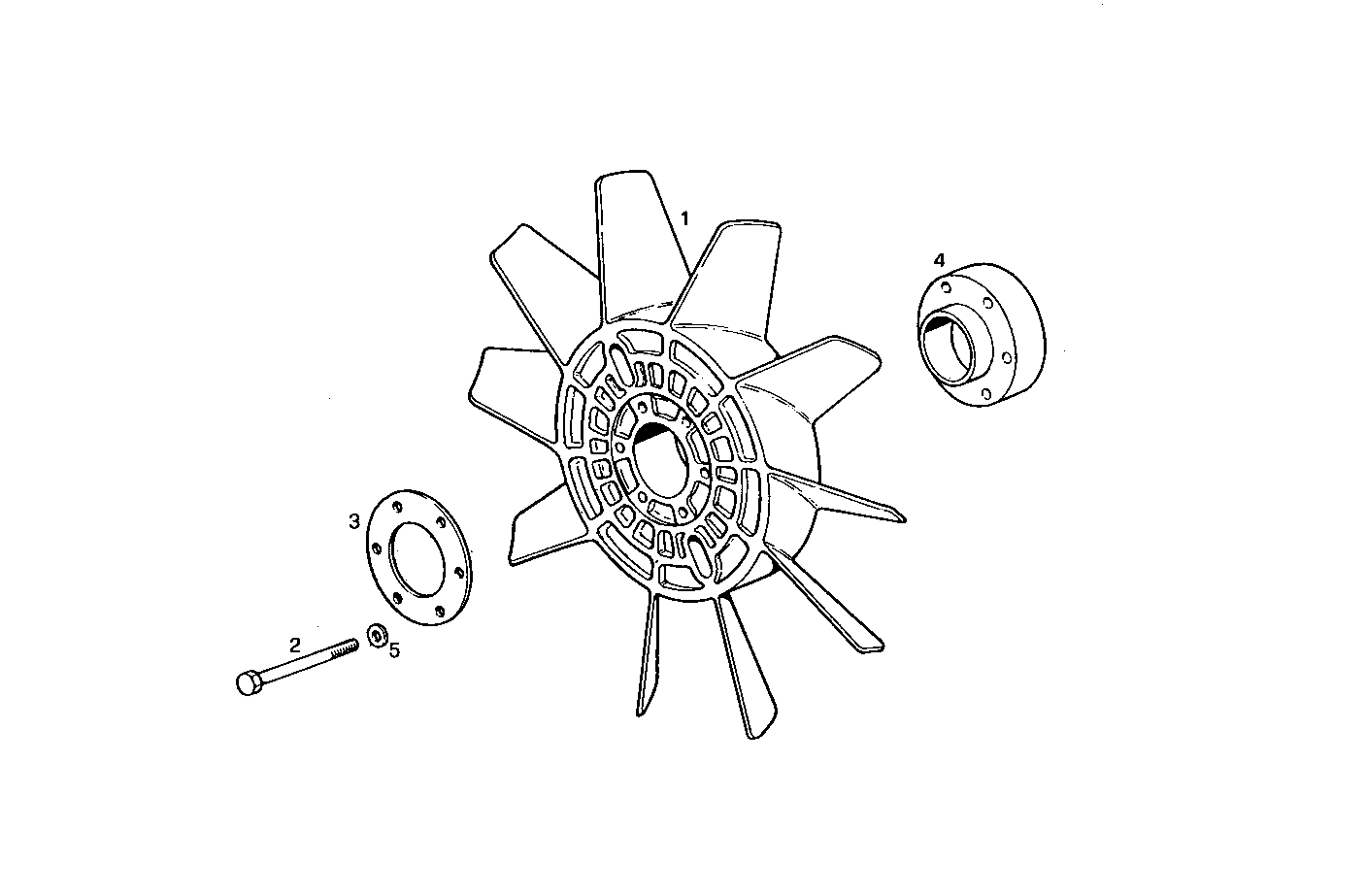

A08000039 PULLER FAN - high position
| Item | Part number | Description |
|---|---|---|
| 1 | 4629725 | BLOWER Ø560 MM |
| 2 | 15971321 | HEXAGON BOLT M10X1,25X75 MM |
| 3 | 4629908 | SUPPORT RING |
| 4 | 79028403 | SPACING BAR |
| 5 | 17090174 | SPRING WASHER Ø10X20 MM |
