8361SRi12.00

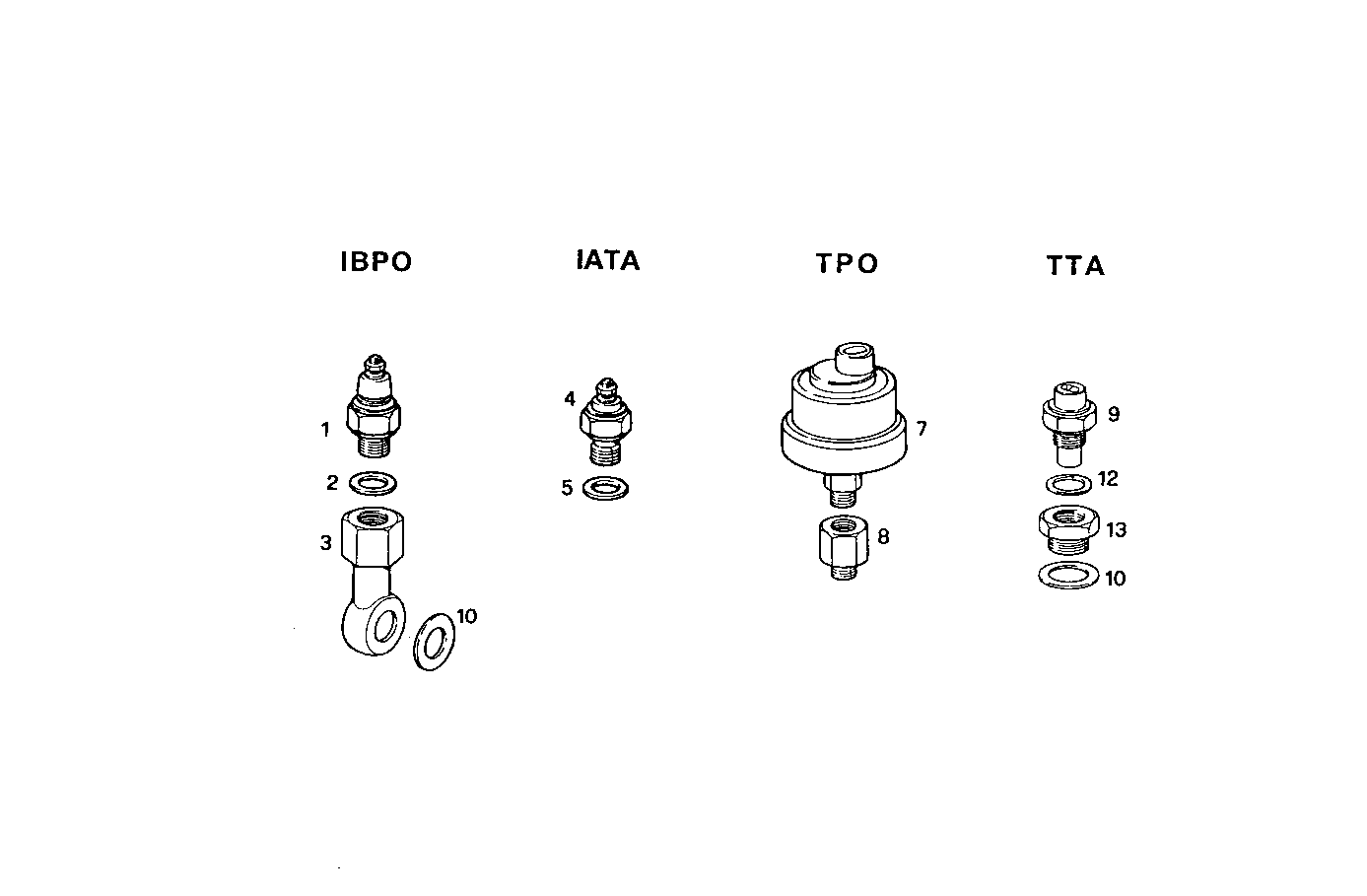

A38570012 SENDER UNITS ALARMS INSTRUMENT - 12/24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8104140 | TRANSMITTER IBPO |
| 2 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 3 | 38800427 | SCREW CONNECTOR |
| 4 | 8104141 | TRANSMITTER IATA |
| 5 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 7 | 8100563 | TRANSMITTER TPO |
| 8 | 4927546 | PIPE SOCKET |
| 9 | 4933019 | TRANSMITTER TTA - TTO |
| 10 | 4858606 | GASKET Ø10X14X1 MM |
| 12 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
| 13 | 8111331 | PIPE SOCKET |
