8361SRi25.06

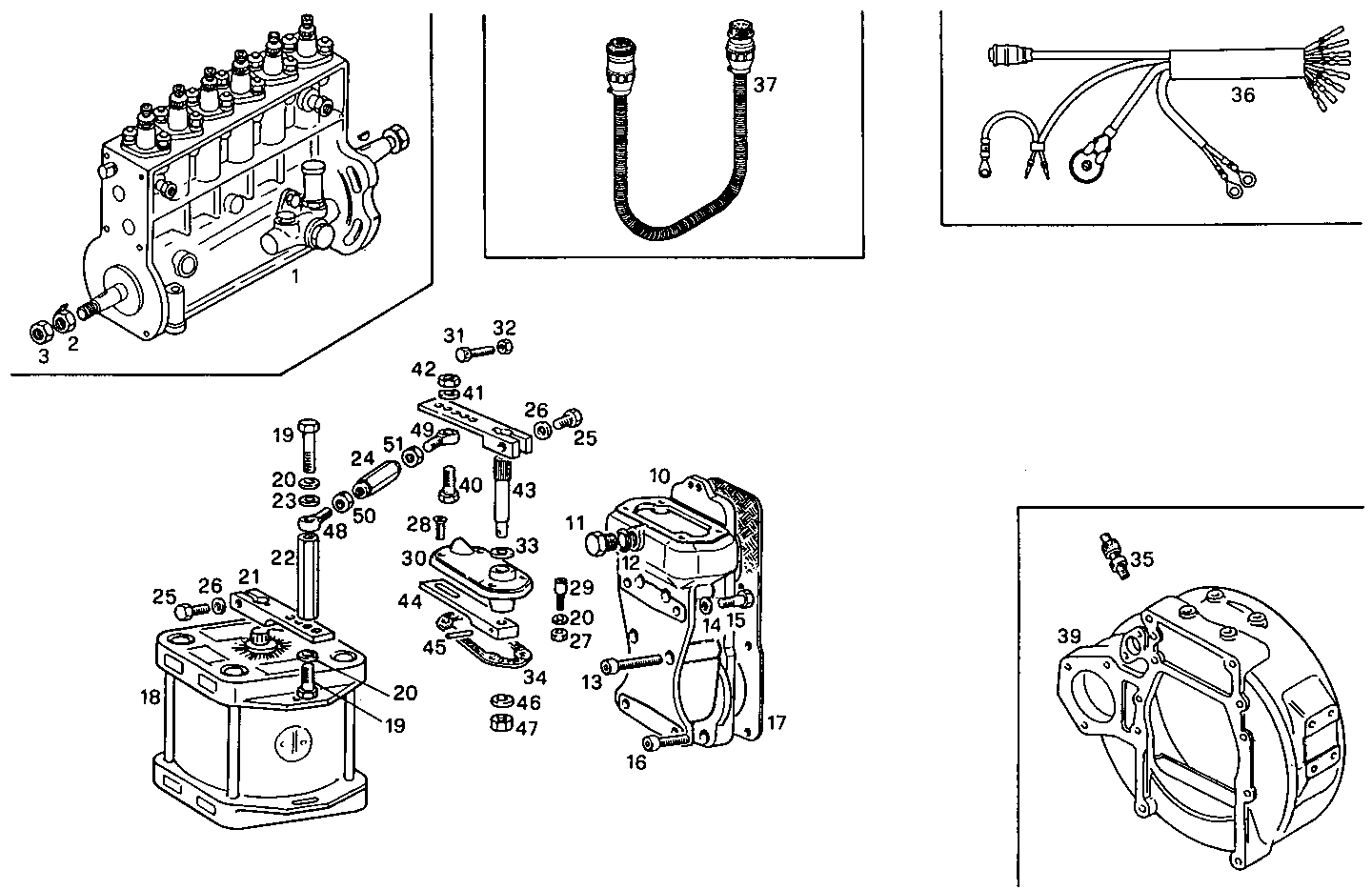

A28010046/01 ELECTRONIC GOVERNOR WOODWARD - 24V

Iveco/FPT ELECTRONIC GOVERNOR WOODWARD

Item Part number Description
1 775634 INLINE INJECT.PUMP ASSY
2 8108716 NUT
3 10717311 NUT M12
10 8007450 TIMINGGEAR HOUSIN
11 10300711 LOCK PLUG M16
12 10278650 GASKET Ø16X22X1 MM
13 14303820 SCREW M6X60
14 11197771 SPRING WASHER Ø6X12 MM SP=1,2 MM
15 4934404 SCREW
16 16689177 SOCKET-HEAD SCREW M6X16 MM
17 8015485 GASKET
18 8107492 INJECTION CONTROL ASSY
19 8016470 SCREW M5
20 17094504 WASHER Ø5,3X10 MM
21 8108603 LEVER
22 8108656 SPACING BAR
23 17094714 WASHER Ø6,4X12 MM
24 8016413 TIE ROD M6X1 [up to 06-95]
25 16603724 HEXAGON BOLT M6X20 MM (8.8)
26 17088474 WASHER Ø6X12 MM
27 17152621 NUT M5X0,8
28 8109360 SCREW M5X12
29 8108604 PIN
30 8007452 COVER ASSY
31 8108715 SCREW
32 17037721 NUT M5X0,8
33 8109732 WASHER
34 8108602 GASKET
35 4933865 TRANSMITTER
36 8022927 ENGINE HARNESS
37 8022497 EXTENSION
39 8101287 FLYWHEEL HOUSING
40 16602224 HEXAGON BOLT M5X20 MM
41 11199279 SPRING WASHER Ø5X10X0,5 MM
43 8109731 PIN
44 8108601 LEVER
45 14158570 DOWEL PIN Ø2,3 MM
46 8013188 WASHER
47 16979331 HEXAGON NUT M6X1
48 8016588 TIE ROD LEFT [up to 06-95]
49 8016587 TIE ROD RIGHT [up to 06-95]
50 10789640 NUT M6 - LEFT [up to 06-95]
51 15896240 NUT M6 - RIGHT [up to 06-95]
