8361SRi25.07

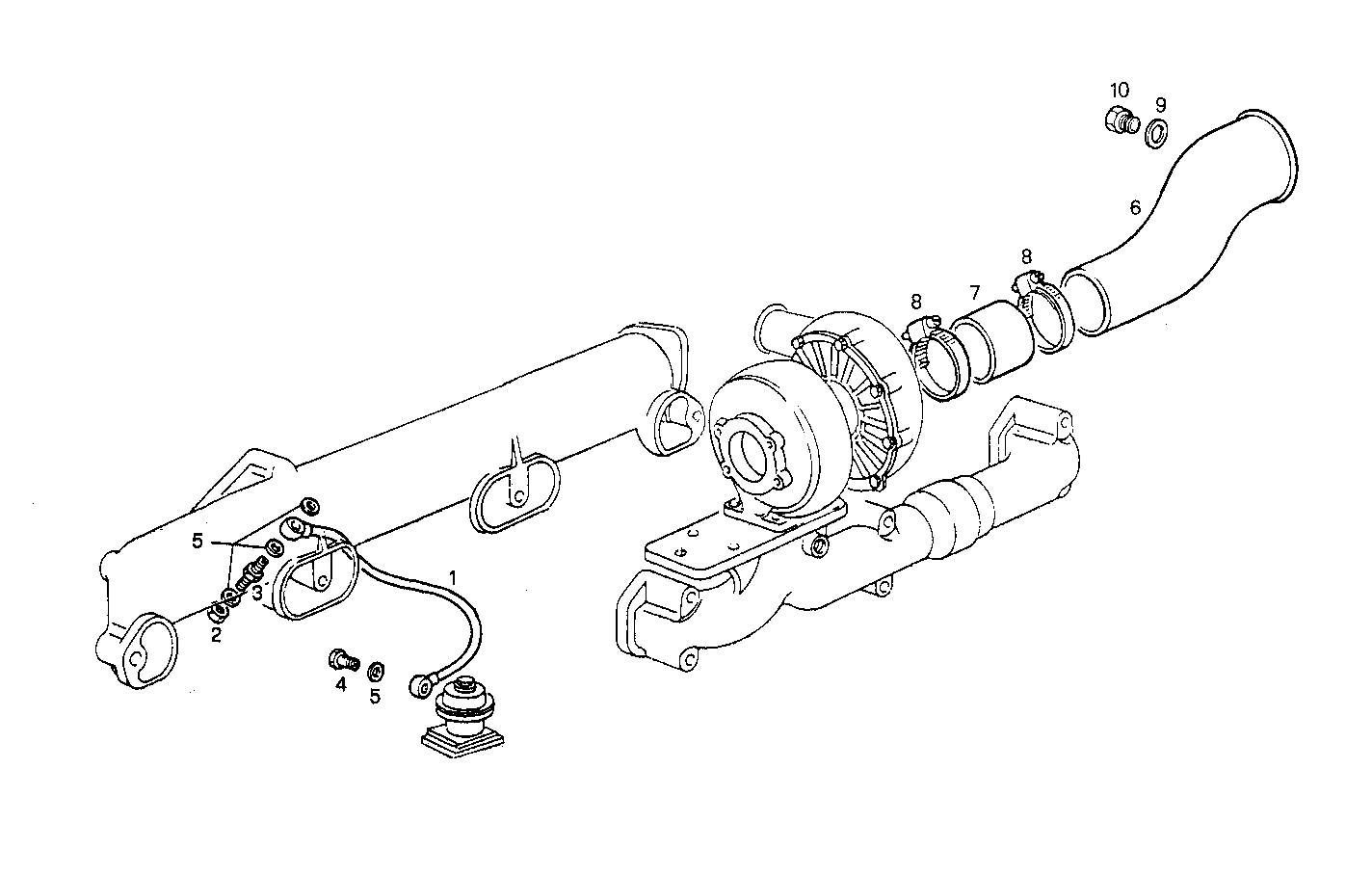

2420.016 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98427361 | AIR PIPE/DUCT |
| 2 | 10183217 | LOCK PLUG M12X1,5 |
| 3 | 10180217 | SWIVEL COUPLING |
| 4 | 4864081 | SCREW CONNECTOR |
| 5 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 6 | 8107802 | AIR MANIFOLD |
| 7 | 4931549 | RUBBER SLEEVE |
| 8 | 17765092 | CLIP Ø60-80 MM |
| 9 | 10296260 | SEAL GASKET Ø28X36 MM SP=1,5 MM |
| 10 | 10305440 | PLUG M28X1,5 |
