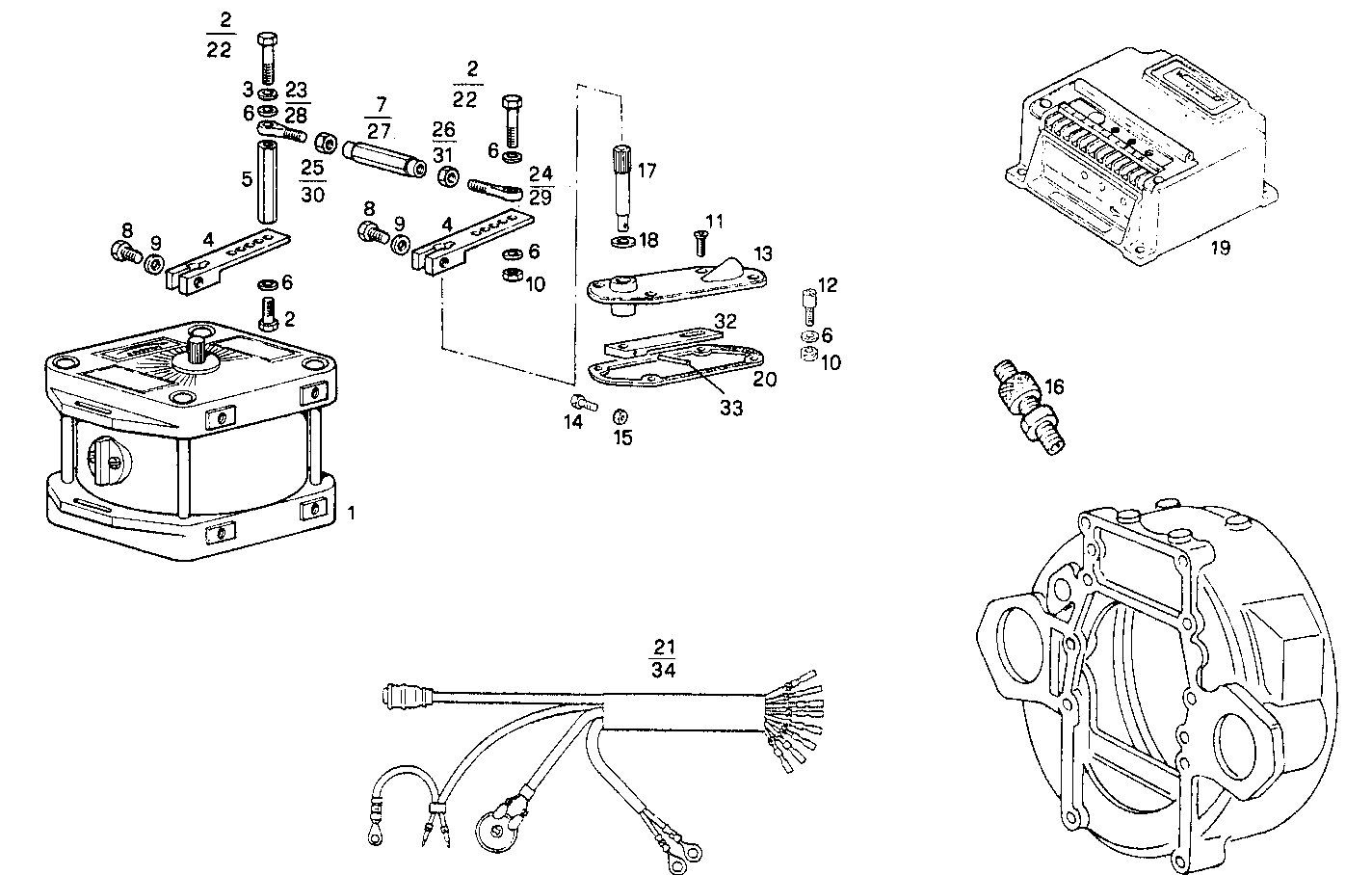

| Item |
Part number |
Description |
|
1 |
8107492 |
INJECTION CONTROL ASSY |
|
2 |
16602214 |
SCREW |
|
3 |
17094504 |
WASHER Ø5,3X10 MM |
|
4 |
8108603 |
LEVER |
|
5 |
8108656 |
SPACING BAR |
|
6 |
17094714 |
WASHER Ø6,4X12 MM |
|
7 |
8118606 |
TIE ROD |
|
8 |
10902321 |
HEXAGON BOLT M6X18 MM (8.8) |
|
10 |
17152621 |
NUT M5X0,8 |
|
11 |
8109360 |
SCREW M5X12 |
|
12 |
8108604 |
PIN |
|
13 |
8007452 |
COVER ASSY |
|
14 |
8108715 |
SCREW |
|
15 |
17037721 |
NUT M5X0,8 |
|
16 |
8018673 |
PICK-UP |
|
17 |
8109731 |
PIN |
|
18 |
8109732 |
WASHER |
|
19 |
8103081 |
INJECTION CONTROL |
|
20 |
8009910 |
GASKET |
|
21 |
8108631 |
ENGINE HARNESS ASSY [up to 06-95] |
|
22 |
8016470 |
SCREW M5 |
|
23 |
8114008 |
BANJO COUPLING RIGHT [up to 10-93] |
|
24 |
8114009 |
TIE ROD LEFT [up to 10-93] |
|
25 |
8109397 |
NUT RIGHT [up to 10-93] |
|
26 |
8109398 |
NUT LEFT [up to 10-93] |
|
27 |
8016413 |
TIE ROD M6X1 [up to 06-95] |
|
28 |
8016587 |
TIE ROD RIGHT [up to 06-95] |
|
29 |
8016588 |
TIE ROD LEFT [up to 06-95] |
|
30 |
15896240 |
NUT M6 - RIGHT [up to 06-95] |
|
31 |
10789640 |
NUT M6 - LEFT [up to 06-95] |
|
32 |
8108601 |
LEVER |
|
33 |
14158570 |
DOWEL PIN Ø2,3 MM |
|
34 |
8022927 |
ENGINE HARNESS |
