8361SRi26.07

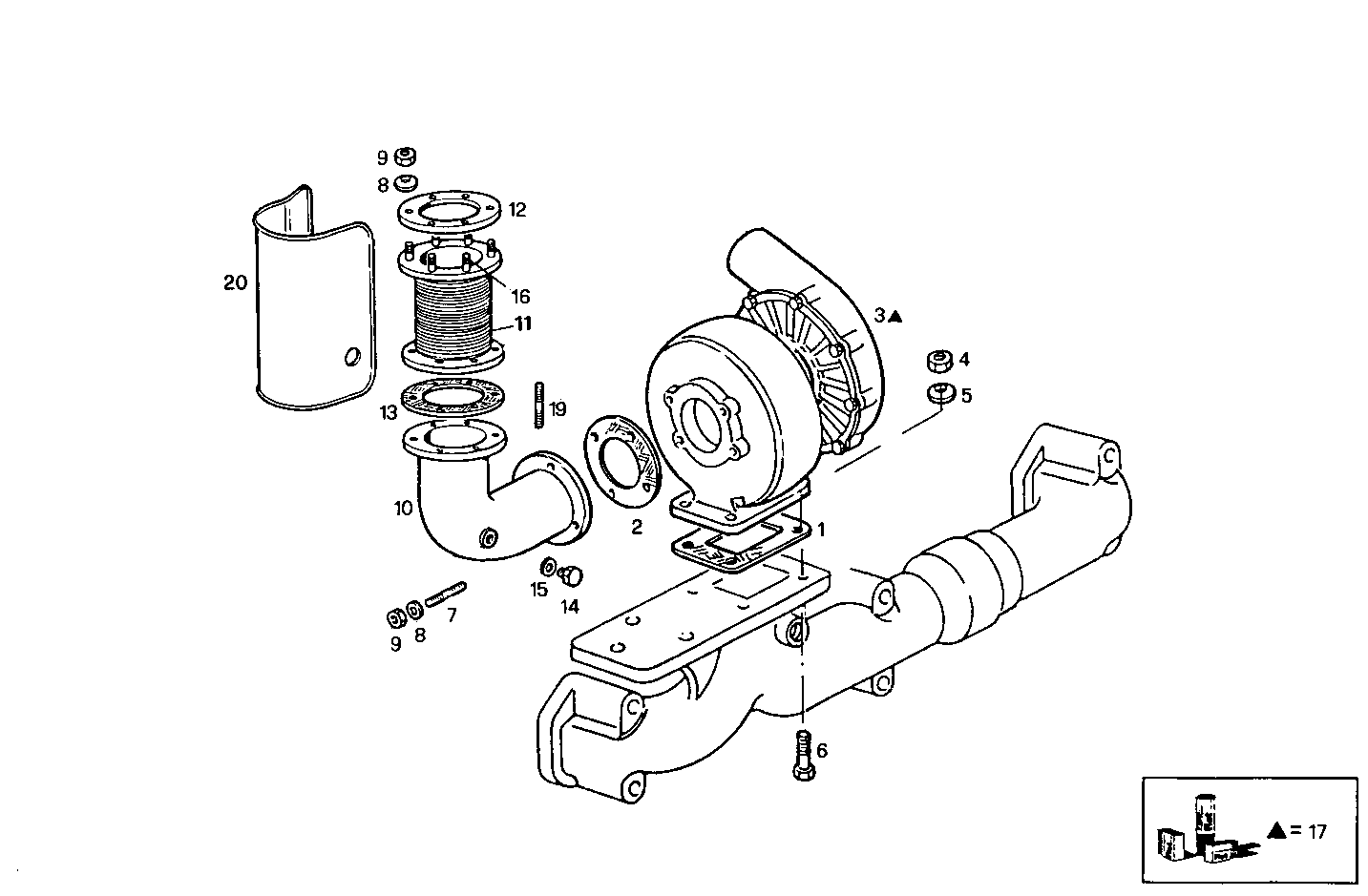

2400.019 TURBOCHARGER
| Item | Part number | Description |
|---|---|---|
| 1 | 4632123 | GASKET |
| 2 | 4729026 | GASKET |
| 3 | 8114138 | TURBOCHARGER ASSY HOLSET |
| 4 | 17038121 | HEXAGON NUT M10 |
| 5 | 17095004 | WASHER Ø10X18X2 MM |
| 6 | 16607924 | HEXAGON BOLT M10X1,5X40 MM |
| 7 | 16729424 | STUD M8X1,25X25 |
| 8 | 16665504 | WASHER Ø8 MM |
| 9 | 17037931 | HEXAGON NUT M8X1,25 |
| 10 | 8105001 | EXHAUST ELBOW |
| 11 | 4935378 | EXHAUST BELLOWS |
| 12 | 4919183 | FLANGE |
| 13 | 8009606 | GASKET |
| 14 | 16992211 | THREADED PLUG M12X1,5 |
| 15 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 16 | 13516921 | STUD M8X12X22 MM |
| 17 | 8090147 | KIT-TURBOCHARGER HOLSET |
| 19 | 16729524 | STUD M8X1,25X30 |
| 20 | 8114271 | PROTECTION |
