8361SRi26.07

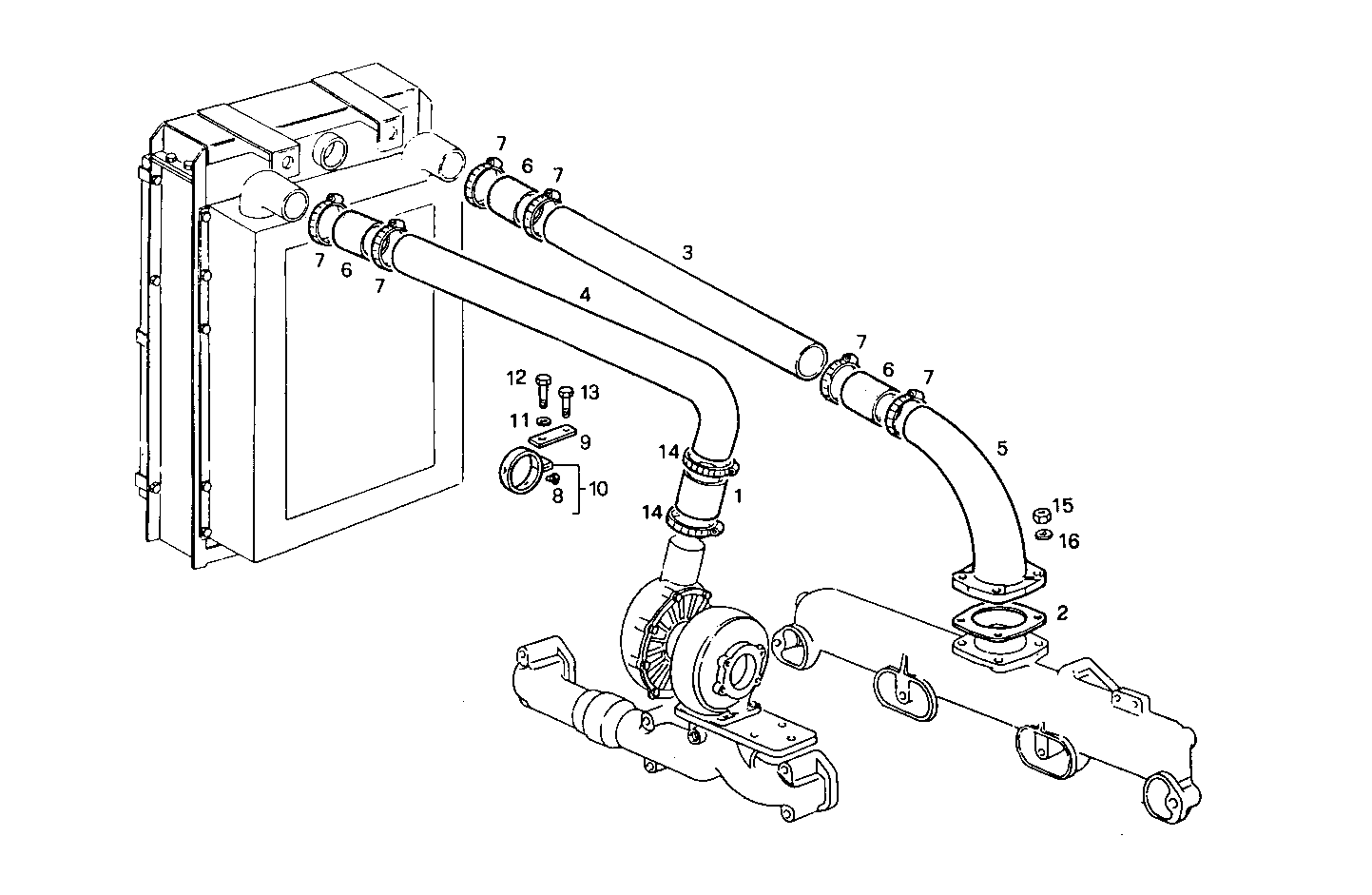

2420.018/02 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 98421377 | RUBBER SLEEVE Ø51 MM |
| 2 | 98412100 | GASKET |
| 3 | 8114274 | AIR MANIFOLD |
| 4 | 8114273 | AIR MANIFOLD |
| 5 | 8107649 | INTAKE ELBOW |
| 6 | 8107383 | RUBBER SLEEVE Ø60 MM |
| 7 | 17765091 | CLIP Ø60/80 MM |
| 8 | 4568427 | RUBBER PAD |
| 9 | 8114321 | RETAINER |
| 10 | 4936328 | CLIP ASSY |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 15004021 | HEXAGON BOLT M10X1,25X25 MM |
| 13 | 11307030 | HEXAGON BOLT M10X1,25X40 |
| 14 | 98490783 | CLIP Ø55-65 MM |
| 15 | 17037931 | HEXAGON NUT M8X1,25 |
| 16 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
