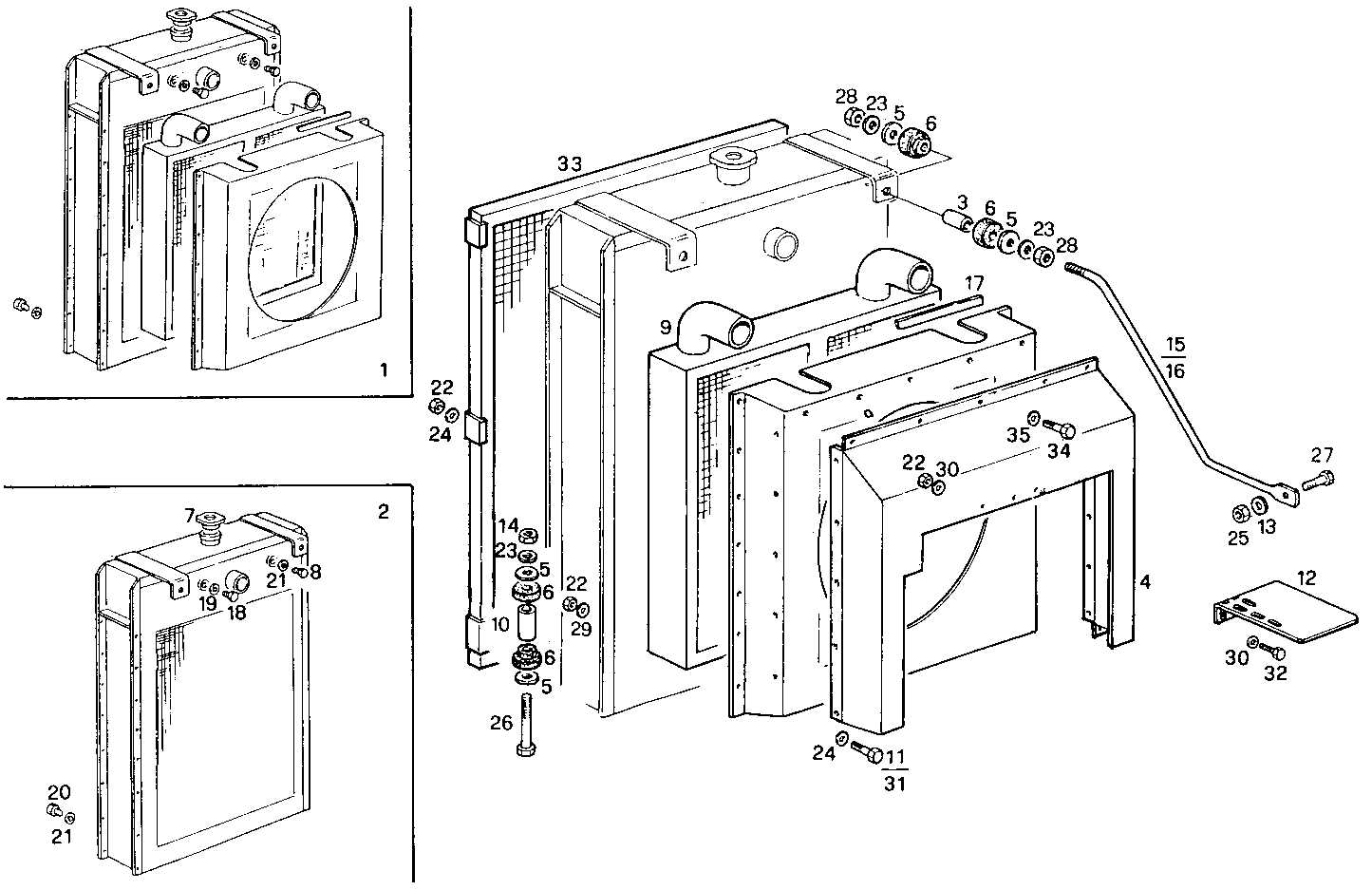

| Item |
Part number |
Description |
|
1 |
8018494 |
WATER RADIATOR ASSY |
|
2 |
8007076 |
WATER RADIATOR |
|
3 |
741571 |
SPACING BAR Ø10X17 MM SP=2,3 |
|
4 |
8014848 |
PROTECTION |
|
5 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
6 |
741569 |
RUBBER LUG |
|
7 |
8107632 |
RADIATOR PLUG |
|
8 |
8105096 |
PLUG |
|
9 |
8018492 |
AIR/AIR INTERCOOLER |
|
10 |
8108634 |
SPACING BAR |
|
11 |
16605424 |
SCREW M8X16 MM (8.8) |
|
12 |
8014327 |
PROTECTION |
|
13 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
14 |
17038421 |
HEXAGON NUT M12 (8) |
|
15 |
8114381 |
TIE ROD LEFT |
|
16 |
8114382 |
TIE ROD RIGHT |
|
17 |
8008159 |
GASKET |
|
18 |
10300511 |
LOCK PLUG M12X1,5 |
|
19 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
20 |
10300611 |
LOCK PLUG M14X1,5 |
|
21 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
22 |
17037931 |
HEXAGON NUT M8X1,25 |
|
23 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
24 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
25 |
17038221 |
HEXAGON NUT M10 |
|
26 |
16610724 |
SCREW M12X1,75X70 MM |
|
27 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
28 |
17038621 |
NUT M12 |
|
29 |
17094914 |
WASHER 8x16 |
|
30 |
17089774 |
SPRING WASHER Ø8,4X22 MM SP=2,4 MM |
|
31 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
33 |
8107633 |
PROTECTION |
|
34 |
16603624 |
HEXAGON BOLT M6X16 MM (8.8) |
|
35 |
17088974 |
SPRING WASHER Ø6X18X1,4 MM |
