8361SRi40.00

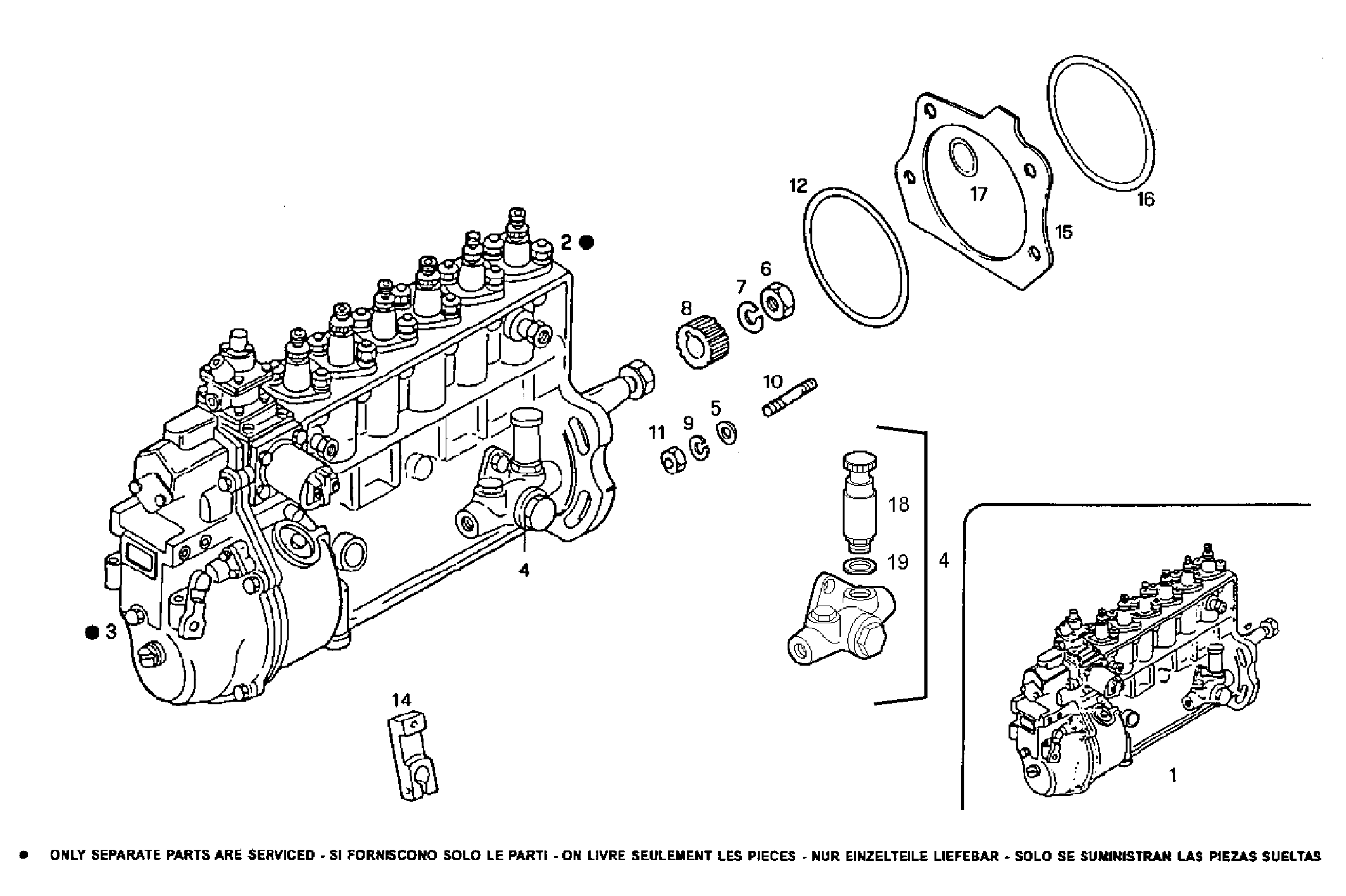

1400.275 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8023939 | INLINE INJECT.PUMP ASSY BOSCH |
| 4 | 8017832 | FUEL PUMP ASSY |
| 5 | 759850 | WASHER Ø10X21X2 MM |
| 6 | 4750524 | NUT |
| 7 | 4750525 | WASHER |
| 8 | 4816287 | BUSH 156Ø40' |
| 9 | 17090274 | WASHER Ø10X20 MM |
| 10 | 13449824 | STUD M10X1,25X15 MM |
| 11 | 17038221 | HEXAGON NUT M10 |
| 12 | 98429284 | O-RING |
| 14 | 8023697 | LEVER |
| 15 | 8023762 | SPACING BAR |
| 16 | 42492884 | O-RING |
| 17 | 61317701 | O-RING Ø3,2X10 MM |
| 18 | 8011481 | HAND PUMP |
| 19 | 4858609 | WASHER Ø16X22 MM SP=1,5 MM |
