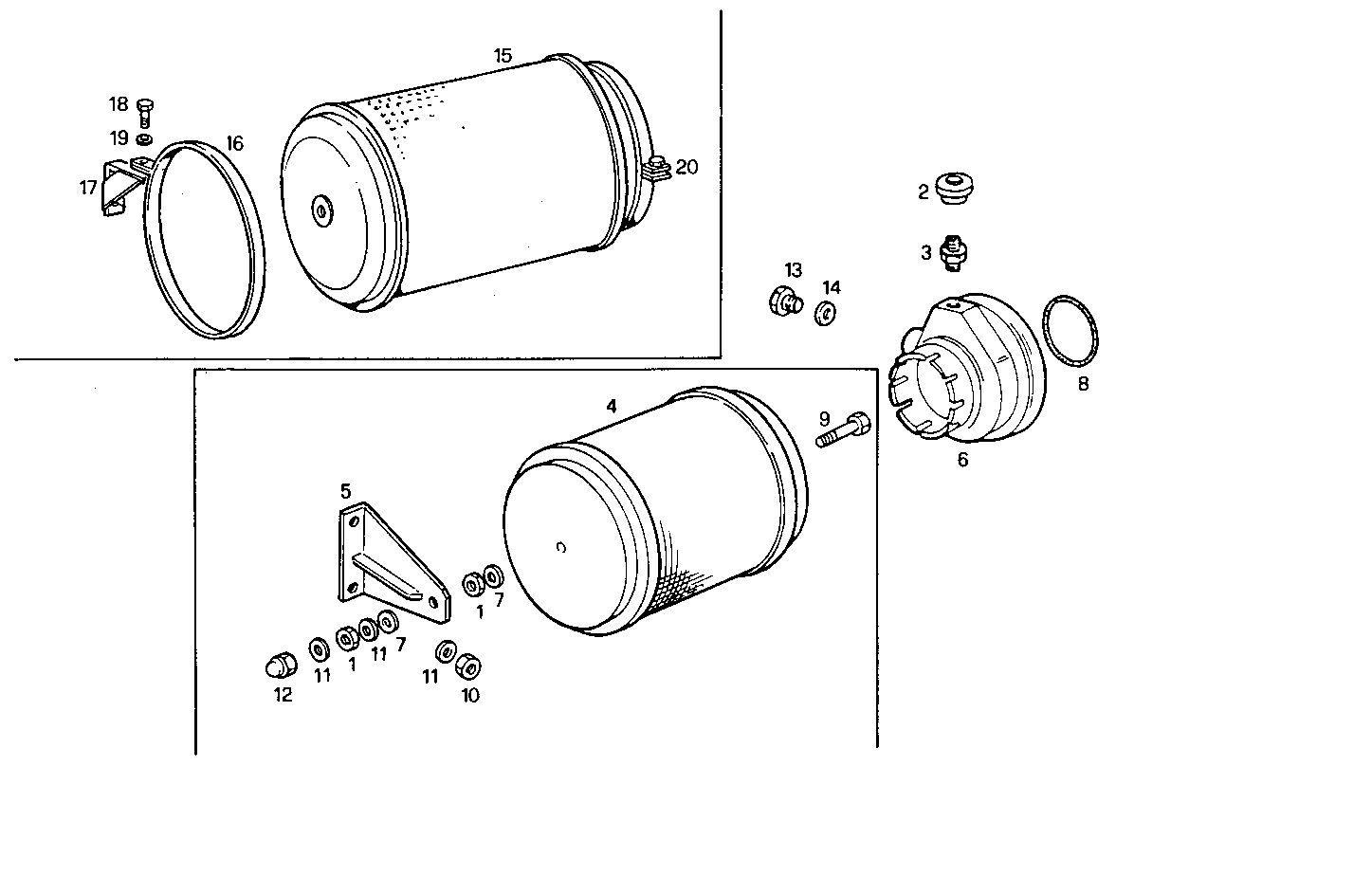

| Item |
Part number |
Description |
|
1 |
16102311 |
HEXAGON NUT M8 |
|
2 |
2427063 |
AIR PRESSURE GAUGE |
|
3 |
8009522 |
PIPE SOCKET |
|
4 |
8105547 |
AIR CLEANER ASSY |
|
5 |
8112215 |
RETAINER [up to ...] |
|
6 |
8106155 |
AIR MANIFOLD |
|
7 |
12644321 |
WASHER Ø10X35 MM |
|
8 |
17285081 |
O-RING Ø67,94 MM SP=2,62 MM |
|
9 |
16143821 |
SCREW |
|
10 |
17037931 |
HEXAGON NUT M8X1,25 |
|
11 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
12 |
8101714 |
NUT M8X1,25 |
|
13 |
16992211 |
THREADED PLUG M12X1,5 |
|
14 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
15 |
8015887 |
AIR CLEANER ASSY |
|
16 |
8017225 |
CLIP DIA 133 [from ...] |
|
17 |
8018798 |
RETAINER [from ...] |
|
18 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
20 |
17770599 |
CLIP DIA 120 |
