8361SRM32.01

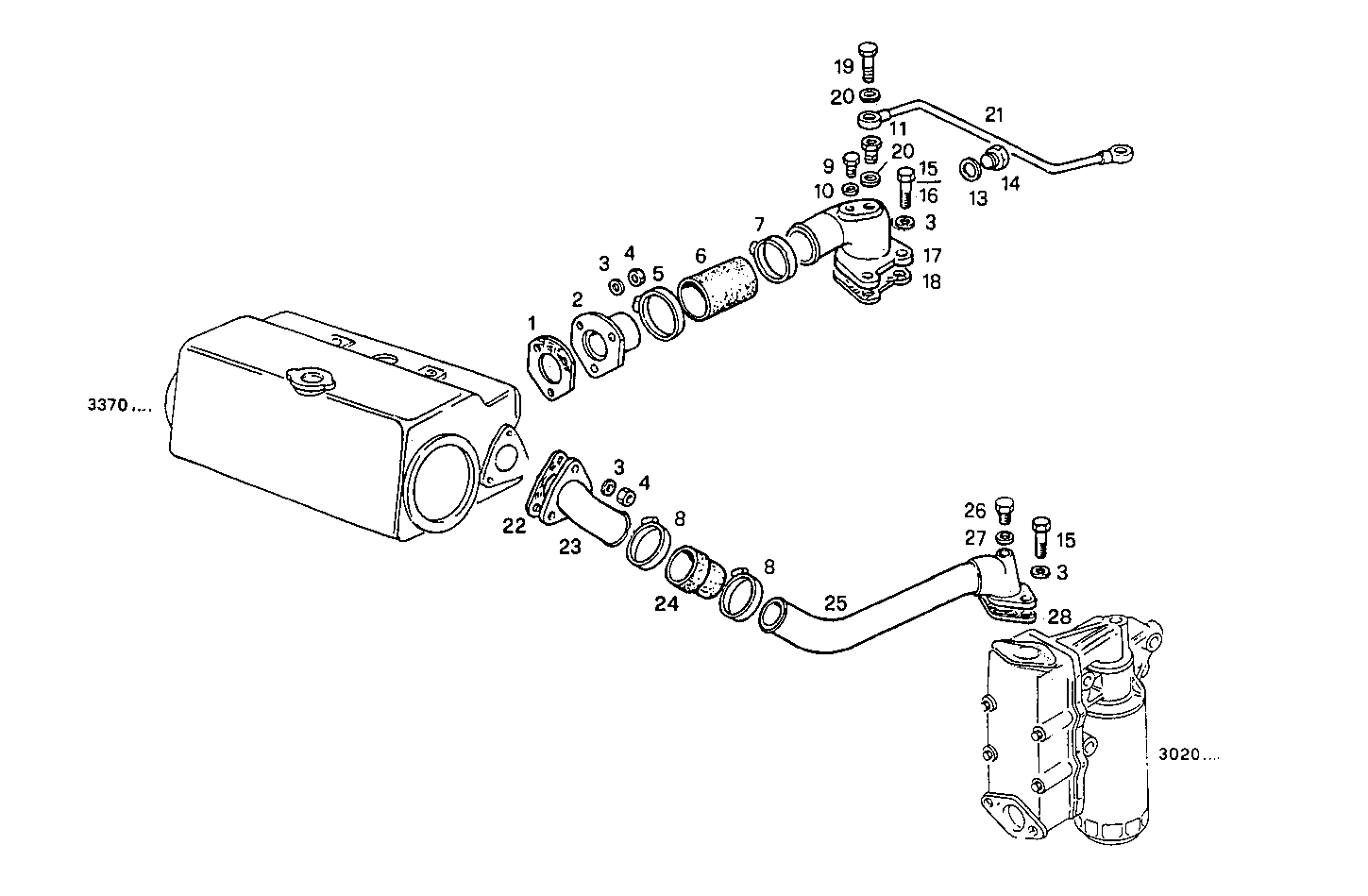

3210.235/02 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 4533087 FLAT ENGINE GASKET
2 4918819 WATER PIPE
3 17089471 SPRING WASHER Ø16X8 MM SP=1,4 MM
4 17037931 HEXAGON NUT M8X1,25
5 17765193 CLIP Ø70/90 MM
6 8110485 RUBBER SLEEVE
7 17765093 CLIP Ø60/80 MM
8 17764993 CLIP Ø50/70 MM
9 16992440 THREADED PLUG M16X1,5
10 4858609 WASHER Ø16X22 MM SP=1,5 MM
11 8100963 PIPE SOCKET
13 10263460 WASHER Ø22X28X1,5 MM
14 16992640 PLUG M22X1,5
15 16605624 HEXAGON BOLT M8X25 MM (8.8)
16 16612924 SCREW
17 8103967 WATER PIPE
18 8103968 GASKET
19 4864080 SCREW CONNECTOR M10X1,25
20 4858606 GASKET Ø10X14X1 MM
21 8023757 WATER PIPE
22 4918994 GASKET
23 4934309 WATER PIPE
24 98432897 WATER HOSE
25 8105499 WATER PIPE
27 16508260 WASHER Ø16X20 MM
28 98412396 GASKET
