8361SRM32.01

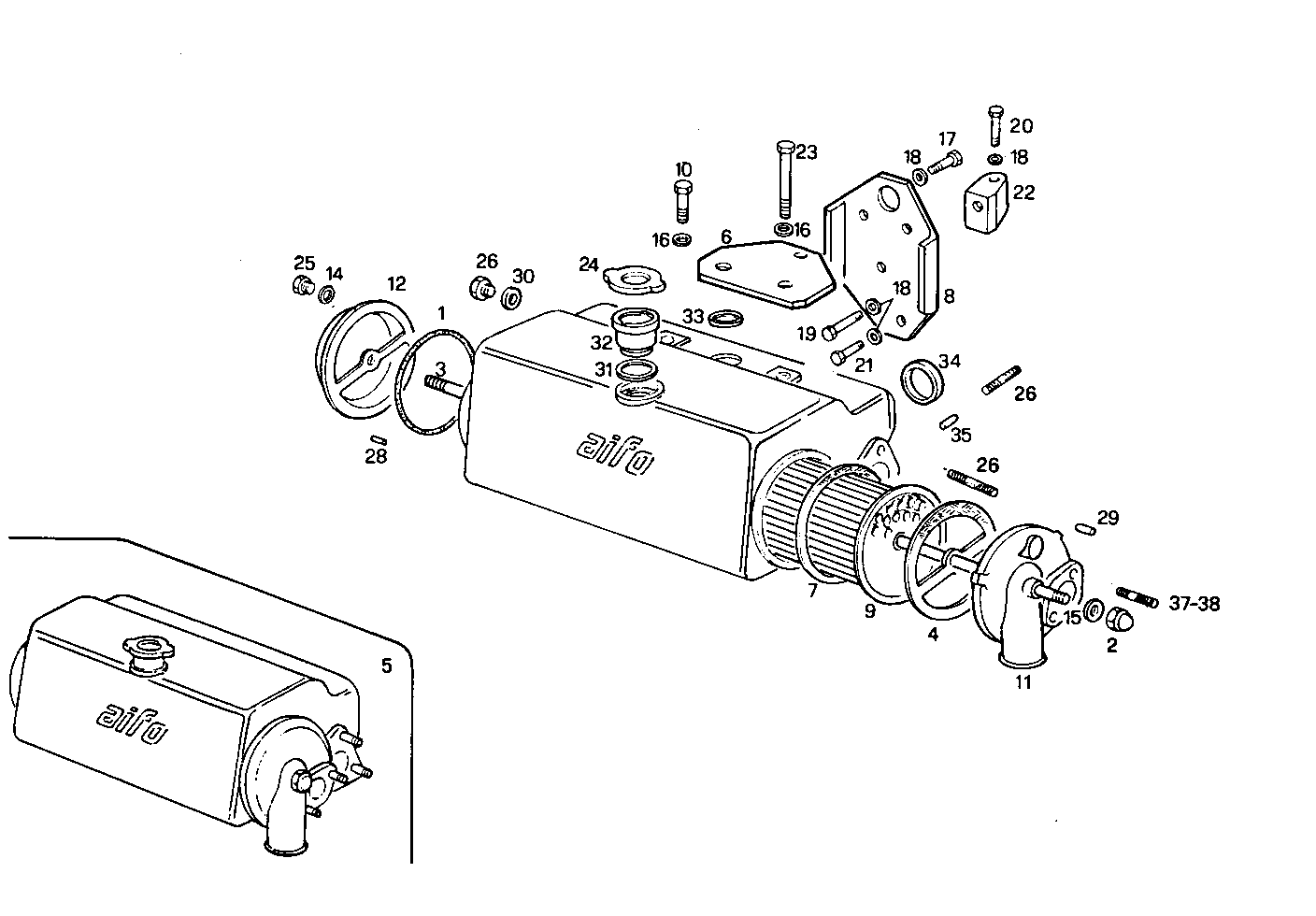

3370.009 FRESH WATER - SEA WATER HEAT EXCHANGER

Iveco/FPT FRESH WATER - SEA WATER HEAT EXCHANGER

Item Part number Description
1 4918846 O-RING
2 14056240 NUT M12X1,25
3 4918908 TIE ROD
4 4918921 GASKET
5 8077052 WATER/SEA WATER HEAT EXCH ASSY
6 8110556 SUPPORT
7 4930157 GASKET
8 8110555 RETAINER
9 4929632 TUBE STACK
10 15971821 SCREW M10X1,25X100
11 8015958 HEAT EXCHANG.COVER FRONT
12 4934733 HEAT EXCHANG.COVER REAR
14 10260160 SEAL GASKET Ø10X14 MM SP=1 MM
15 10298460 SEAL GASKET Ø12X18 MM SP=1,5 MM
16 17090474 SPRING WASHER Ø10X27 MM SP=2,5
17 15004021 HEXAGON BOLT M10X1,25X25 MM
18 17090174 SPRING WASHER Ø10X20 MM
19 15970521 HEXAGON BOLT M10X20 MM
20 11343721 HEXAGON BOLT M10X65 MM
21 11306921 SCREW M10X1,25X30
22 4723225 CHOCK
23 15973121 HEXAGON BOLT M10X180 MM
24 4930462 PLUG
25 11903140 PLUG M10X1,25
26 10305140 LOCK PLUG M22X1,5
28 14163670 DOWEL PIN Ø4 MM
29 14163870 PIN
30 10279560 SEAL GASKET Ø22,2 MM
31 10265360 SEAL GASKET Ø40X48 MM SP=1,5 MM
32 8102030 FILLER NECK
33 14282770 LOCK PLUG Ø36 MM
34 4918844 WASHER
35 14161370 PIN
37 13516821 STUD M8X12X20 MM
38 13517721 STUD M8X12X55 MM
