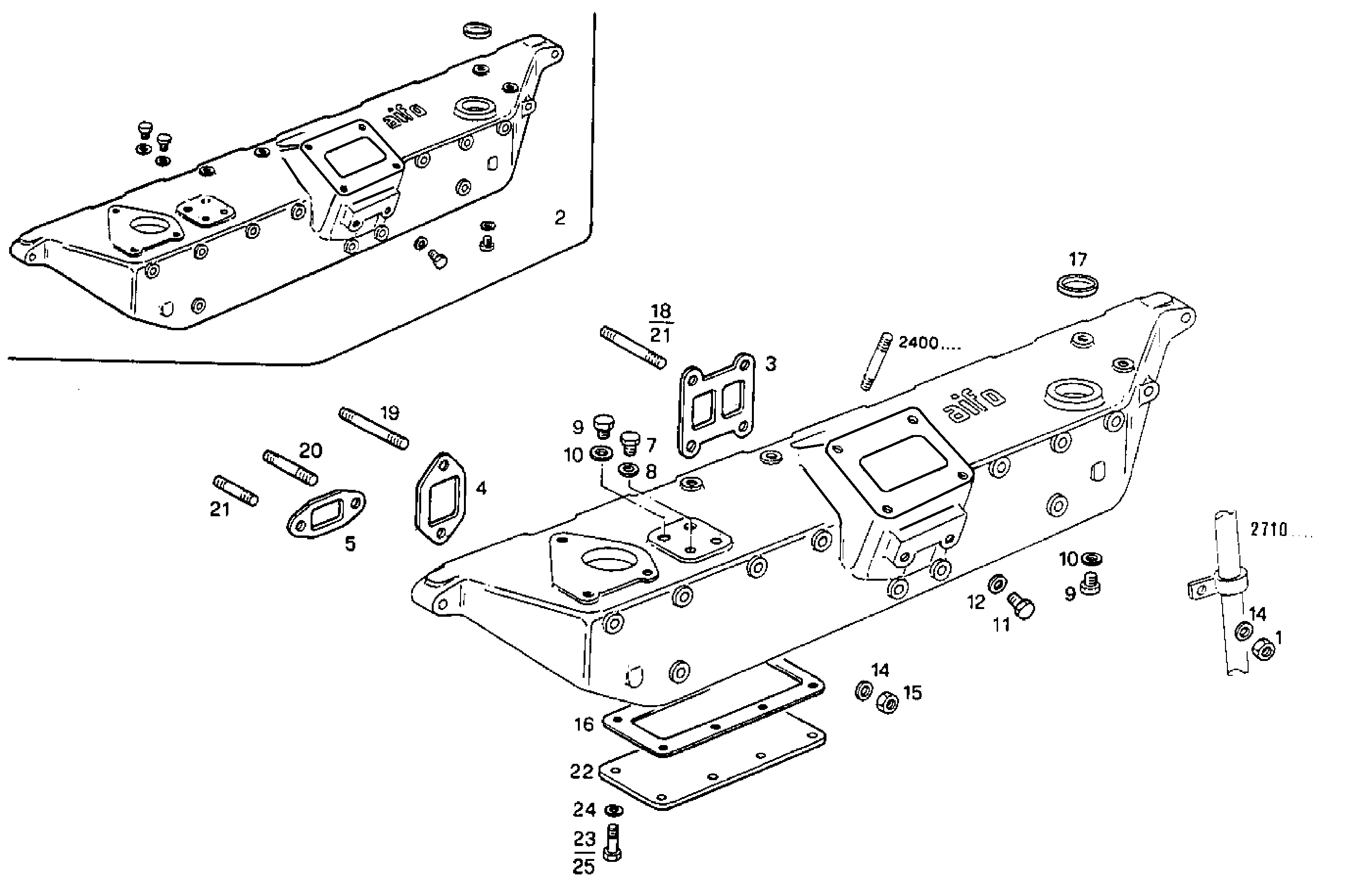

| Item |
Part number |
Description |
|
1 |
4934617 |
NUT |
|
2 |
8103674 |
COOLED EXHAUST MANIF. ASSY |
|
3 |
4818721 |
EXH. MANIFOLD GKT |
|
4 |
4818722 |
EXH. MANIFOLD GKT |
|
5 |
8009913 |
GASKET |
|
7 |
16992311 |
LOCK PLUG M14X1,5 |
|
8 |
4858608 |
SEAL GASKET dia.14x19,5x1,5 |
|
9 |
16992411 |
THREADED PLUG M16X1,5 |
|
10 |
4858609 |
WASHER Ø16X22 MM SP=1,5 MM |
|
11 |
16992211 |
THREADED PLUG M12X1,5 |
|
12 |
10298460 |
SEAL GASKET Ø12X18 MM SP=1,5 MM |
|
14 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
15 |
17038221 |
HEXAGON NUT M10 |
|
16 |
4934307 |
EXH. MANIFOLD GKT |
|
17 |
14282770 |
LOCK PLUG Ø36 MM |
|
18 |
13953821 |
STUD M10X15X120 |
|
19 |
13953221 |
STUD M10X1,5X90 |
|
20 |
13450121 |
STUD M10X15X50 |
|
21 |
13449721 |
STUD M10X15X30 |
|
22 |
8104304 |
COVER |
|
23 |
16043421 |
HEXAGON BOLT M8X20 MM |
|
24 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
25 |
16043621 |
HEXAGON BOLT M8X25 MM |
