8361SRM32.40

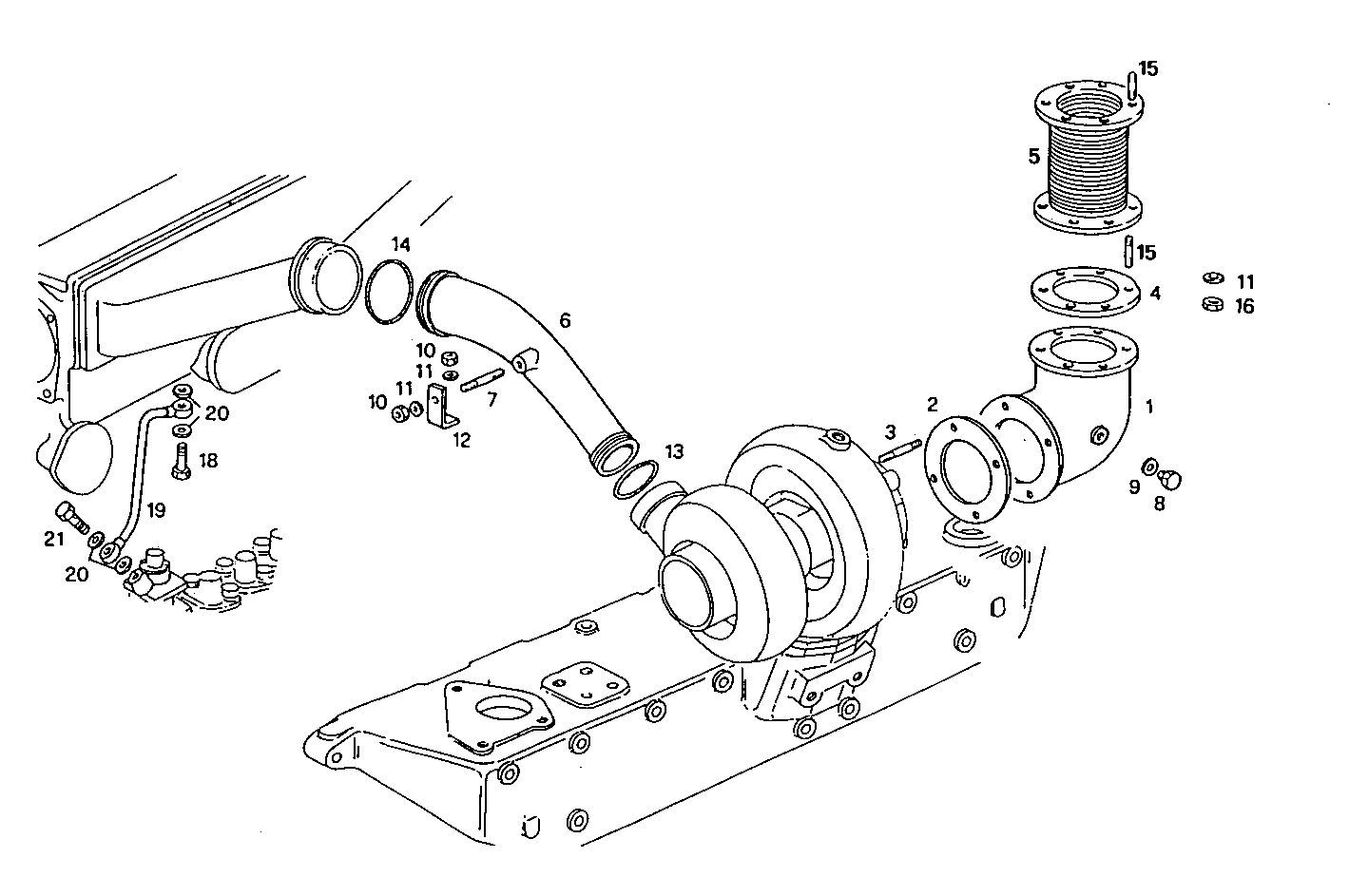

2420.054 SUPERCHARGING LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8109452 | EXHAUST ELBOW |
| 2 | 8111833 | GASKET |
| 3 | 13516821 | STUD M8X12X20 MM |
| 4 | 8009600 | GASKET |
| 5 | 8101671 | EXHAUST BELLOWS |
| 6 | 8104392 | AIR MANIFOLD |
| 7 | 16729224 | STUD M8X16 MM |
| 8 | 16992240 | THREADED PLUG M12X1,5 |
| 9 | 4858607 | WASHER Ø12X17 MM SP=1,5 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 17090174 | SPRING WASHER Ø10X20 MM |
| 12 | 8105271 | RETAINER |
| 13 | 17296181 | O-RING Ø59,69X5,33 MM |
| 14 | 17296581 | O-RING Ø72,39X5,33 MM |
| 15 | 13449524 | STUD M10X1,25X15X25 |
| 16 | 17038121 | HEXAGON NUT M10 |
| 18 | 8107452 | SCREW CONNECTOR |
| 19 | 8012641 | AIR PIPE/DUCT |
| 20 | 98474306 | WASHER Ø12X20 MM SP=1,9 MM |
| 21 | 4864082 | BANJO BOLT M12X1,5X25 MM |
