8361SRM32.41

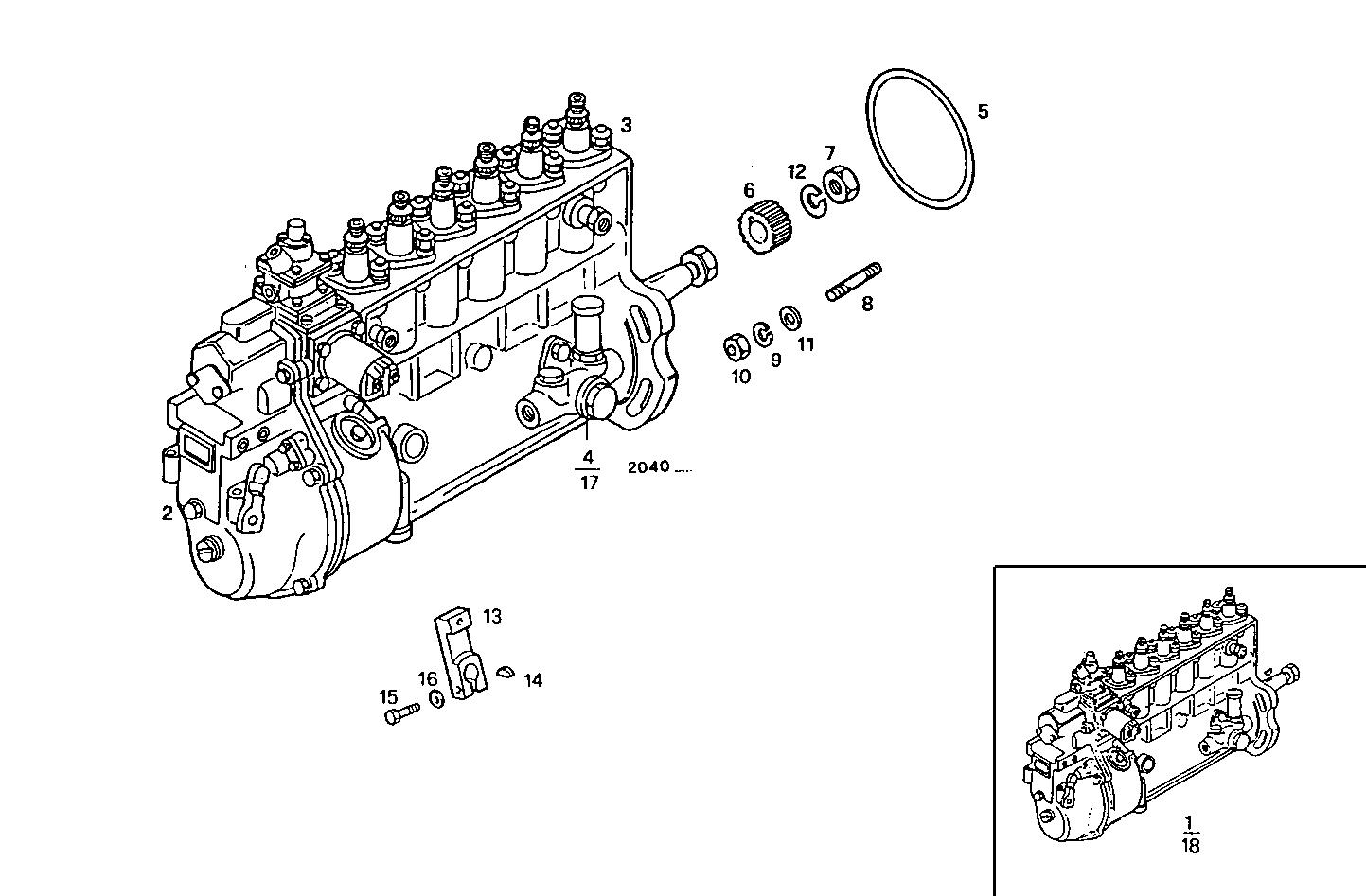

1400.306 INJECTION PUMP ASSY
| Item | Part number | Description |
|---|---|---|
| 1 | 8006777 | INLINE INJECT.PUMP ASSY W.ALTECNA |
| 4 | 8092651 | FUEL PUMP W. ALTECNA |
| 5 | 14456781 | O-RING SP=1,78 MM |
| 6 | 4816286 | BUSH 158� |
| 7 | 4750524 | NUT |
| 8 | 13449821 | STUD M10X1,25X15 MM |
| 9 | 17090274 | WASHER �10X20 MM |
| 10 | 17038221 | HEXAGON NUT M10 |
| 11 | 759850 | WASHER �10X21X2 MM |
| 12 | 4750525 | WASHER |
| 13 | 8108826 | LEVER |
| 14 | 8101048 | KEY 3X5X12,5 |
| 15 | 10977821 | HEXAGON BOLT M5X16 MM |
| 16 | 10571479 | SPRING WASHER �5 MM |
| 17 | 774884 | FUEL PUMP ASSY [up to ...] |
| 18 | 8016387 | INLINE INJECT.PUMP ASSY BOSCH |
