8361SRM32.41

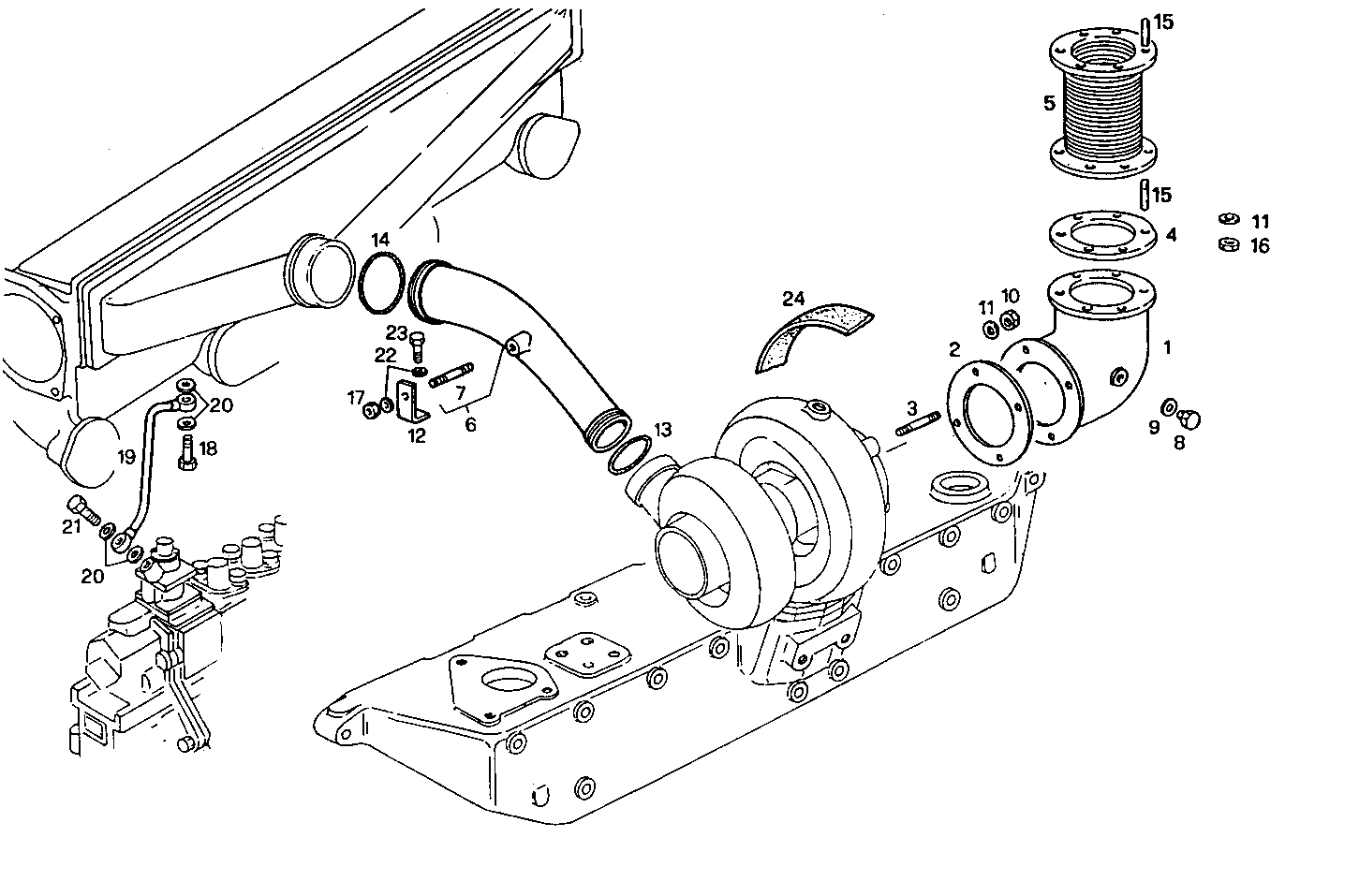

2420.180 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8109452 EXHAUST ELBOW
2 4772331 SEAL GASKET
3 13516821 STUD M8X12X20 MM
4 8009600 GASKET
5 8101671 EXHAUST BELLOWS
6 8104494 AIR MANIFOLD ASSY
7 16729224 STUD M8X16 MM
8 16992240 THREADED PLUG M12X1,5
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 17038221 HEXAGON NUT M10
11 17090174 SPRING WASHER Ø10X20 MM
12 8105271 RETAINER
13 17296181 O-RING Ø59,69X5,33 MM
14 17296581 O-RING Ø72,39X5,33 MM
15 13449524 STUD M10X1,25X15X25
16 17038121 HEXAGON NUT M10
17 17037931 HEXAGON NUT M8X1,25
18 8107452 SCREW CONNECTOR
19 8012641 AIR PIPE/DUCT
21 4864082 BANJO BOLT M12X1,5X25 MM
22 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
23 16605534 HEXAGON BOLT M8X20 MM (10.9)
24 8101542 PROTECTION
