8361SRM38.10

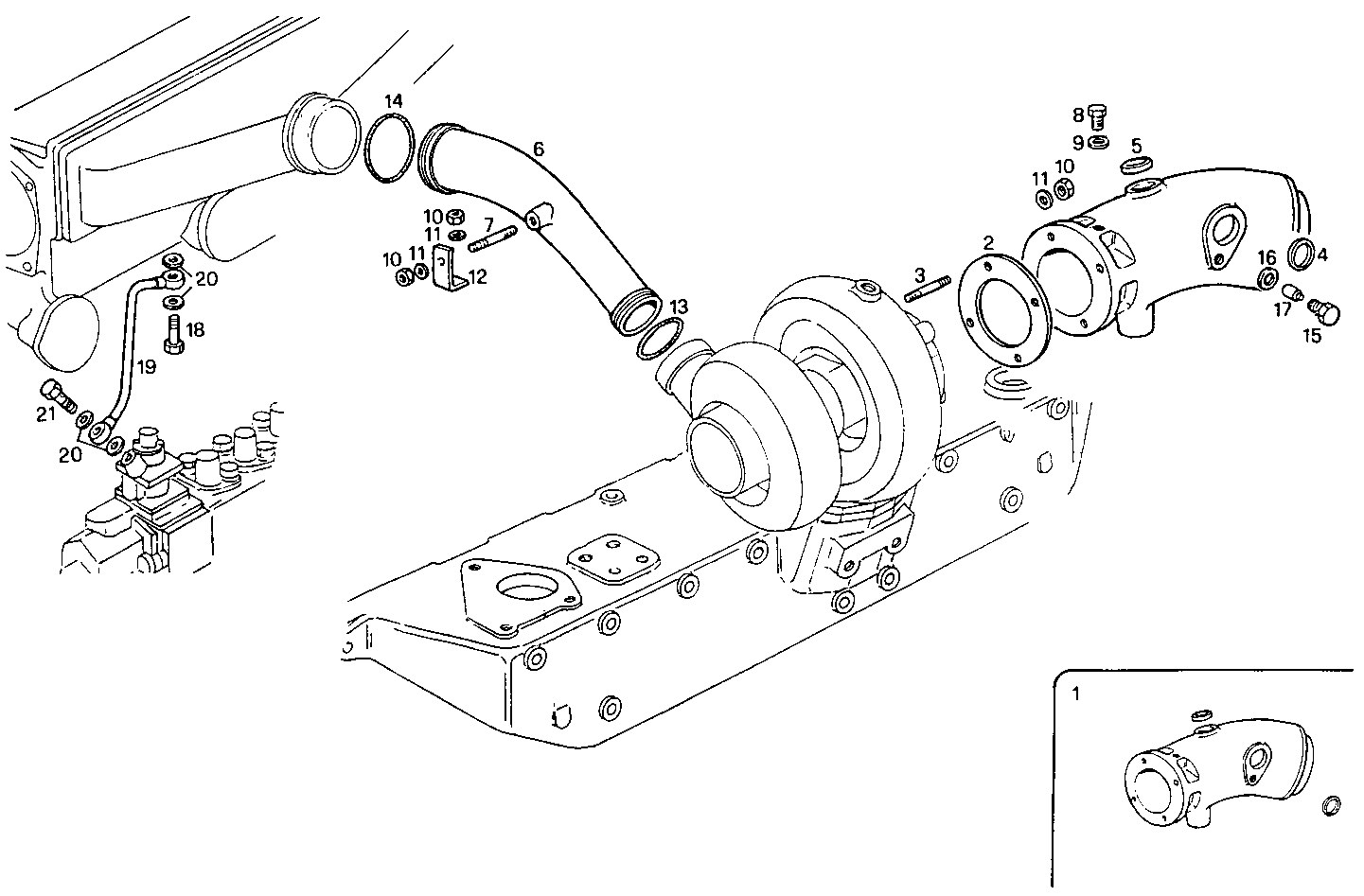

2420.039 SUPERCHARGING LINES

Iveco/FPT SUPERCHARGING LINES

Item Part number Description
1 8011125 EXHAUST COOL. ELBOW
2 8111833 GASKET
3 16729424 STUD M8X1,25X25
4 16991170 LOCK PLUG Ø36 MM
5 16990870 LOCK PLUG Ø28 MM
6 8110197 AIR MANIFOLD
7 16729224 STUD M8X16 MM
8 16992240 THREADED PLUG M12X1,5
9 4858607 WASHER Ø12X17 MM SP=1,5 MM
10 17037931 HEXAGON NUT M8X1,25
11 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
12 8010689 RETAINER
13 17296181 O-RING Ø59,69X5,33 MM
14 17296581 O-RING Ø72,39X5,33 MM
15 8105276 PLUG M16
16 4858609 WASHER Ø16X22 MM SP=1,5 MM
17 8105277 SACRIFICAL ANODE Ø14 MM
18 8107452 SCREW CONNECTOR
19 8012641 AIR PIPE/DUCT
21 4864082 BANJO BOLT M12X1,5X25 MM
