8361SRM38.10

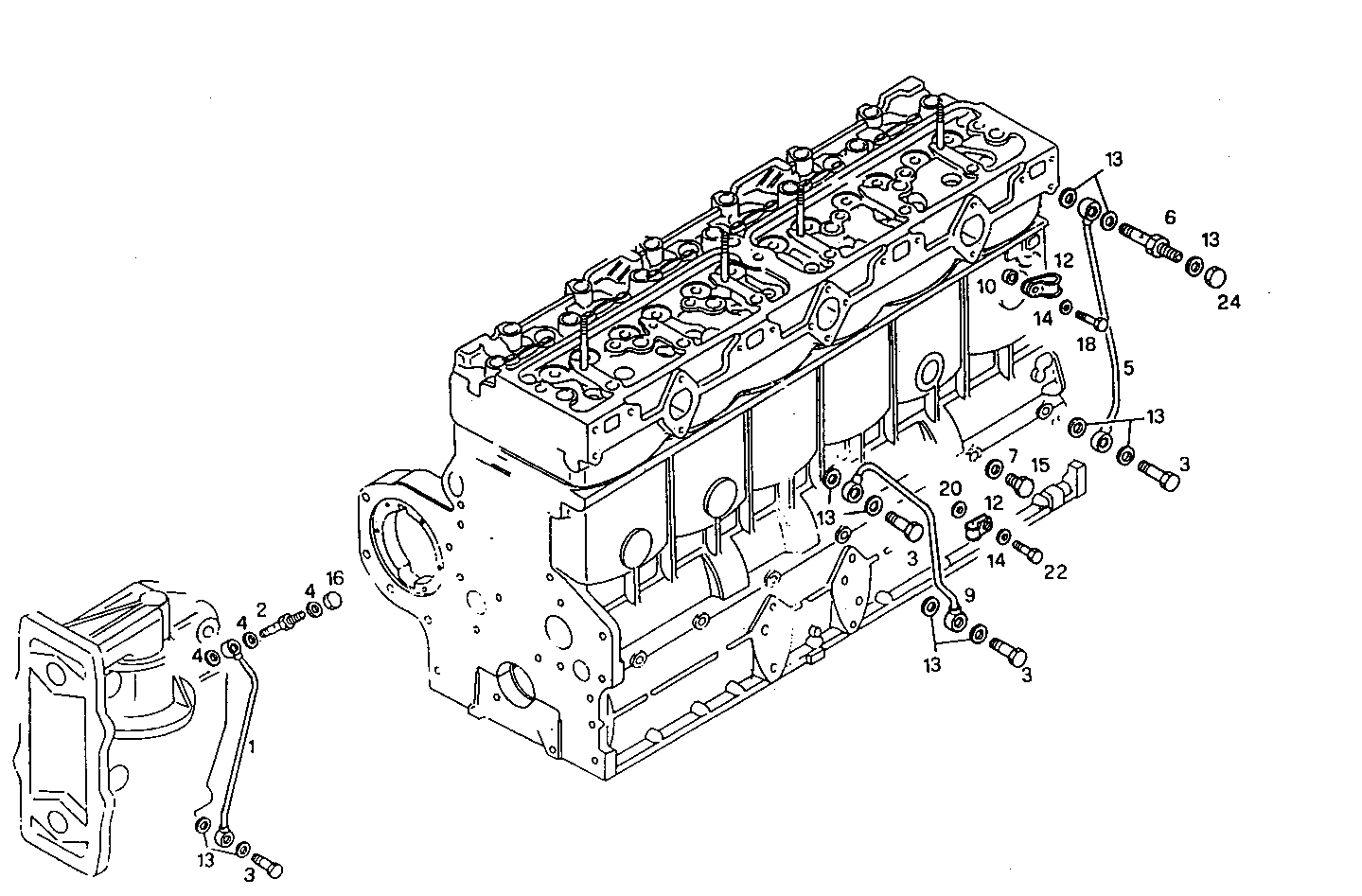

3010.047/01 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8014822 | OIL LINE |
| 2 | 11901611 | PIPE SOCKET |
| 3 | 4864080 | SCREW CONNECTOR M10X1,25 |
| 4 | 4858605 | WASHER �8X12 MM |
| 5 | 98427907 | OIL LINE |
| 6 | 98451916 | PIPE SOCKET |
| 7 | 10298360 | SEAL GASKET �10X16 MM SP=1 MM |
| 9 | 98427899 | OIL LINE |
| 10 | 13606011 | SPACER SP=8,5 MM |
| 12 | 10449890 | PIPE CLIP �53 MM |
| 13 | 4858606 | GASKET �10X14X1 MM |
| 14 | 11193871 | WASHER �8X16X1,4 MM |
| 15 | 11903111 | LOCK PLUG M10X1,25 |
| 16 | 11902017 | LOCK PLUG M8 |
| 18 | 16043924 | SCREW M8X35 |
| 20 | 12646701 | WASHER �8X20 MM |
| 22 | 16043324 | HEXAGON BOLT M8X18 MM |
| 24 | 38827772 | REAR SPRING |
